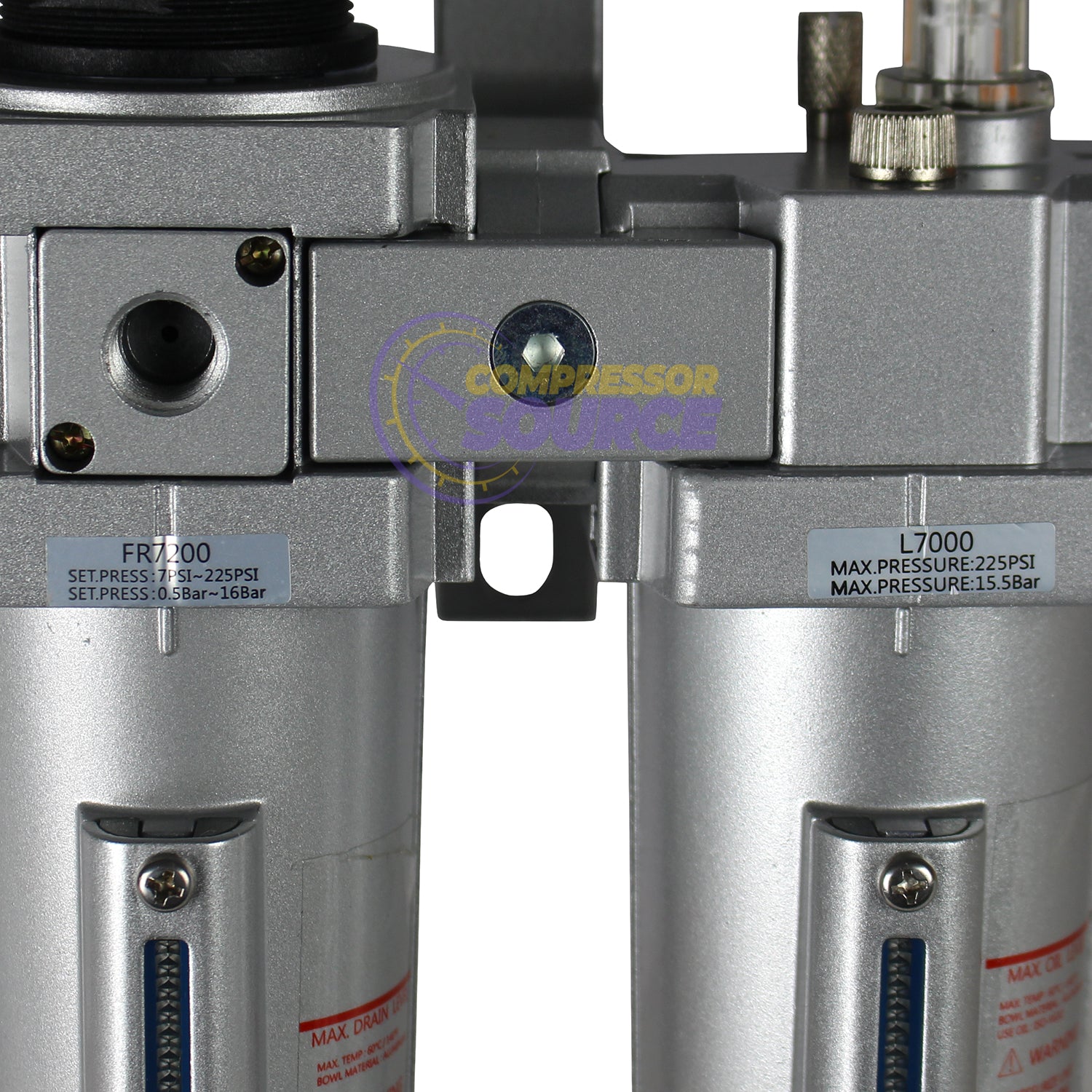

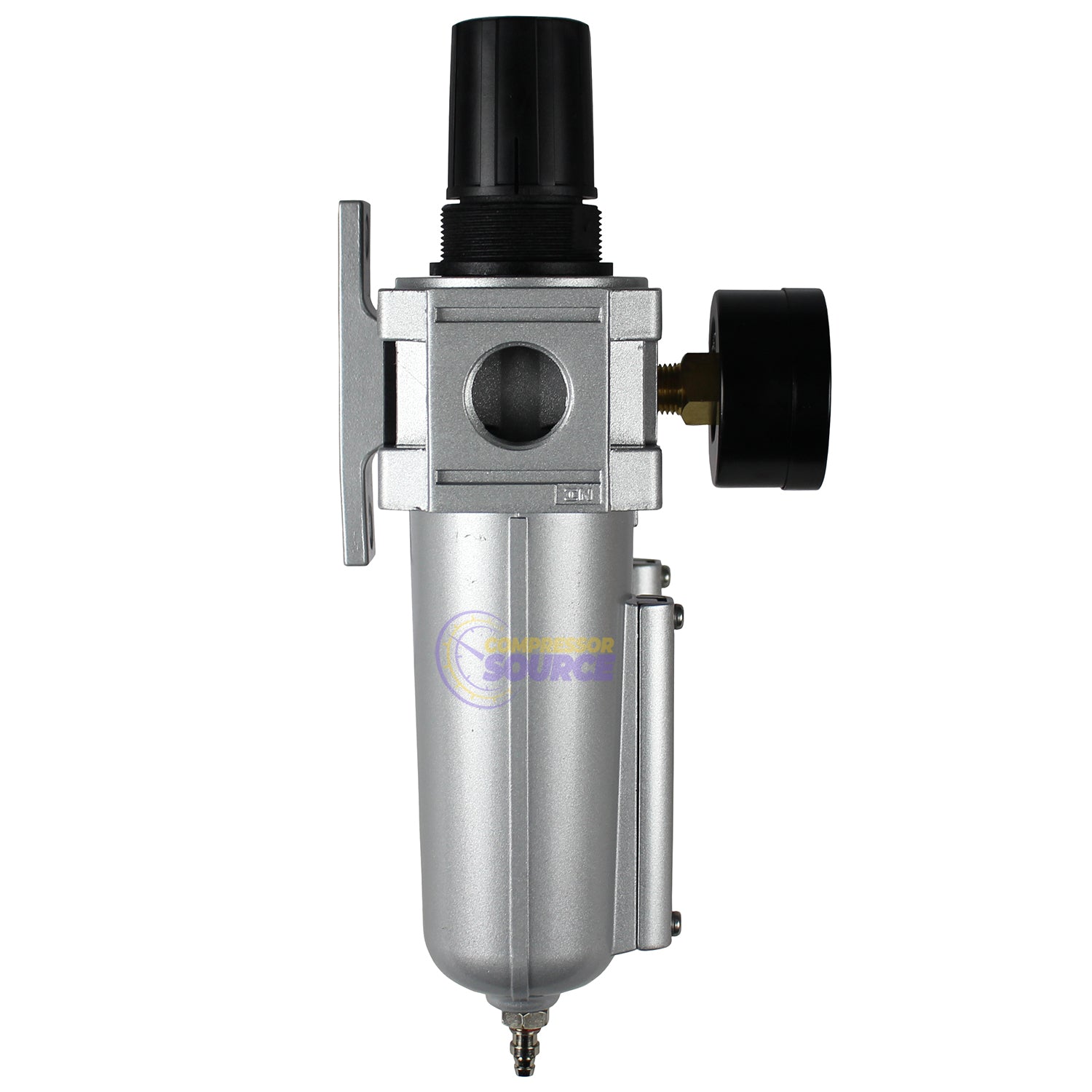

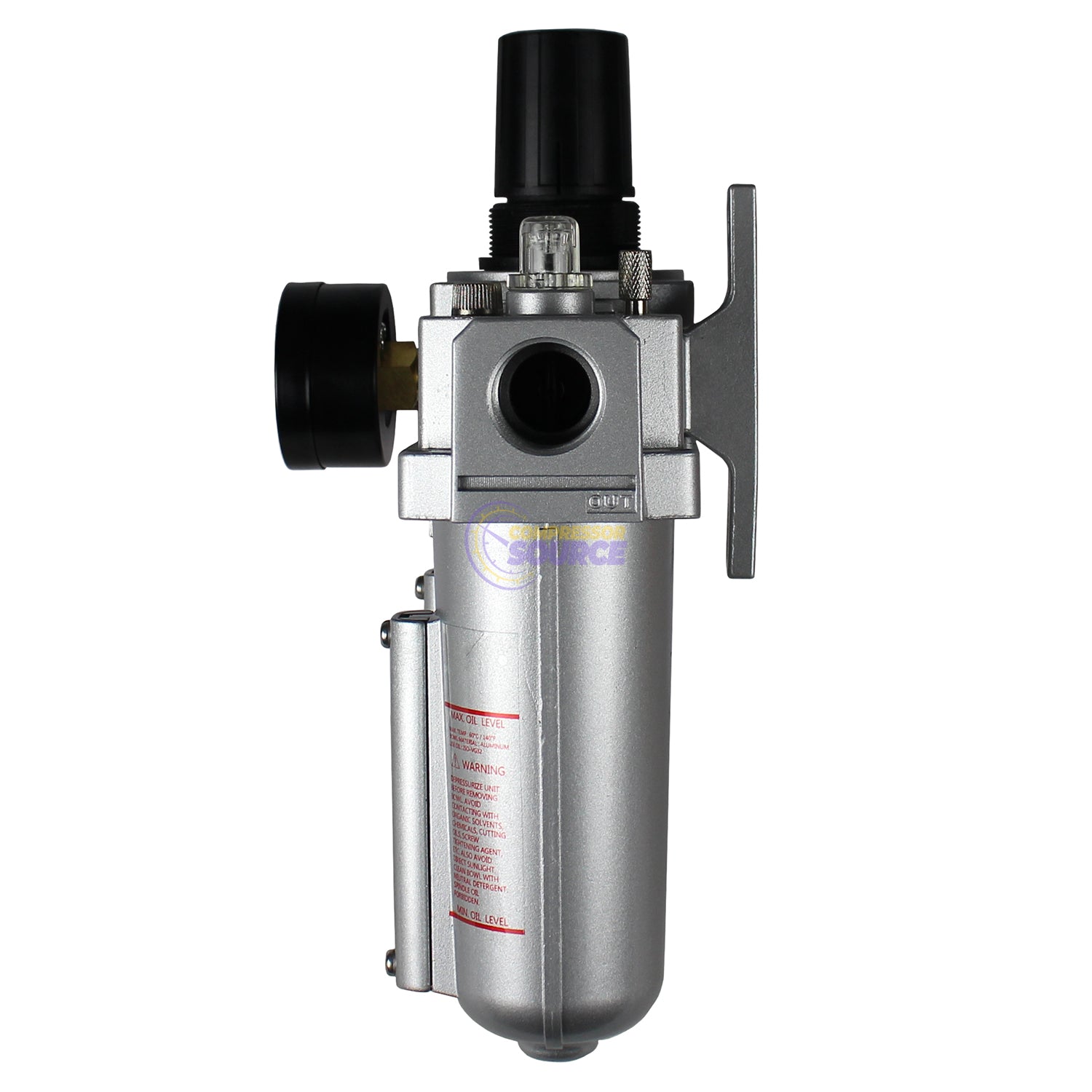

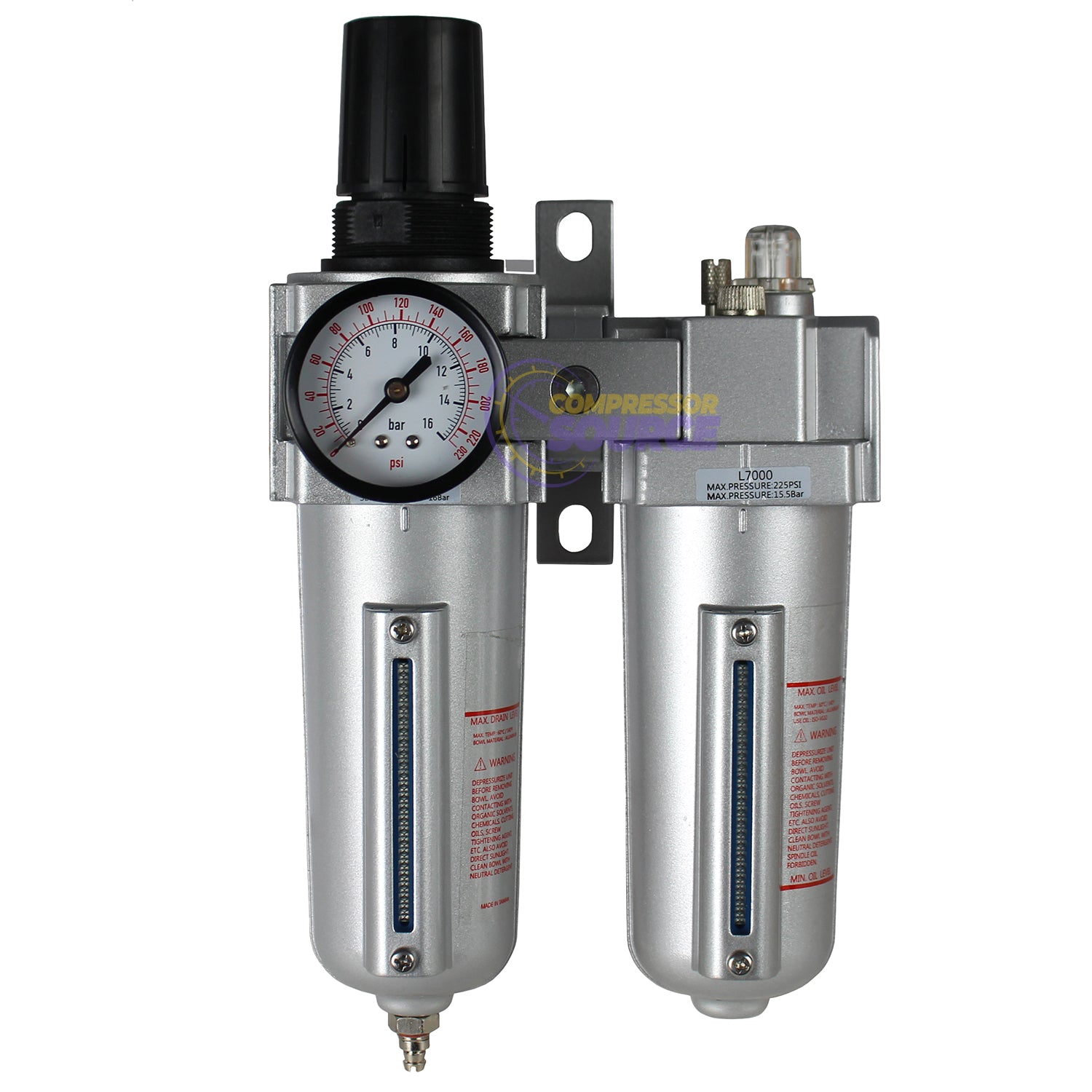

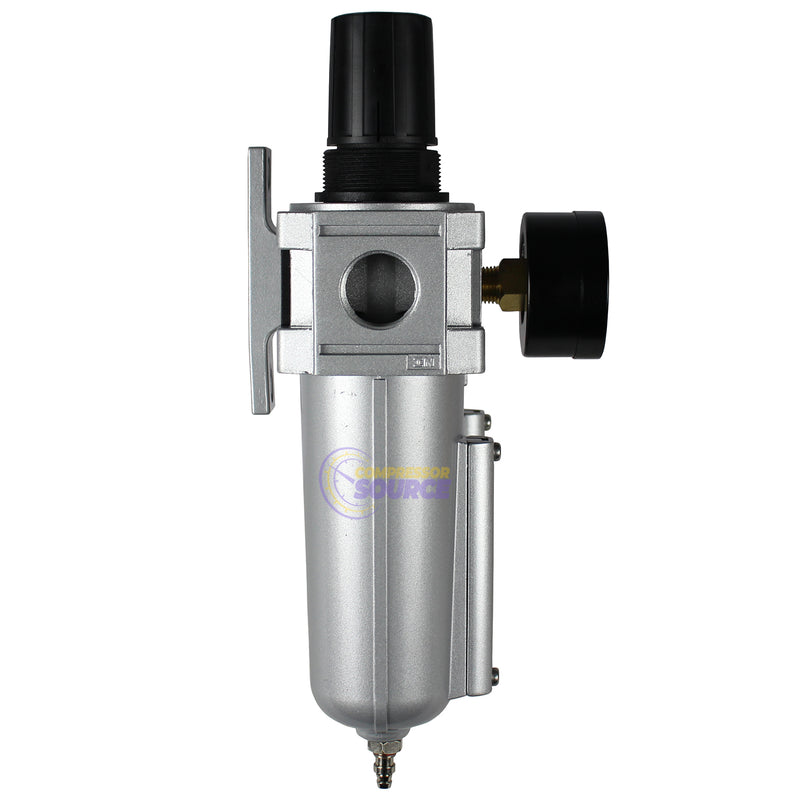

3/4" Compressed Air In Line Filter, Regulator, Oiler Lubricator, Combo

Only 3 left
SKU: FRL726N
Regular price $99.95

Brand new in line compressed air moisture filter, regulator, lubricator combo. This is a high quality unit that gives you the power to keep moisture out of your air lines, regulate air pressure, and lubricate your air lines all at once! This is a perfect set up for when you do not have a lot of room to add all of these components individually. This has 3/4" female NPT input as well as a 3/4" female NPT output port. This assembly has a 140 CFM max flow rate and comes equipped with a pressure gauge. You can adjust the regulated pressure between 7 - 160 PSI with a 225PSI max PSI. The moisture filter features a 5 micron filter, 2.7 oz bowl capacity, as well as a visual sight glass to easily monitor the moisture level. The lubricatior has a 5.1 oz oil capacity with a visual sight glass to easily monitor levels.

The compact design of this combo makes for convenient and easy installation and comes standard with an attached wall mounting bracket. Overall this unit measures 6" Long x 3.5" Wide x 10.75" Tall at the widest points.

Specifications:

225 PSI Max Pressure
140 CFM Max Flow Rate
5 Micron Filter (2.7 oz capcity)
Regulate between 7-160 PSI
5.1oz Oil Capacity
Compact Space Saving Design
