B Section Dual Groove 2 Pc 4" Pulley w/ 1-1/8" Sheave Shiv Cast Iron V Belt

Click Thumbnails to Enlarge

B Section Dual Groove 2 Pc 4" Pulley w/ 1-1/8" Sheave Shiv Cast Iron V Belt

Regular price $52.95
NCA-Pulley4

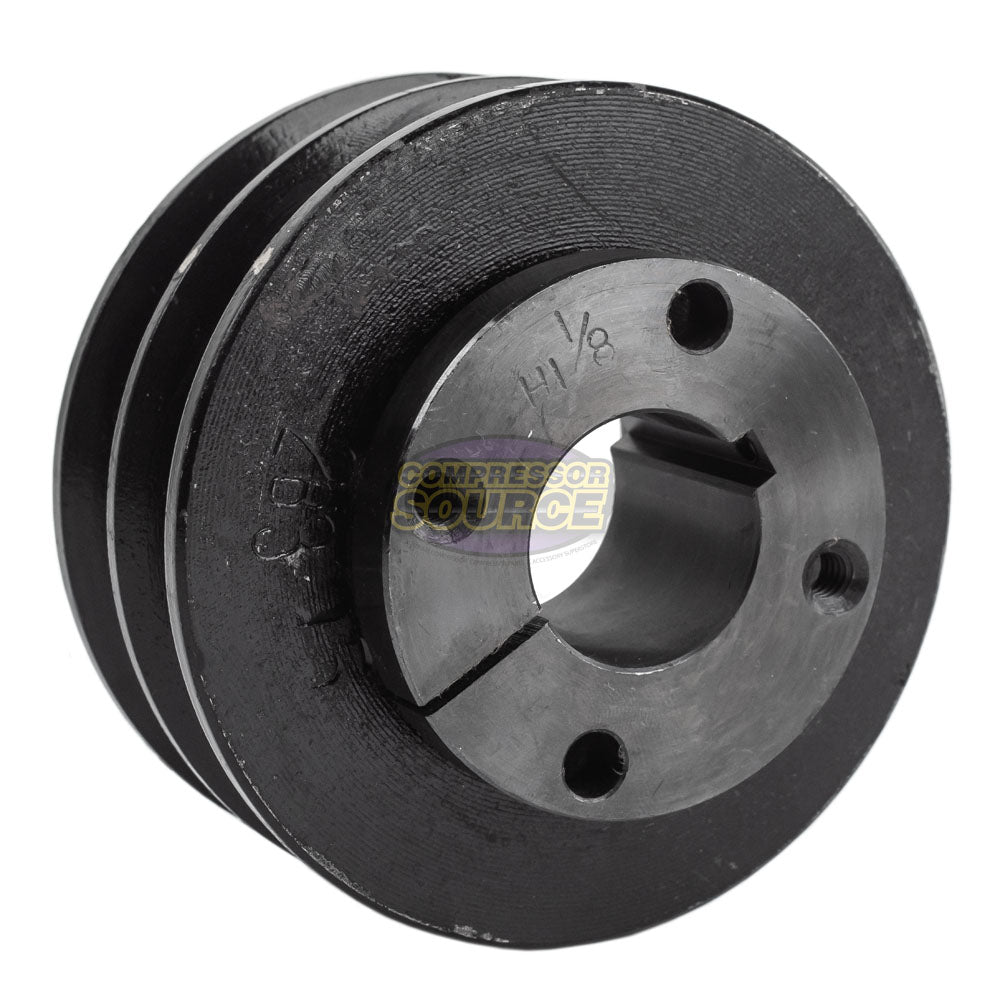

Brand new 4" outside diameter dual belt B section 2pc pulley assembly. This is a high quality cast iron pulley that has a 4" outer diameter, is 1-3/4" wide, and comes with a 1-1/8" sheave to secure it to the motor shaft.

This is a easy to install pulley that comes with everything you need for a quick installation. You will receive (1) 4" B Section Dual Belt Pulley, (1) 1-1/8" Sheave, (1) Shaft Key, (2) Bolts w/ Lock Washers.

If your application only calls for a single belt pulley, you can just use one side of this pulley. Both grooves do NOT have to be used. Also, A Section belts can be used with this pulley; they just set a little deeper in the grooves, which will lessen the diameter by about 1/2". Be sure to keep that in mind when calculating RPM.
