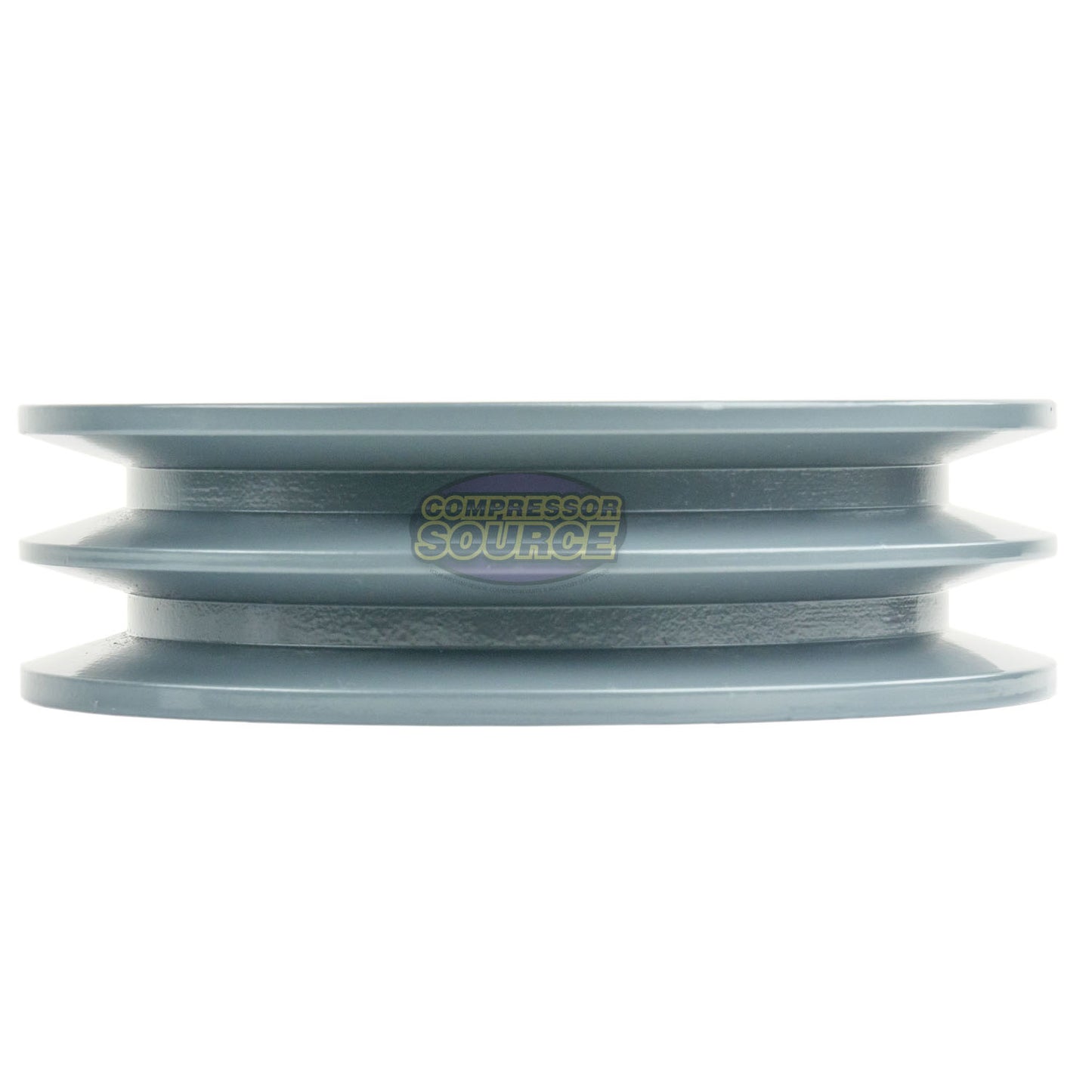

Cast Iron 6.25" Dual Groove Belt B Section 5L Pulley w/ 1-3/8" Sheave Bushing
Cast Iron 6.25" 2 Groove Dual Belt B Section 5L Pulley And 1-3/8" Sheave Bushing
Masterdrive dual groove 6.25" cast iron pulley and sheave combo with a 1-3/8" H bushing for B section belt. This is a high-quality pulley that measures 6.25" outside diameter and is designed to be used with an H style bushing. This 1-3/8" bushing (Included) inserts into the center of the pulley and slides over the shaft. As you tighten down the bolts on the H bushing it will tighten down on the shaft. This listing includes an H bushing to fit on a 1-3/8" shaft. The bushing itself is made of solid steel and is precision machined to ensure high quality and secure attachment to your motor/engine shaft. This pulley accepts B Section also known as 5L series belts. These belts are 5/8" wide. This pulley will work with A Section belts Also known as 4L; however, they will sit farther down in the groove which will reduce your pulley size by 1/4" to 1/2" on average, depending on the size of pulley.
• Dual Groove Pulley
• 1-3/8" Bushing Included
• Accepts: B Section / 5L Section Belts
• High-Quality Cast Iron Construction
• Solid Steel Bushing
• For Use on 1-3/8" Shaft
• Outside Diameter of Pulley: 6.25"
