Puma 3 Cylinder Single Stage Cast Iron 22SCFM Air Compressor Pump
Brand new Puma, cast iron, 3-cylinder, single stage, 140 PSI max pressure, air compressor pump. This air compressor pump features a complete cast iron body, cylinders, as well as cast iron heads, which ensures a long life even in the hardest working conditions. This is an oil lubricated pump with the heads in a 'W' shape, which allows the cylinders to stay cooler than traditional style air pumps. If you need a high quality, long lasting, dependable pump, this is a great option. The compressor is equipped with floating, steel reed valves which are designed for longevity and performance. Depending on the RPM that you will be spinning this pump, which can be anywhere between 650-1000 RPM, it will put out between 14 and 22 SCFM. A 10.5" flywheel comes installed on the pump and requires two 'A Section' belts (not included) that you can find in our belt section. This is a high quality pump that can give you years of reliable performance in a large variety of applications.

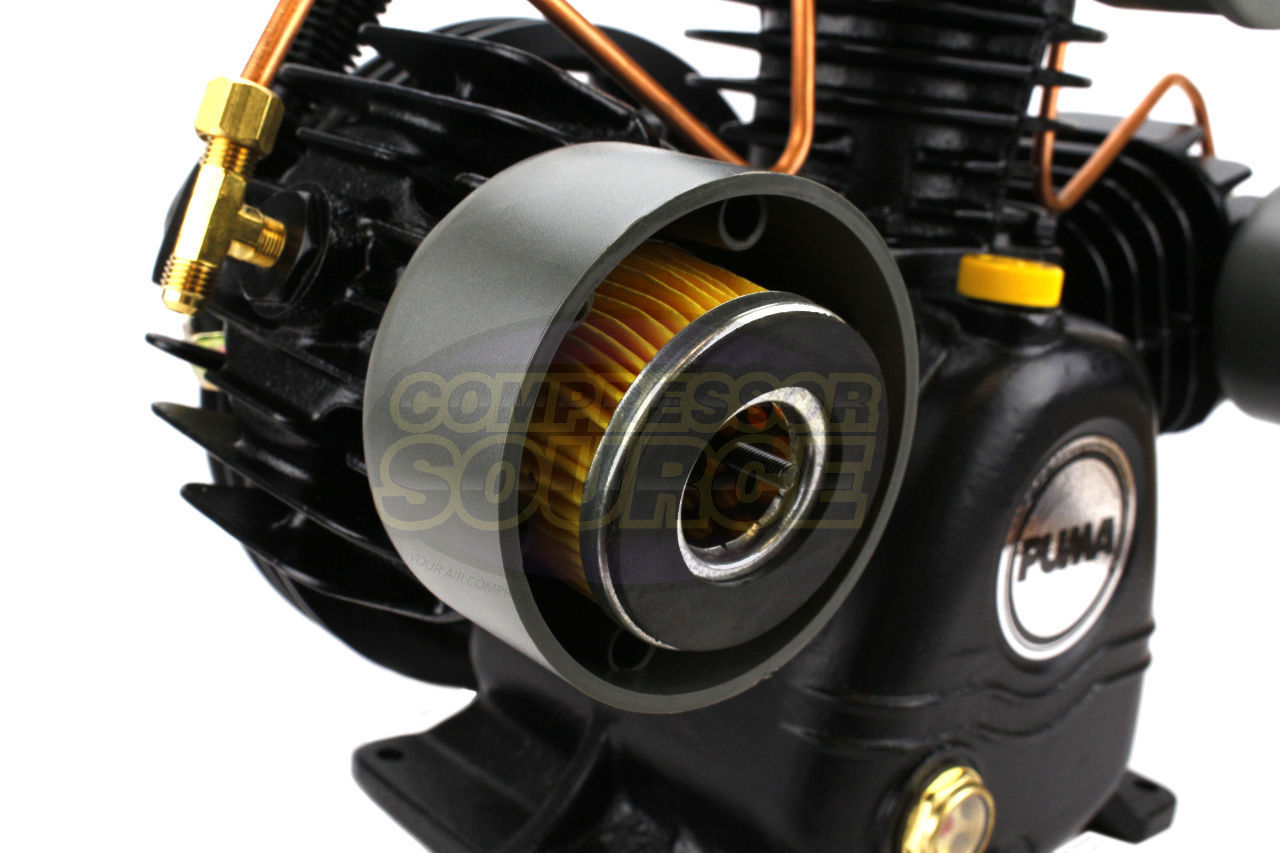

This is a versatile pump and can be used with gas or electric motors that are at least 5 hp. As you can see in the picture, this pump has a small copper line going from one head to the next. This line is for use in dual control or gas engine applications. Using this line with a pilot valve will allow the pump to spin freely when up to pressure without continually pumping air and building heat. This makes for a much longer life span of the pump. If you are using this pump with a standard electric motor, you can leave these lines hooked up with nothing connected to them and the pump will operate normally. Or, you can remove the copper lines and plug the top of each cylinder with a 1/8" NPT plug. For more information on this pump, or to better understand how it will work in your application, you can contact us.
Part Number: PUK-65
Single Stage
3-Cylinder
Solid Cast Iron Constuction (Body, Cylinders, & Heads)
Oil Lubricated
Easy View Oil Level Sight Glass
10.5" Flywheel
Requires 2 'A Section' Belts (NOT INCLUDED)
650-1000 RPM
14-22 SCFM
Can be used with Gas or Electric Motor
Optional Dual Control
"W" Shaped Cylinders
Air Filter Enclosures and Elements Included
