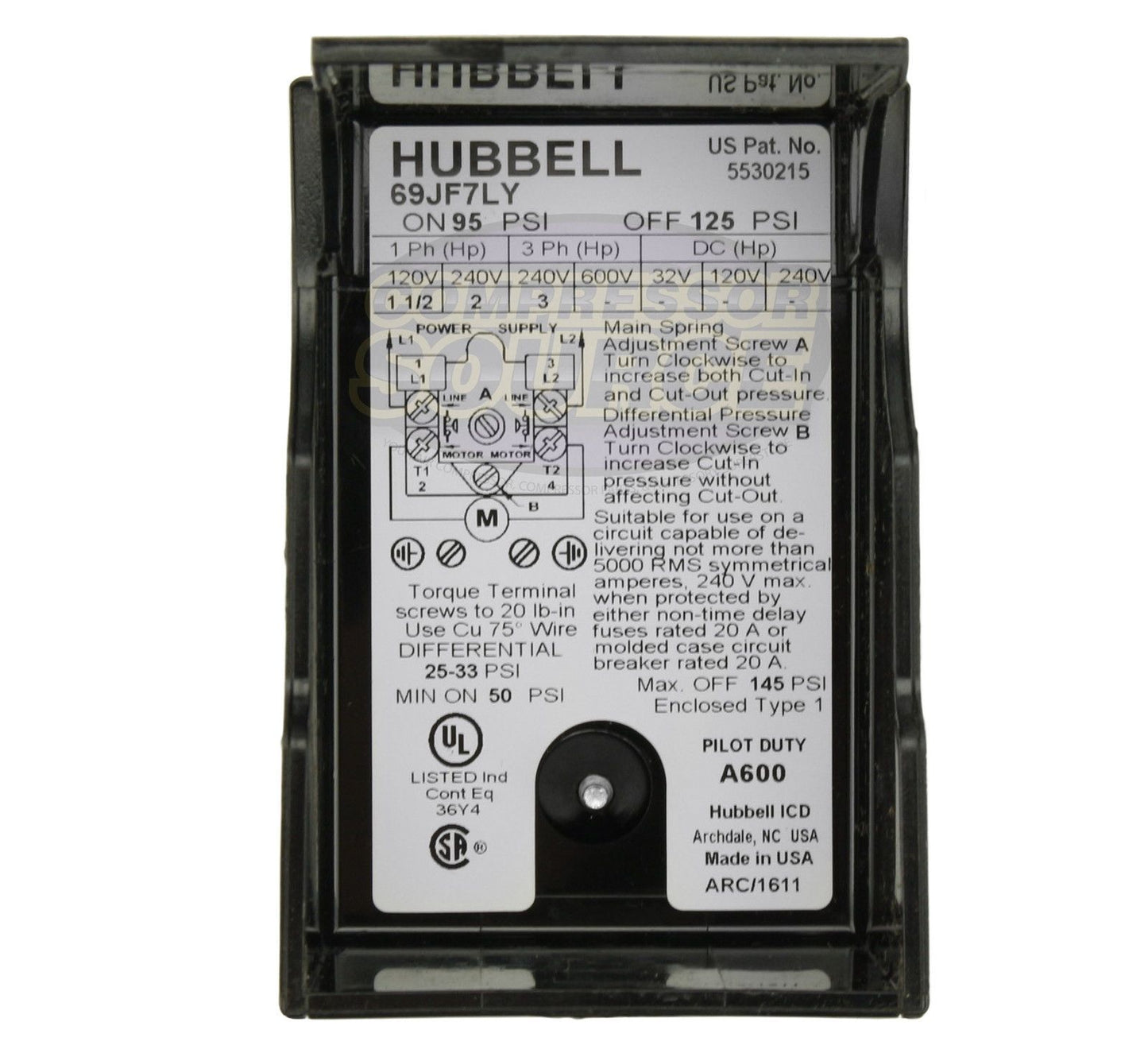

Hubbell 69JF7LY 95-125 PSI Single Port Air Compressor Pressure Switch

In stock
SKU: 69JF7LY
Regular price $44.95

Brand new Hubbell / Furnas 95-125 PSI air compressor pressure switch control valve with a single 1/4” female NPT air inlet connection port. The switch listed is a universal replacement pressure switch that replaces brands such as Furnas , Square-D and more. This switch is equipped with an unloader valve, on / off lever, and a single 1/4” female NPT air inlet port. ( Note: 1/4” NPT measures about 1/2” in diameter.) The unloader equipped on this switch is used to unload the air pressure off the head of the compressor when the compressor shuts off, this way when it starts there is no pressure on the piston and the compressor is able to start load free. This valve usually has a 1/4" plastic or copper line that runs to the check valve or the head of the compressor. If your compressor does not have an unloader line then this valve can be left not hooked up and the pressure switch will still function properly.

Specifications:

Brand: Hubbell (formerly Furnas)

Part Number: 69JF7LY

-PRESET 95-125 PSI

Equipped With Manual On / Off Lever On The Switch

-PRESSURE DIFFERENTIAL: 30-40 PSI

1/4" COMPRESSION UNLOADER VALVE CONNECTION

1/4" FEMALE NPT TANK CONNECTION.

MADE IN THE USA
