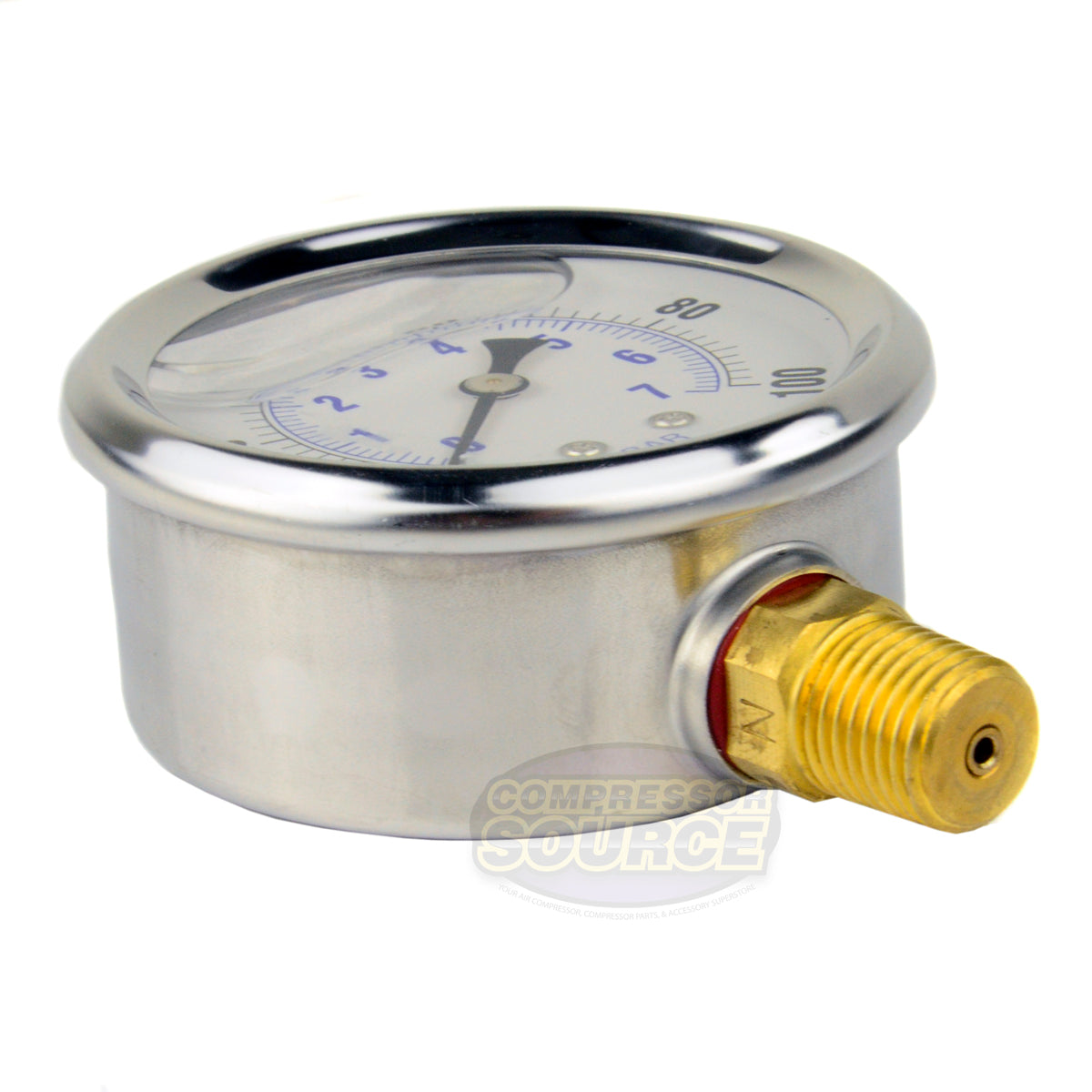

Liquid Filled 0-100 PSI Lower Side Mount Air Pressure Gauge With 2.5" Face

In stock
SKU: SEC-201L-254E
Regular price $12.95

Brand new top quality liquid filled air pressure gauge. This gauge has a glycerine filling that helps dampen the effects of pulsation and vibration, while also perpetually lubricating the  movement, and keeping contaminates such as dirt away from all moving parts, which will extend the life of the gauge. This gauge also has a blue pressure relief vent that needs to be pulled up before use.

This gauge reads at 0, 20, 40, 60, 80, 100 psi with line markings every 2 psi.
Bar reading at 0-7.

Specifications:

Dial size: 2.5"
Lower mount / Side mount
Connection size: 1/4" male NPT which measures about 1/2" in diameter.
Stainless steel case and bezel
Brass internals & connection (w/ built in snubber)
Phosphor bronze bourdon tube
Glycerine filled
Accuracy: 3-2-3% per ANSI grade B
Dual scale: PSI and bar (x100=kPa)
Ambient temperature: 30 F to 160 F
