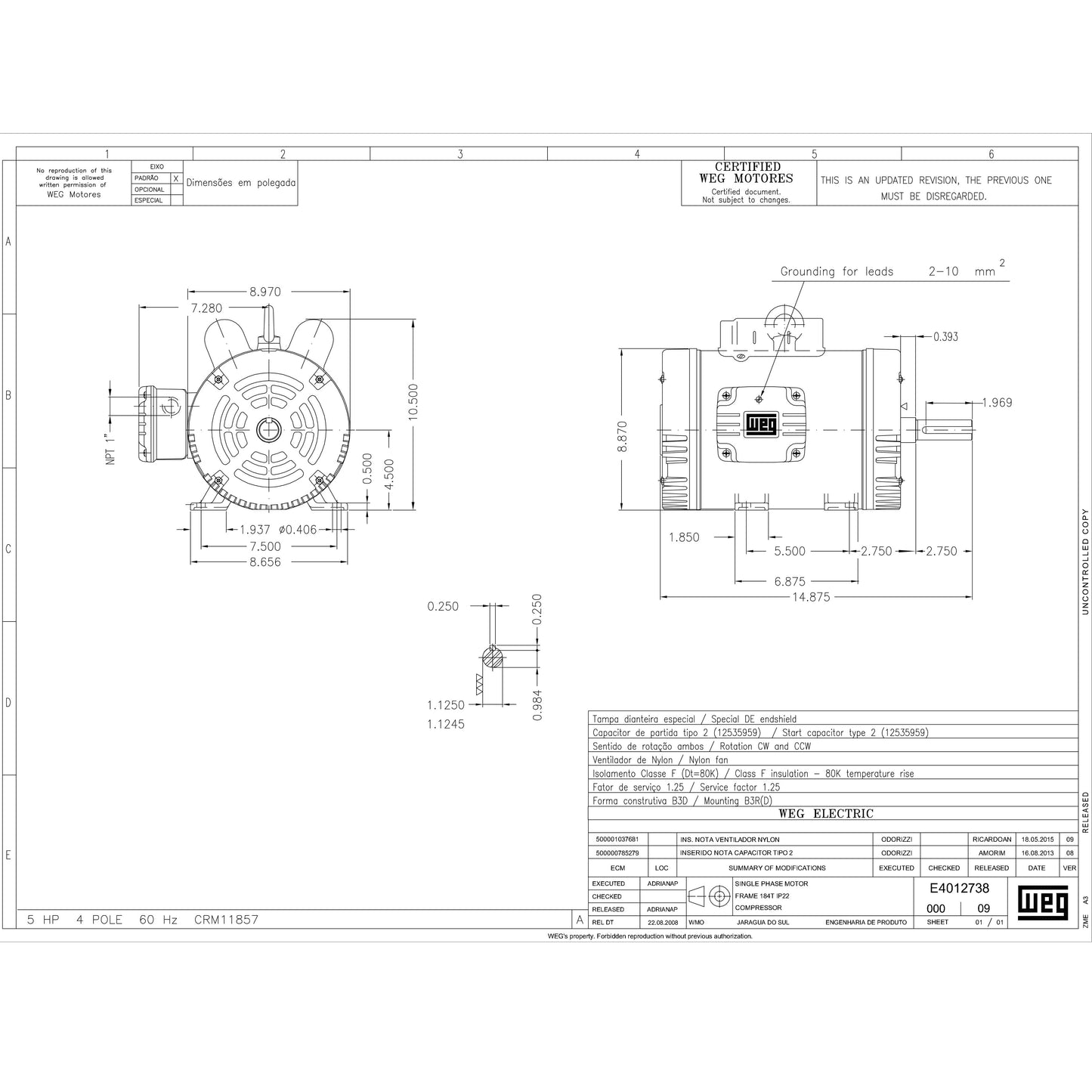

The WEG 00518OS1CCD184T is a 5 HP air compressor duty electric motor built to handle the high starting load and torque that compressors demand. It runs on 208-230 volts, single phase, 60 Hz, at 1750 RPM in a 184T frame with a 1-1/8" diameter x 2-3/4" long shaft, and rotates in either direction (CW or CCW).
Using this as a replacement motor? This is a 1750 RPM (4-pole) motor. If you are replacing a higher-RPM motor such as a 3450 RPM unit, you can still use it — you will just need a larger pulley to make up the airflow (CFM) on your compressor. Not sure whether the frame, shaft, or RPM will fit your setup? Contact us with your old motor's details and we will confirm it is the right replacement before you buy.
Ships fully assembled. THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES.
Backed by an 18-month WEG limited manufacturer's warranty. We take the time to package these motors extremely well so they arrive in perfect condition, and we strive for 100% customer satisfaction. If you have any questions about this motor or whether it will work as a replacement on your compressor, please get in touch.
