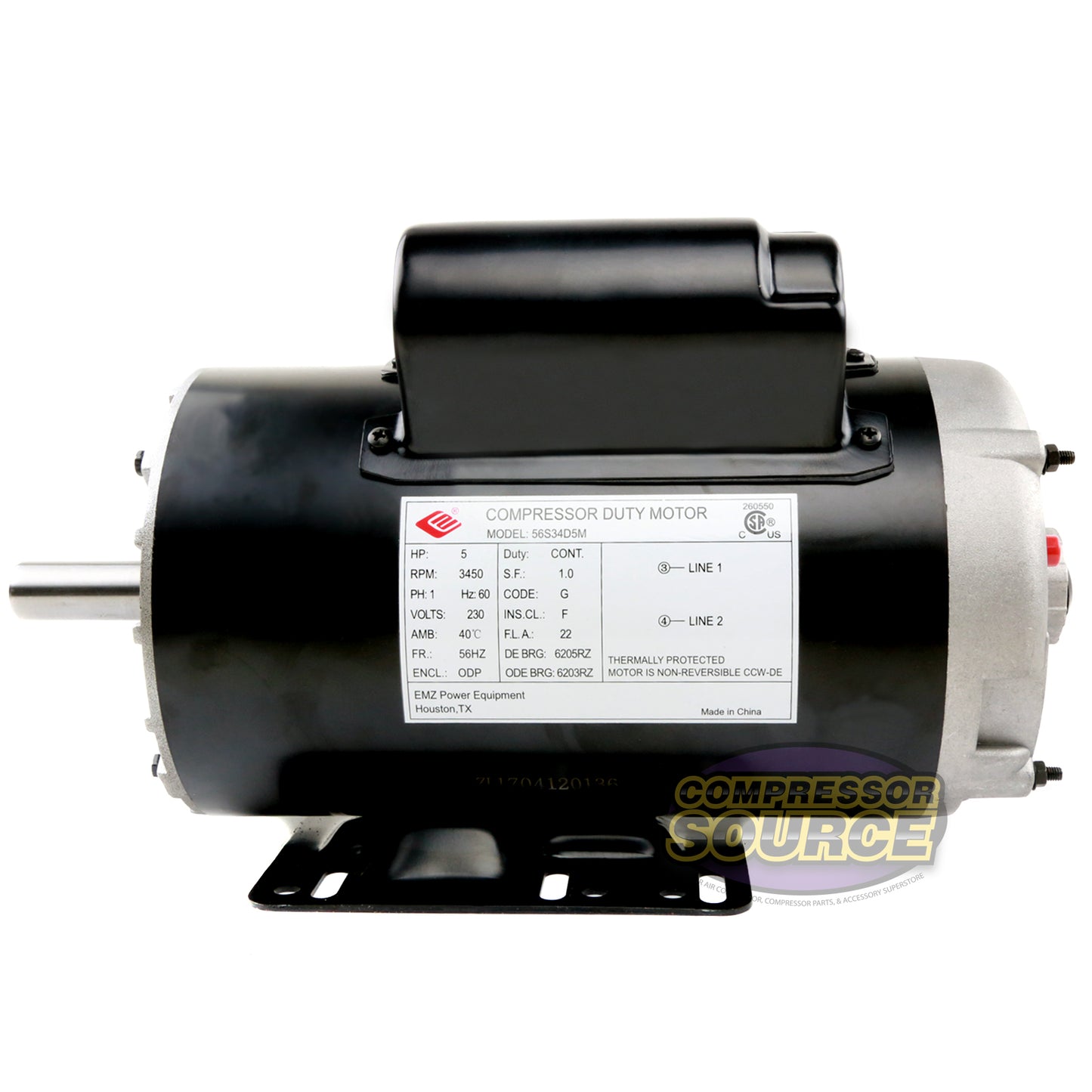

The EMZ 56S34D5M is a 5 HP single-phase 230-volt compressor duty electric motor. This motor features a 56 frame with a 7/8" diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump - making it a great general purpose electric motor too. The wiring diagram is listed on the side of the motor for reference.

Specifications:

• Open Drip Proof (ODP)
• Single Phase
• 5 HP
• 3450 RPM
• Common replacement for Emerson, Ingersoll Rand and Century 5 HP motors including models: B813, B386, B385, B384, 56S34D5M, 7-194160-01, 7-182679-01, 7-182678-01, 7-164621-01 and 47733923001
• 60 Hz
• 230 Volts
• AMB 40 °C
• Mounting Frame: 56
• Duty: Cont. Compressor
• Service Factor: 1.0
• Full Load Amps: 22
• Non-reversible, CCW Rotation Facing Shaft
• Thermally Protected
• Overall Length W/O Shaft: 12.5"
• Overall Length With Shaft: 14.85"
• Overall Height: 8.65"
• Overall Width: 6.6"
• Shaft Diameter: 7/8"
• Shaft Length: 2-3/8"
• Standard Size Keyway: 3/16"
• Manual Reset Overload Protection
