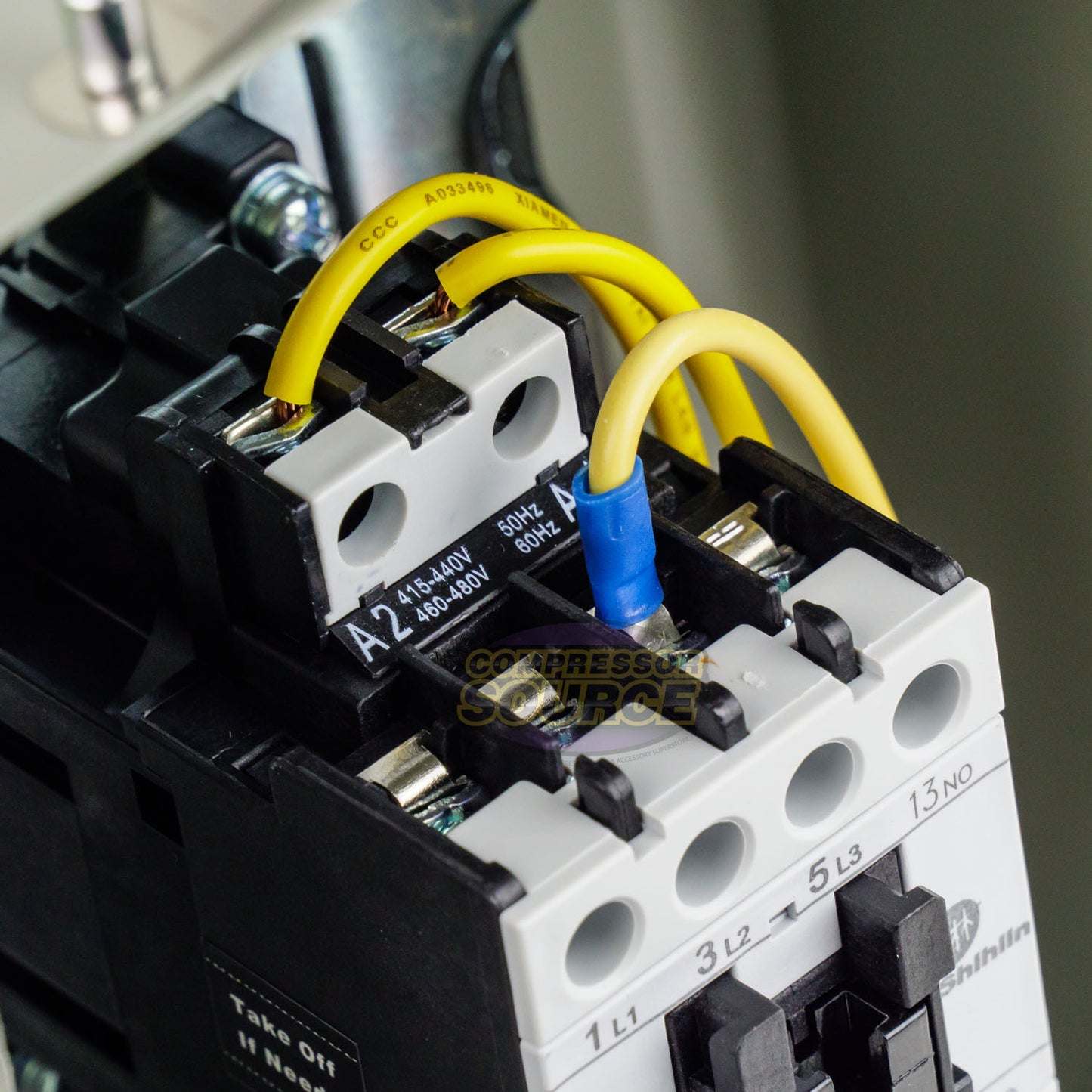

5 HP 3 Phase Magnetic Starter Motor Control Complete 460/480 Volt 11 Amps NEMA 1

Only 3 left
SKU: MSP11
Regular price $69.95

5 HP 3 Phase 460/480 Volt Magnetic Air Compressor Starter

Brand new 5 horsepower three phase 460/480 volt magnetic starter with a steel housing. This is a great quality starter with a built in overload which is adjustable from 7-11 amps. Also has a manual reset button that can be switched to auto reset. The steel housing has four 1-1/8"punch out holes for incoming and outgoing wires. Also included are three rubber surround gromets for the 1-1/8" holes to protect the wires if needed. Starter comes with wiring instructions.


Specifications

• Starter Housing Size (H x W x D): 9" x 5-1/2" x 5-1/2"
• Starter Rating: 5 HP, 460/480 Volt, Three Phase
• Amp Rating: 7-11 Amps / Adjustable

If you currently have a 5 HP air compressor and the contacts on your pressure switch keep burning up, a starter is what is needed to fix the problem.

If you are using this starter on an air compressor, you will also need a pressure switch to control the starter. In this application the pressure switch controls when the starter turns on and off depending on the pressure setting of the pressure switch.

PROFESSIONAL INSTALLATION IS REQUIRED

Due to this being an electrical item, there is no warranty after installation.
