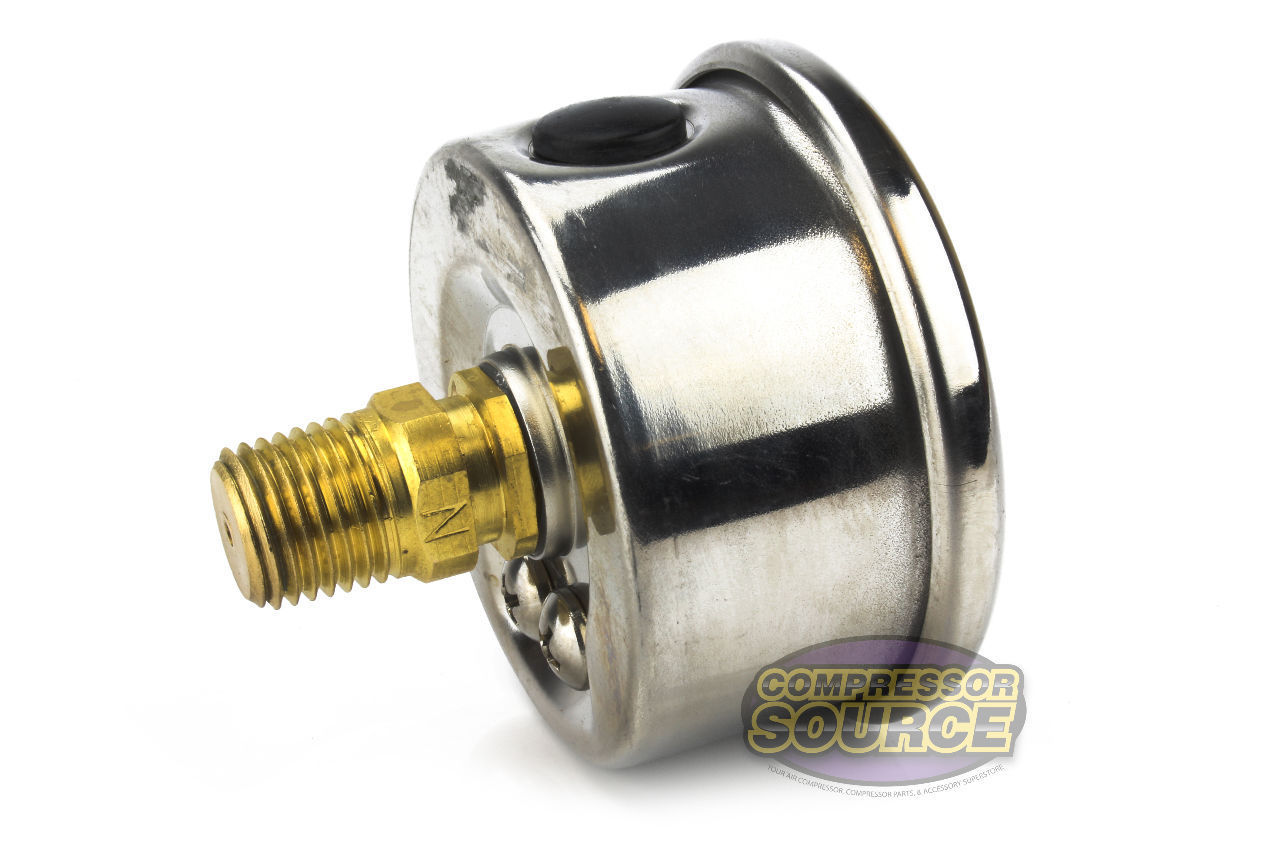

One brand new, top quality, liquid filled air pressure gauge. This gauge has a glycerine filling that helps dampen the effects of pulsation and vibration, while also perpetually lubricating the movement, and keeping contaminates such as dirt away from all moving parts, which will extend the life of the gauge.
This gauge reads at: 0, 40, 80, 120, 160, and 200 PSI
with tac marks every 5 PSI
BAR readings at 2,4,6,8,10,12, and 14
Specifications:
Dial Size: 2"
Center Bottom Mount
Connection Size: 1/4" Male NPT
Stainless Steel Case & Bezel
Brass Connection and Internals with built in Snubber
Phosphor Bronze Bourdon Tube
Glycerine Filled
Accuracy: 3-2-3% per ANSI grade B
Dual Scale: PSI / BAR (x100=kPa)
Ambient Temperature: 30°F to 160°F
