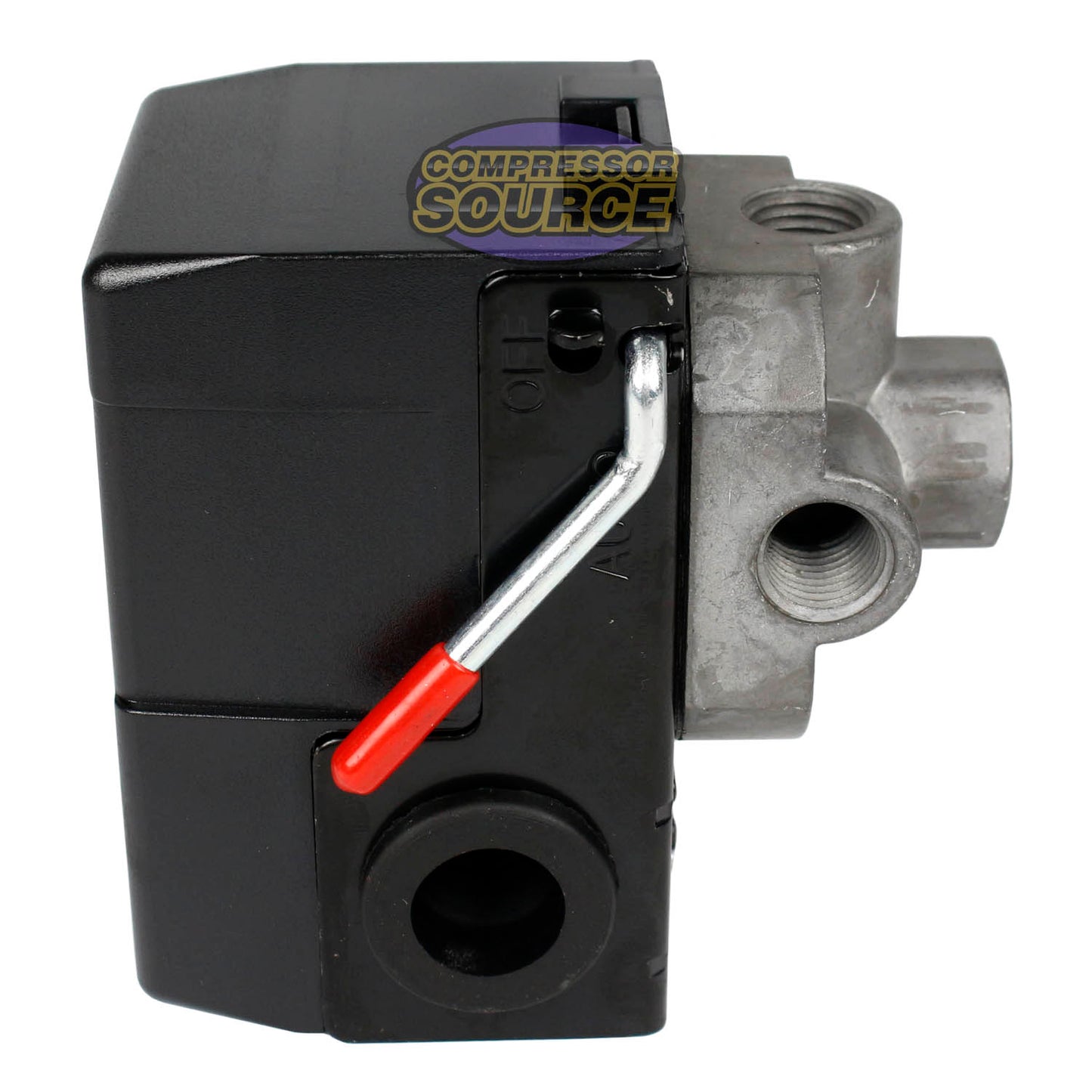

Brand new 95-125 PSI air compressor pressure switch or known as a pressure control valve. This switch has four ports on the bottom, one for air inlet hook up and the other three ports are usually used for a relief valve, gauges, or extra air outlets. These four ports are all 1/4" female NPT. This switch is also equipped with a on and off lever and a unloader valve on the side, which is 1/4" compression, if the unloader is not needed it does not need to be hooked up. For technical specifications please see below.
SPECIFICATIONS:
AIR INLETS: FOUR 1/4" NPT FEMALE PORTS, WHICH CAN BE CHANGED TO MALE USING A PIPE NIPPLE THAT CAN BE BOUGHT AT A LOCAL HARDWARE STORE.
UNLOADER SIZE: 1/4" COMPRESSION
EQUIPPED WITH MANUAL ON AND OFF LEVER
PRESSURE SETTING: TURNS ON AT 95 PSI AND SHUTS OFF AT 125 PSI, CAN BE ADJUSTED FOR CUSTOM SETTING WHICH IS EXPLAINED UNDER THE LID OF THE PRESSURE SWITCH.
POWER AND AMP RATING: 20 AMPS MAX AT 120 VOLT, 12 AMPS MAX AT 240 VOLT SINGLE PHASE, 9.6 AMPS MAX AT 240 VOLT 3 PHASE.
( IF YOU HAVE A LARGER INDUSTRIAL COMPRESSOR WITH A MAGNETIC STARTER AMPS DO NOT MATTER, ALL THE SWITCH IS DOING IS TELLING THE STARTER WHEN TO SHUT ON AND OFF).
12 VOLT POWER DC: 8.6 AMPS AT 32 VOLTS DC, 3.1 AMPS AT 120 VOLT DC, 1.6 AMPS AT 240 VOLT DC.
