After months of research and videos I decided on the after cooler for the 5-7.5 hp compressors. NOT a transmission coolers. pay attention folks two different functions and operating parameter designs.
The necessary fittings to reduce from 3/4 to 1/2 and the 90* fittings saved me a lot of trips looking for all the parts.
This is one of the better one stop shops for DIY folks needing air compressor parts and help.
Not a welder so am stuck figuring out how to wall mount the after-cooler but at least it will be on hand.
I will be a repeat customer for sure.

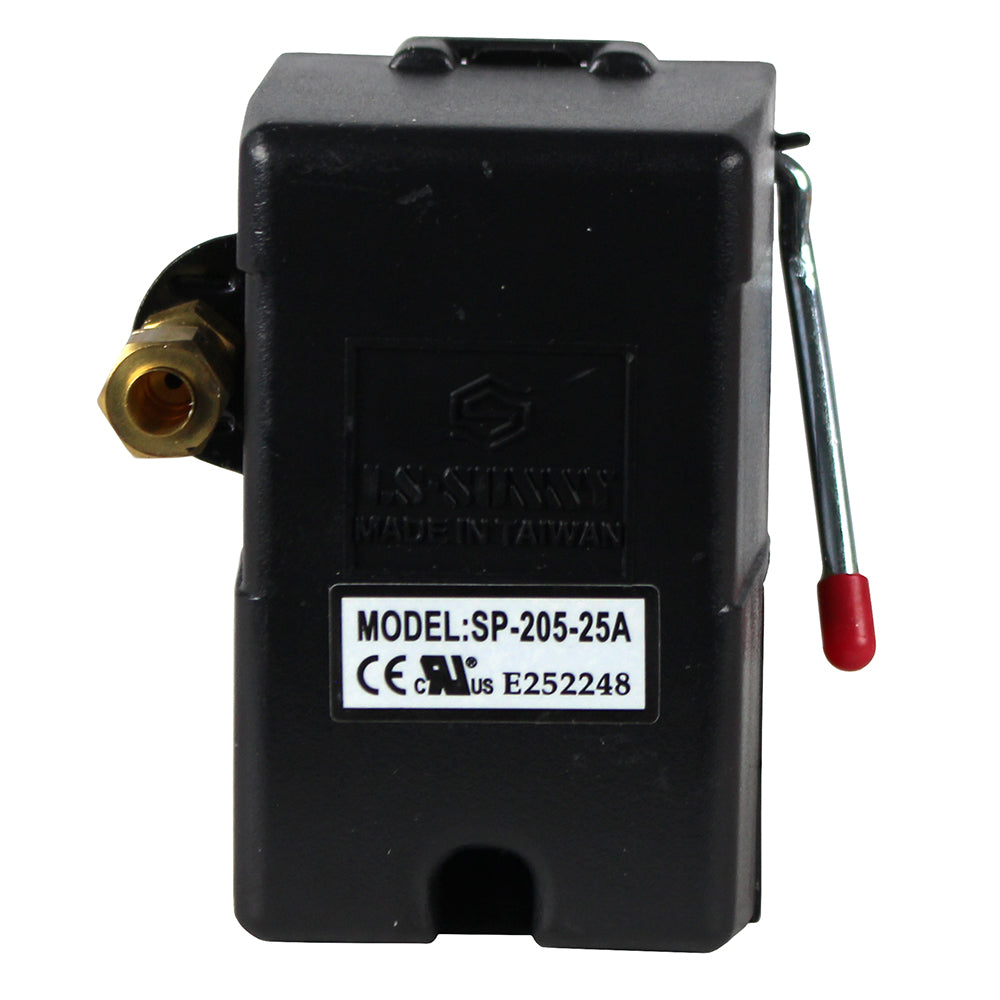

This listing is for a 25 Amp heavy-duty air compressor switch. If the switches you have been using are burning out and melting contacts, this is a great high-quality heavy-duty replacement switch! This switch is rated at 25 Amps at 115V, 230V, and 12V DC power. The switch is set to turn on at 95 PSI and turn off at 125 PSI. The pressure settings are adjustable 30-40+- PSI. This switch comes equipped with an on/off switch and also an unloader valve which can or cannot be used depending on what your compressor calls for. This is a universal switch commonly used as a replacement / upgrade with Furnas, Square D, Sunny, Lefoo, and many more compressors! This will work as long as the pressure settings are correct or close enough to adjust the switch to the exact pressure you use. This switch requires one 1/4" air inlet from the tank. We also have 4 port pressure switches available in our store.
(This switch is for compressors with high amps or use without a magnetic starter.)
Features:
• 1 Single 1/4" Female Port for the Tank Pressure Inlet
• 1 Single 1/4" Compression Inlet for the Unloader Valve
• Comes with New Compression Nut and Ferrule
• 25 Amp Power Handling @ 115V, 230 Volt and DC Power
• On and Off Lever on the Side
• Cut in Pressure: 95 PSI
• Cut-out Pressure: 125 PSI (Adjustable)
