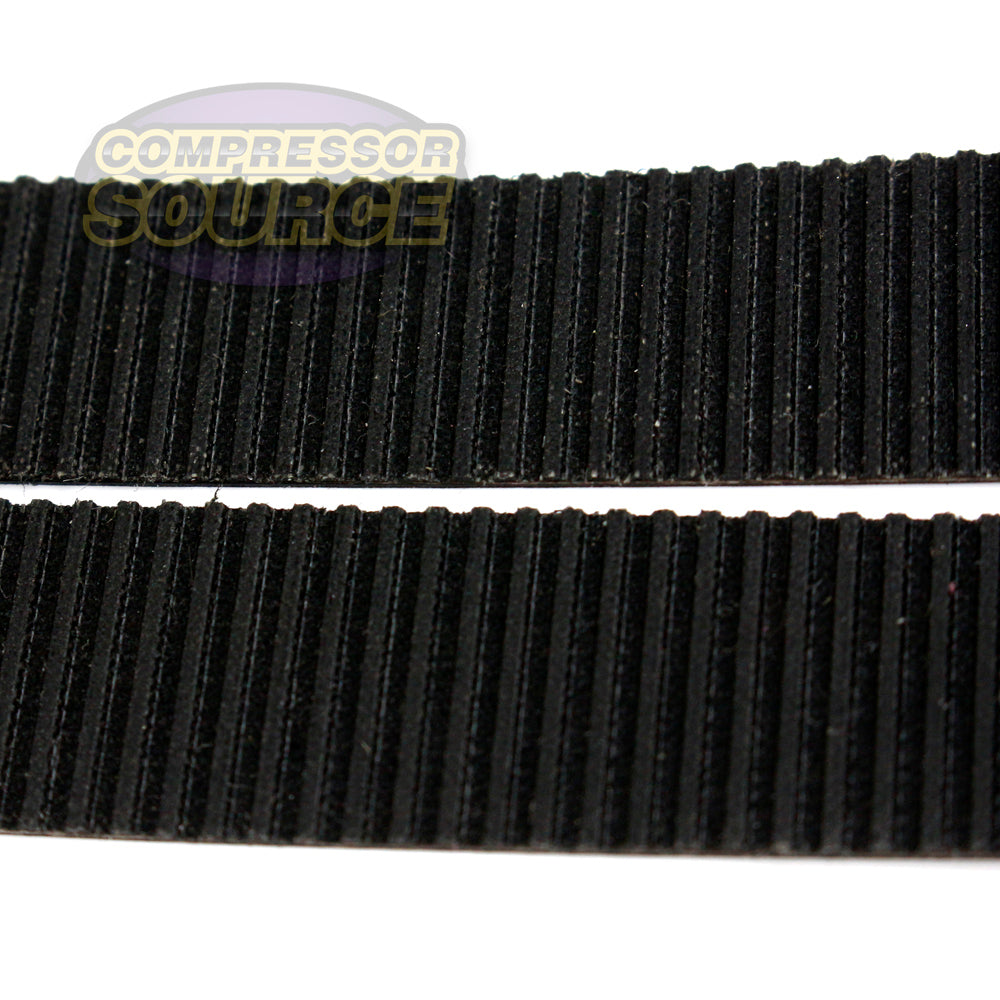

N011005 Air Compressor Belt Replacement Craftsman 919-16755 919.167600 919-16760
This is a replacement air compressor belt. This belt is commonly used in many different compressors including Craftsman, DeWalt, Bostitch, Devilbiss, Black & Decker, and Porter-Cable. This belt can be used for a large variety of compressors and measures 5/8" wide and Overall Length of 30-1/2". This belt is a replacement for the N011005 and A12210 Belt.
Specifications:
• Overall Length: 30-1/2"
• Half Length: 15-1/4"
• Width: 5/8"
• Thickness wo/tooth: 0.05"
• Thickness with Tooth: 0.065"
Works with the following Compressors:
Craftsman:
919-167620
919-16755 (Type 0 and 1)
919-16760 (Type 0)
919-16761 (Type 0)
919-16762 (Type 1)
919-16763 (Type 0 and 1)
919-16770 (Type 0 and 1)
919-16771 (Type 0 and 1)
DeWalt Models:
D55146 (Type 2 and 3)
D55167 (Type 1, 2, and 3)
D55168 (Type 1, 2, and 3)
Bostitch Models:
CAP1615-OF & CAP1645-OF
If the Belt seems to be 1-1/2" too long, please check to make sure you are routing it correctly.
