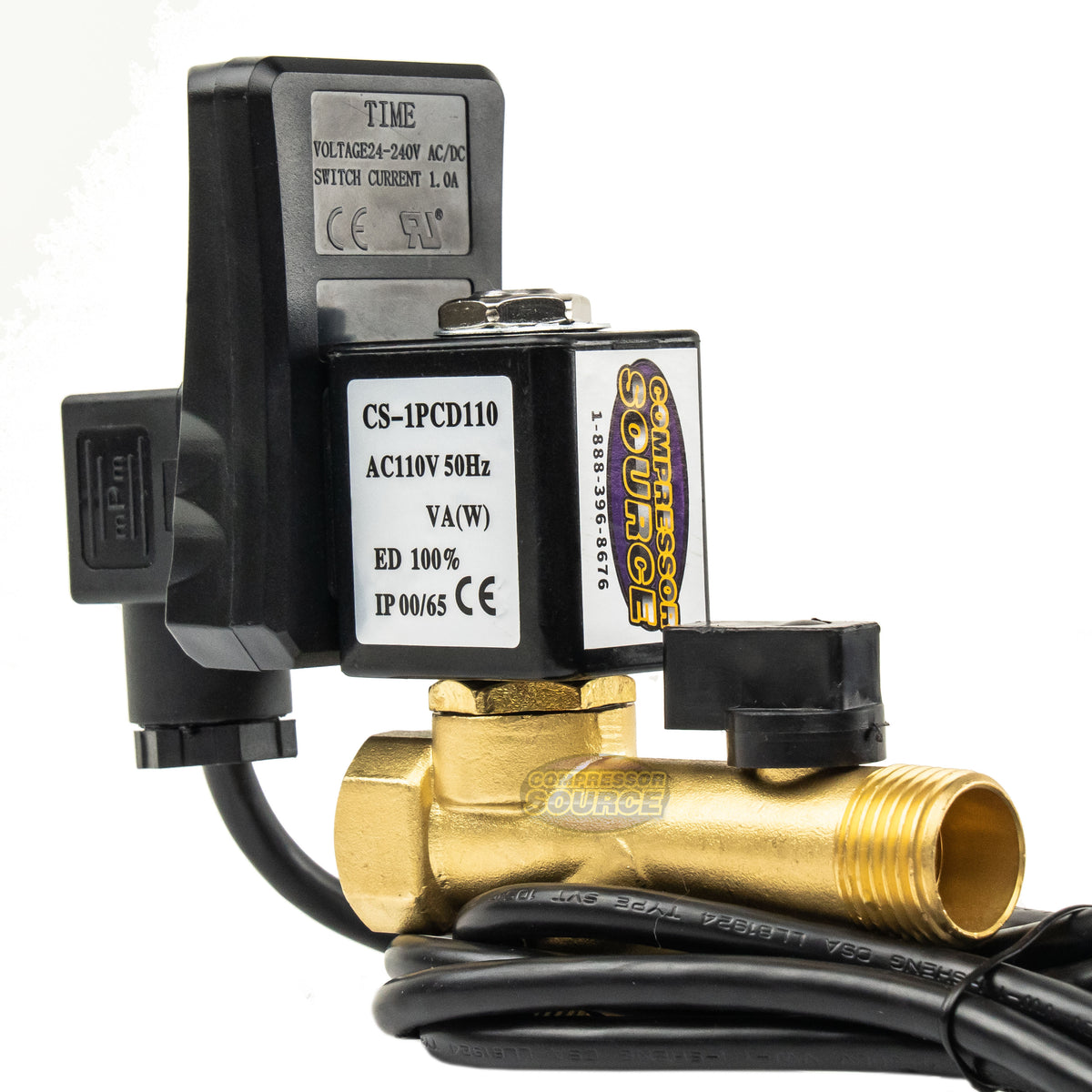

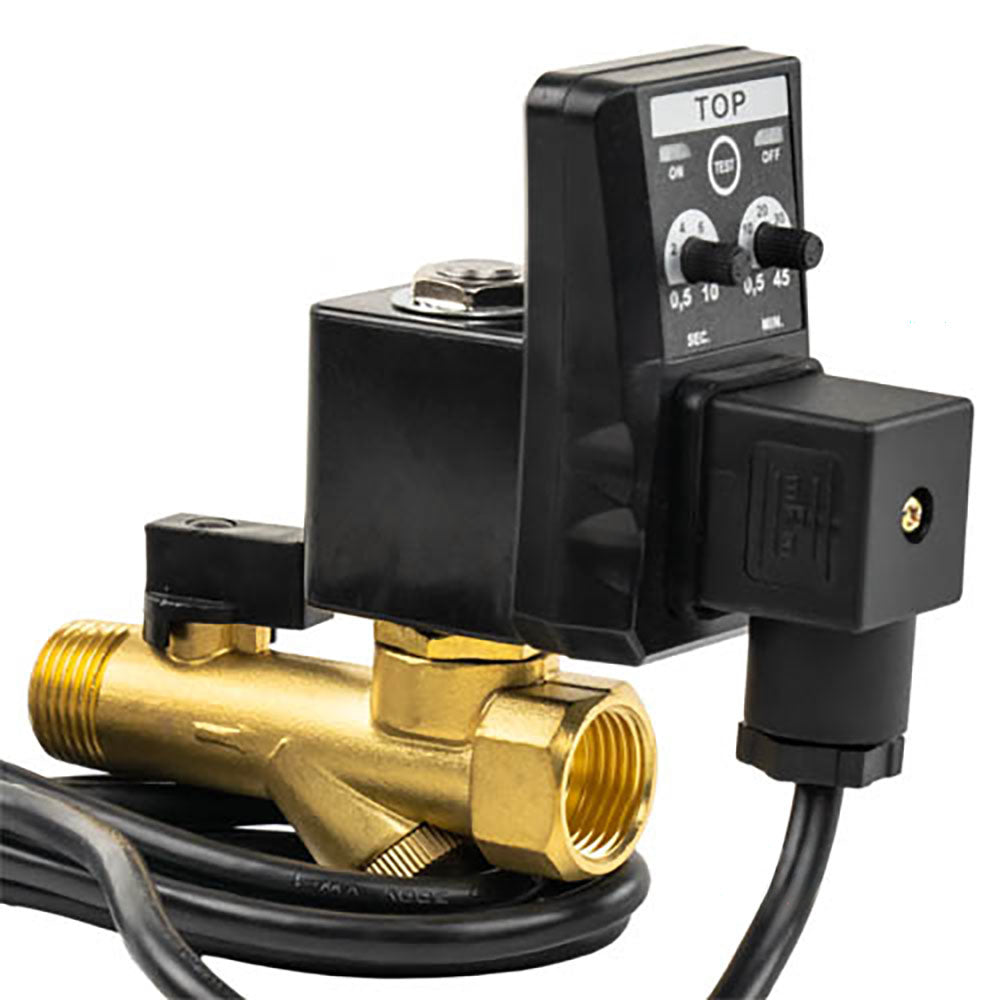

The Compressor Source CS-1PCD110 is a 115-volt automatic, electronically timed, water-drain valve for removing condensate moisture from air compressor tanks. It can be set to drain between once every minute up to as long as every 45 minutes. The valve can be set to stay open between .5 and 10 seconds. These drains are most commonly set to drain for 3 seconds every 30-45 minutes. This valve also has a manual drain control button, labeled "Test", that can drain the tank at any time.

The CS-1PCD110 automatic drain plugs into a standard 110-120 Volt outlet and has a 5.5 ft long cord. It has a 1/2" MNPT air inlet, which measures approximately 3/4" in diameter, and a 1/2" FNPT air outlet.

Specifications:

• Interval Time: 0.5–45 minutes
• Discharge Time: 0.05–10 seconds
• Manual Test Switch: Yes
• Current Consumption: Max 4 mA
• Operating Temperature: -40°F to 122°F
• Environmental Protection: IP65 (NEMA 4)
• Case Material: ABS plastic, FR grade
• Connection: DIN 43650A
• Indicators: Yellow (open/closed)
• Valve Type: 2/2-way direct-acting valve
• In/Out Ports: 1/2" male/female NPT
• Maximum Working Pressure: 16 bar
• Media Temperature: Max 194°F
• Valve Body: Forged brass
• Insulation: Thermal Group H, 180°C
• Supply Voltage: 115 volts
