5 Horsepower 3 Phase Magnetic Starter Motor Control Complete 208-240V 5-3-230X

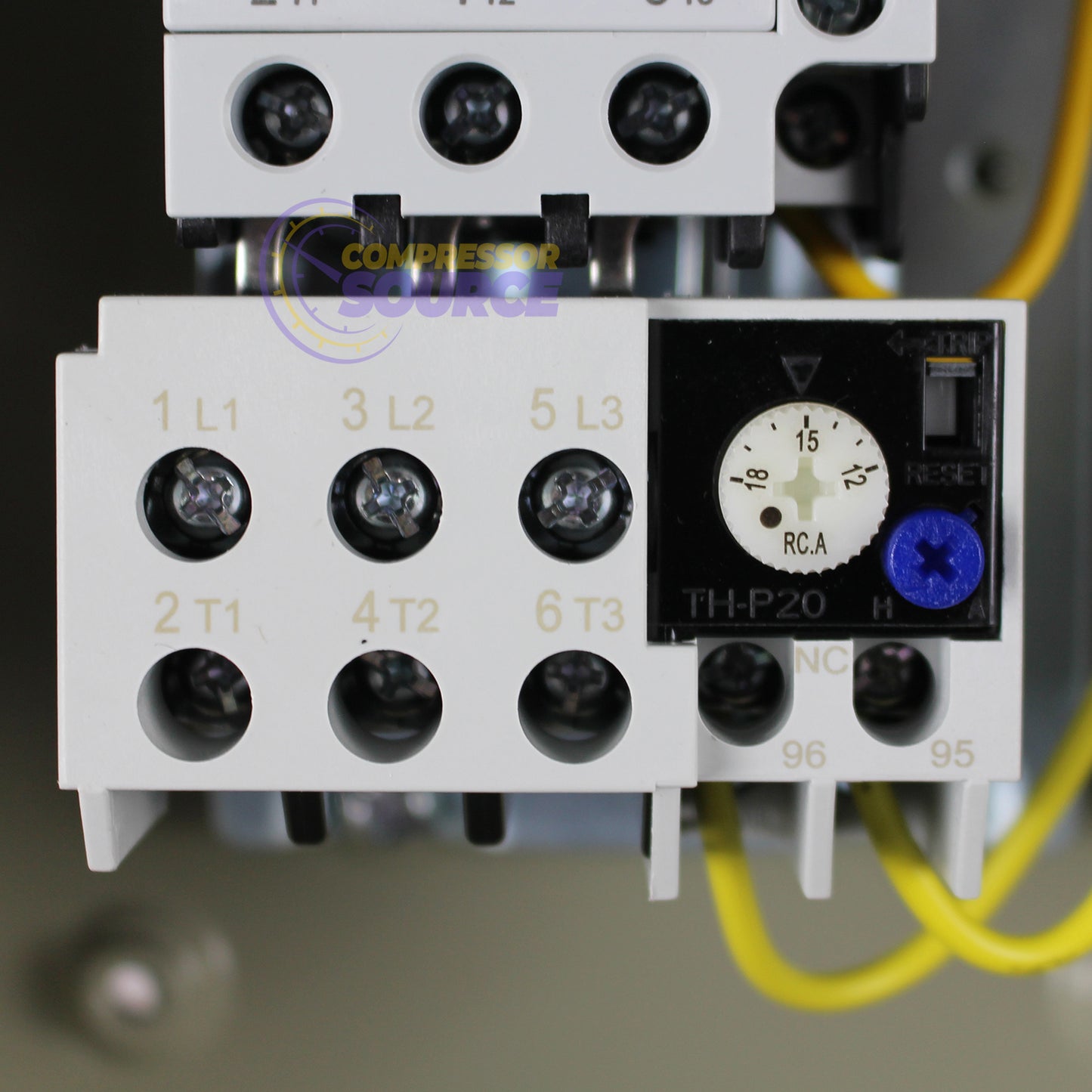

5 horsepower three-phase 208-240 volt magnetic starter with a steel housing. This is a great quality starter with a built-in overload which is adjustable from 12-18 amps. Also has a manual reset button that can be switched to auto reset. The steel housing has four 3/4" punch-out holes for incoming and outgoing wires. Also included are three rubber surround grommets for the 3/4" holes to protect the wires if needed. The starter comes with wiring instructions.
Features & Specifications:
• Starter Housing Size: 11"H x 6"W x 5.75"D
• Starter Rating: 5 HP, 208-240 Volt, Three Phase
• Amp Rating: 12-18 Amps / Adjustable
If you currently have a 5 HP air compressor and the contacts on your pressure switch keep burning up, a starter is what is needed to fix the problem.
If you are using this starter on an air compressor, you will also need a pressure switch to control the starter. In this application, the pressure switch controls the on and off of the starter depending on the pressure setting of the pressure switch.
