1/4" Industrial Air Compressor Pressure Regulator with Wall Mounting Bracket

Click Thumbnails to Enlarge

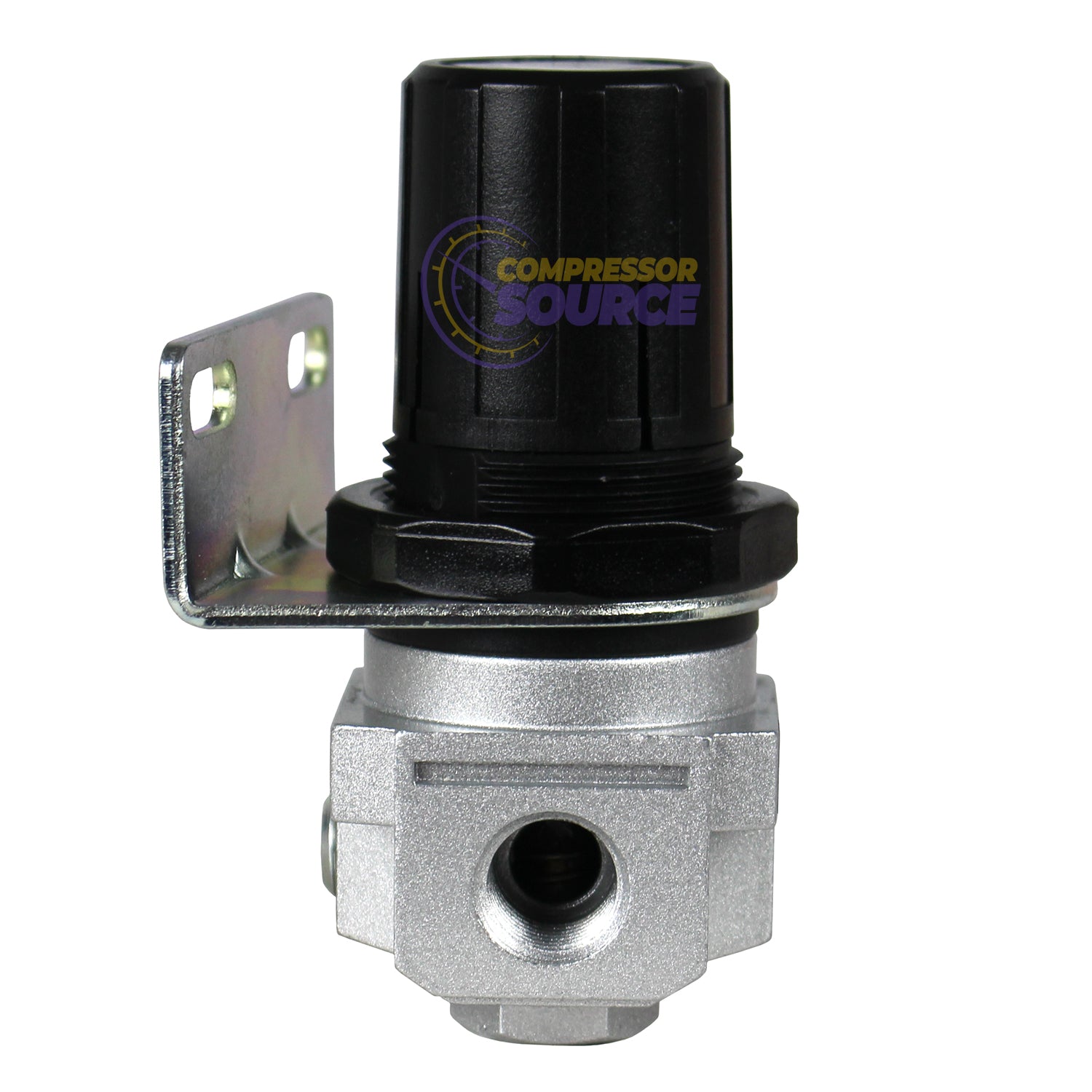

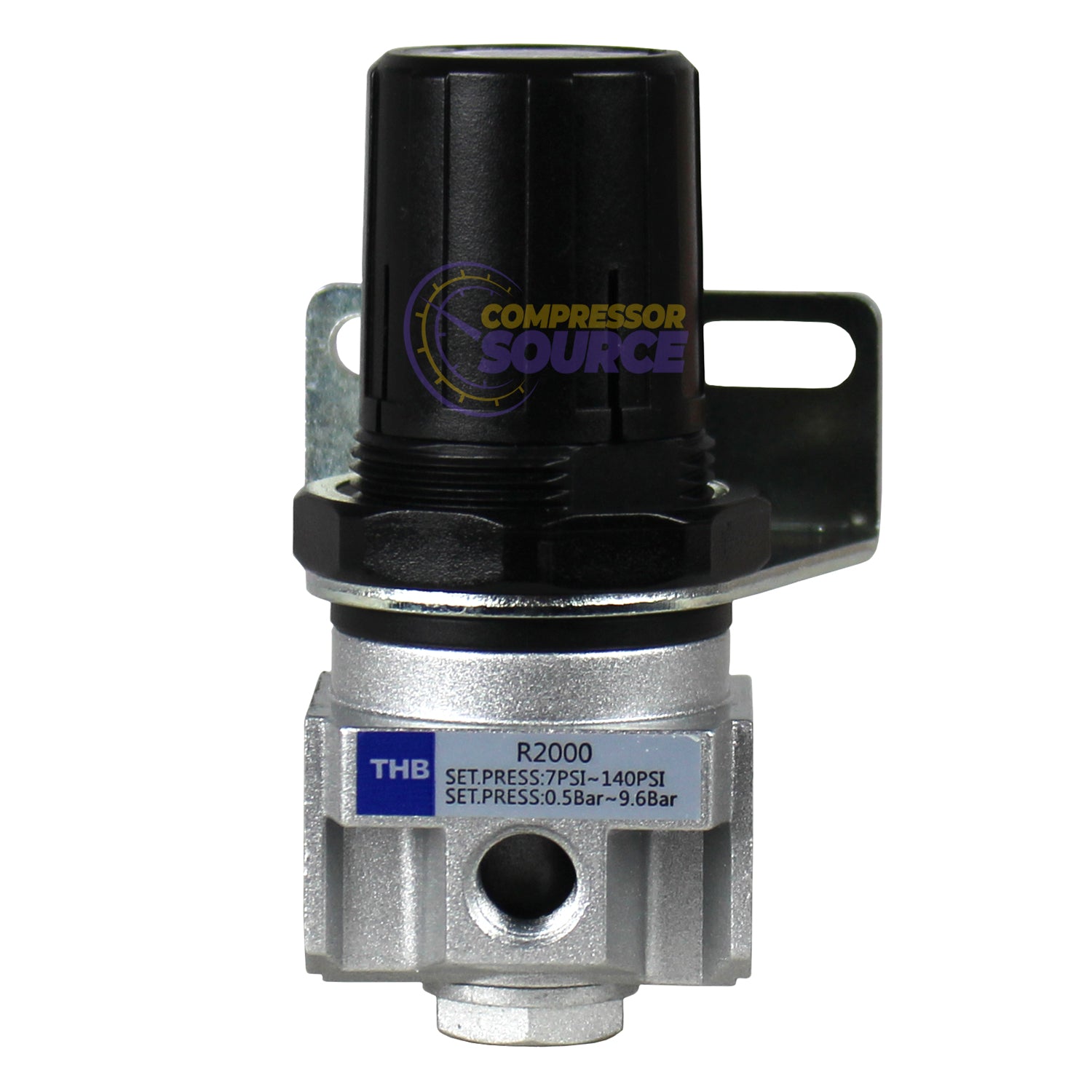

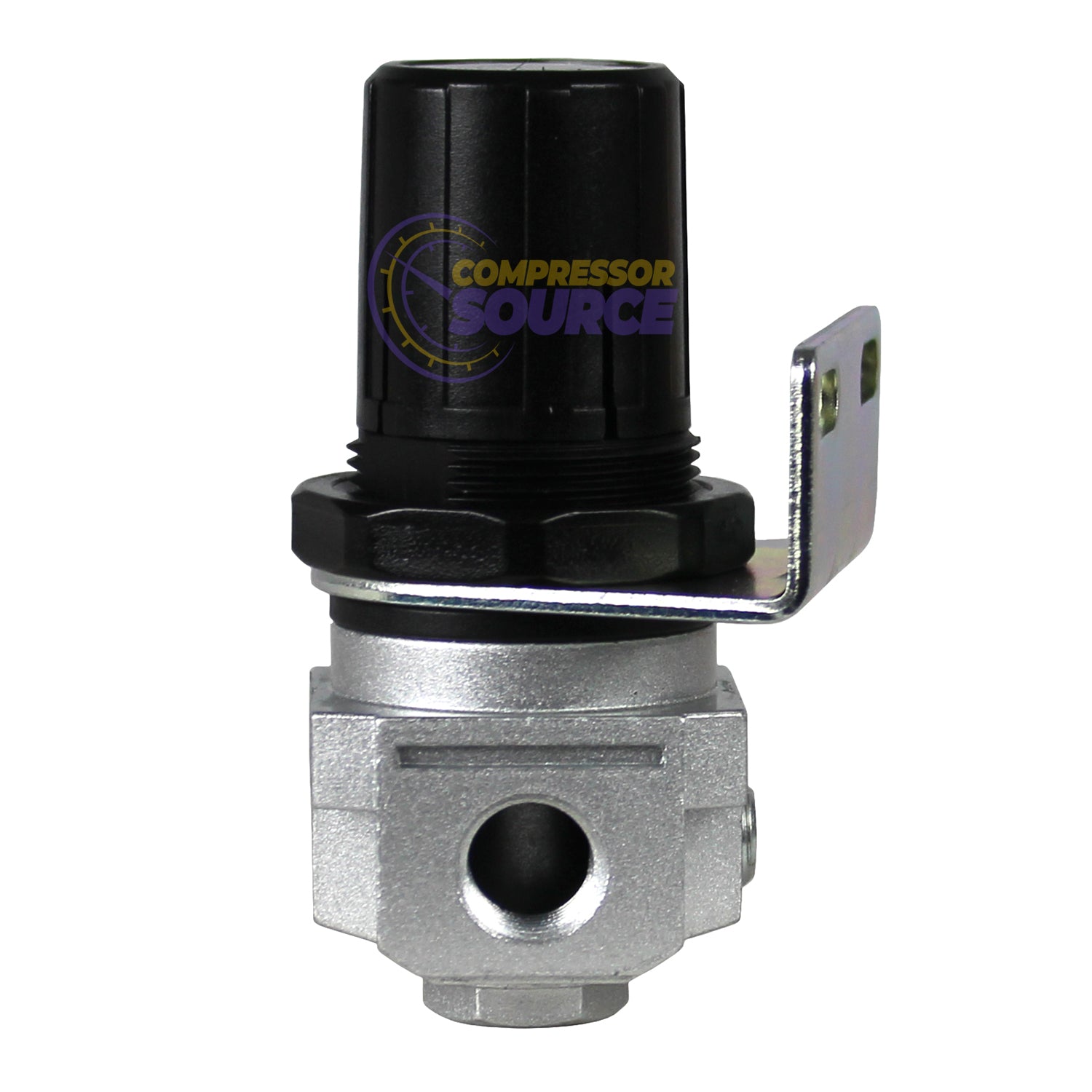

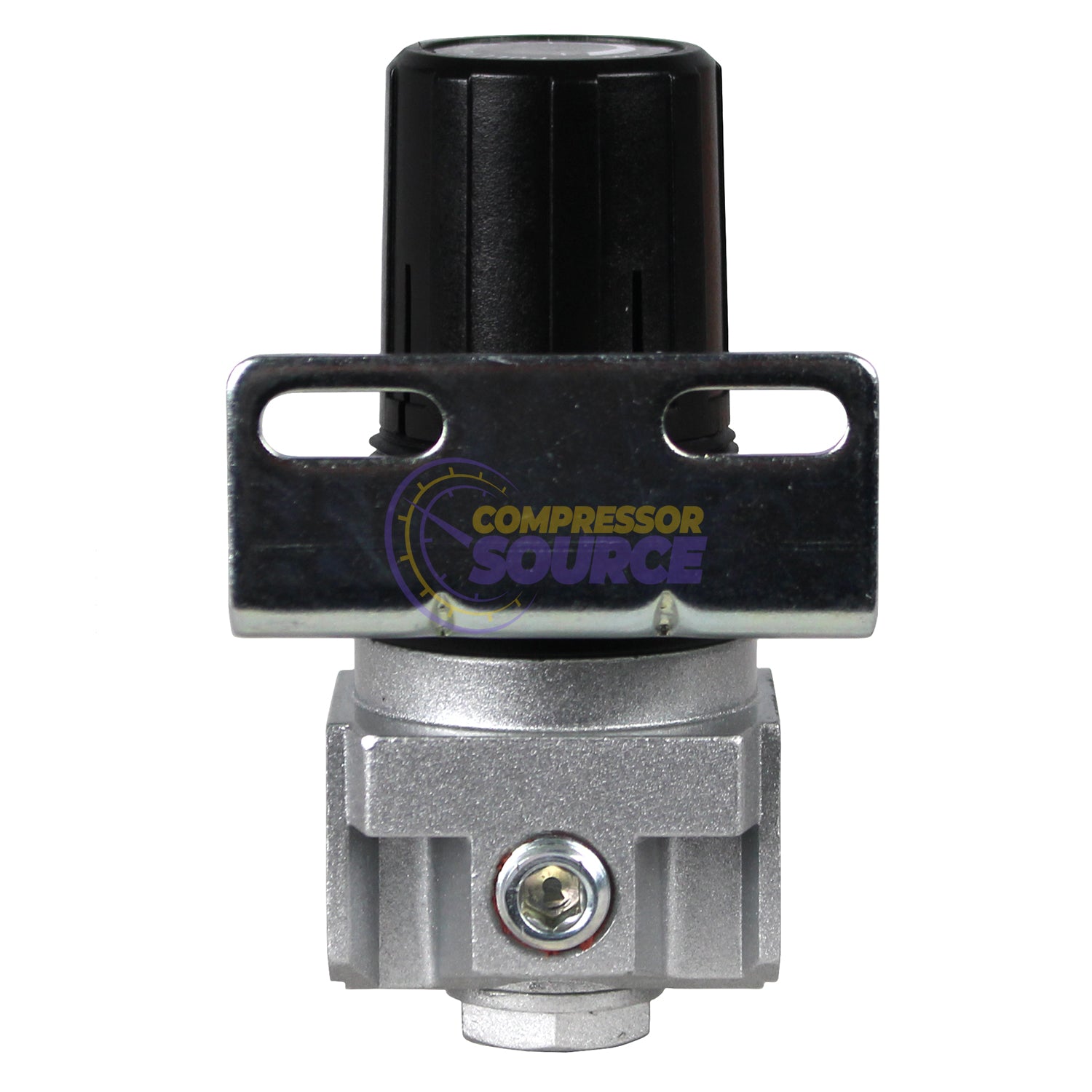

1/4" Industrial Air Compressor Pressure Regulator with Wall Mounting Bracket

Regular price $14.95
R202

Brand new high quality 1/4" NPT air compressor compressed air regulator with wall mounting bracket. This regulator is universal and can be used on any compressor that needs a 1/4" regulator. The inlet and outlet on this regulator are both 1/4" female NPT, it also features two 1/8" female NPT ports for pressure gauges. Only one gauge is needed, the other port that you don't use can be used for an extra air outlet or can be plugged with the included plug. This is a directional regulator with an arrow on the side showing which way the air needs to flow. With this regulator you can adjust your pressure from 7-150 PSI the max pressure of this regulator is 220 PSI.


Specifications:

Max pressure: 220 PSI
Adjustable Pressure: 7-150 PSI

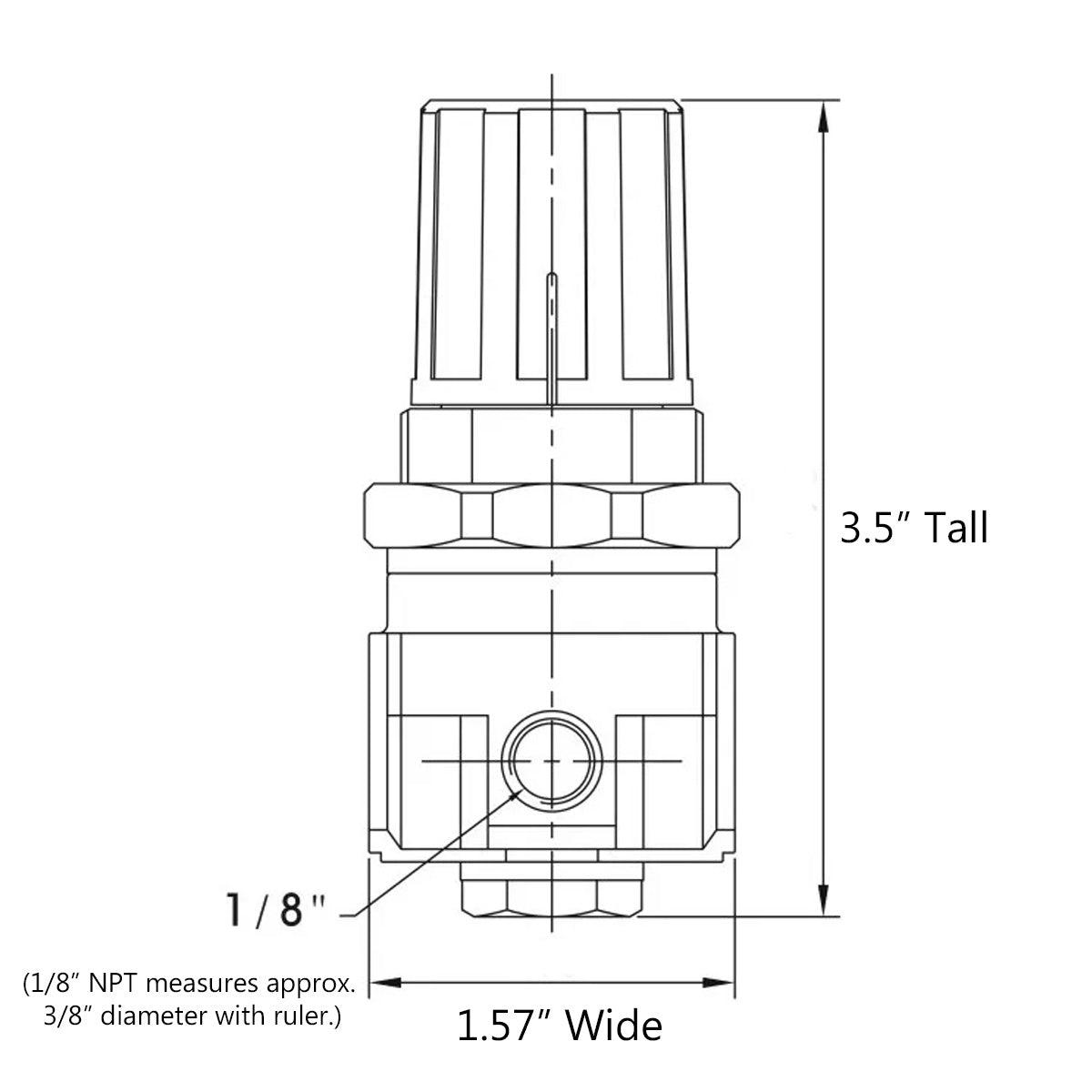

Width: 1-/2" x 1-1/2"
Height: 3-1/2"
Inlet and Outlet: 1/4" Female NPT (measures about 1/2" in diameter)
Side Outlets for Gauge: 1/8" NPT (measure about 3/8' in diameter)
