1/4" NPT Pressure Gauge Mounting Bracket with 2.5" Liquid Gauge 200 PSI Max 202L-254G

Click Thumbnails to Enlarge

1/4" NPT Pressure Gauge Mounting Bracket with 2.5" Liquid Gauge 200 PSI Max 202L-254G

Regular price $15.95
U-Clamp/202L-254G

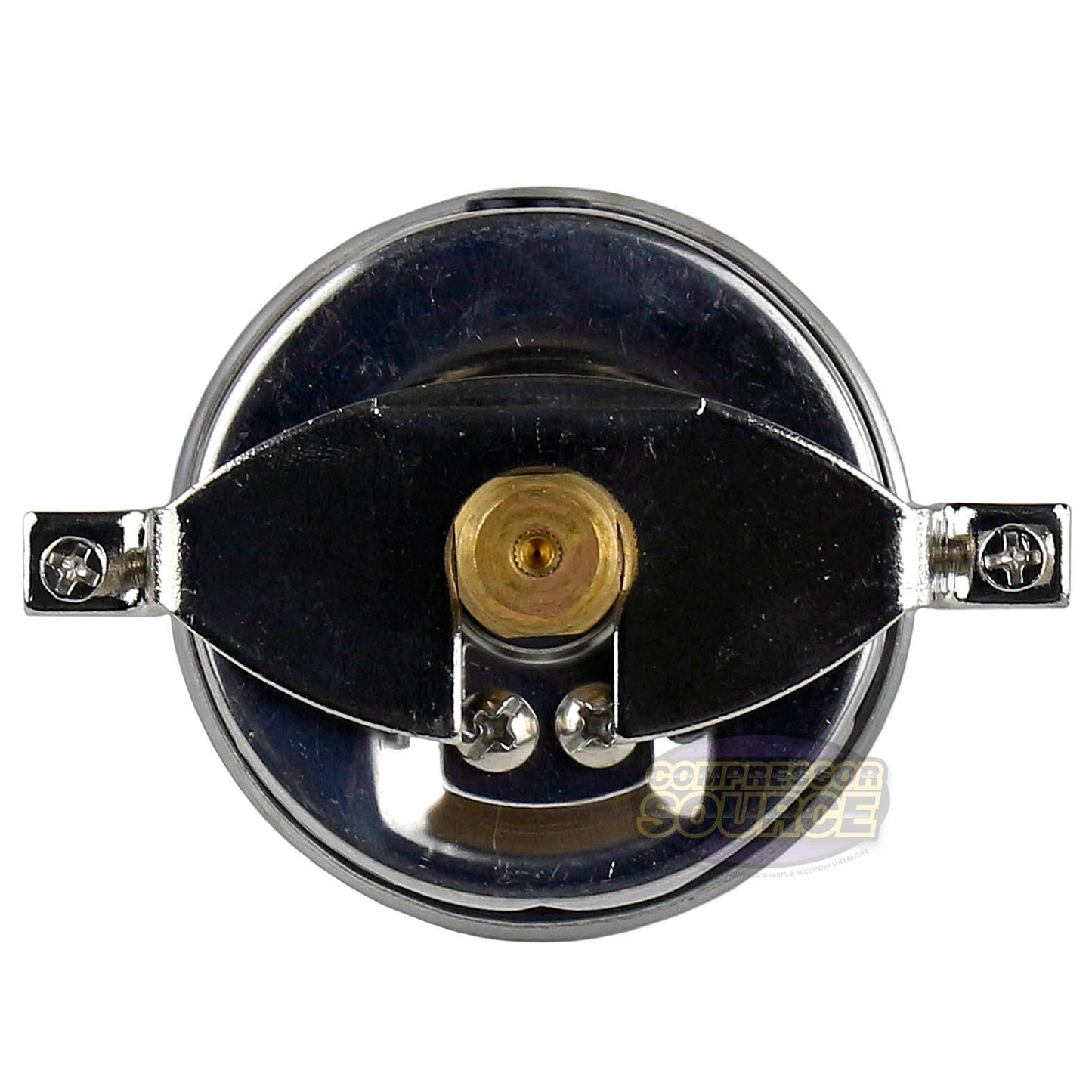

1/4" NPT Pressure Gauge Mounting Bracket with 2.5" Liquid Gauge

This pressure gauge mounting bracket is used to mount liquid-filled gauges to a panel; and with this combo pack, you get the best of both worlds. You can use this bracket with the 200 PSI glycerine filled 2.5" gauge provided which can be mounted on the 1/4" NPT slot of the U-Clamp. This chrome finished bracket comes with both screws for mounting and is ready for installment. Along with the stability of the clamp, the liquid in the gauge helps dampen the effects of pulsation and vibration while also perpetually lubricating the movement and keeping comtaminates such as dirt away from all moving parts, extending the life of your gauge.

U-clamp Features:

• Fits Gauges Up To 2.5" Wide
• Designed for 1/4" CBM Gauges
• Comes with 2 Mounting Screws
• Mounting Width: 3-1/4" Center to Center
• Chrome Finish

Liquid Gauge Specifications:

• Dial size: 2.5"
• Connection size: 1/4" male NPT which measures about 1/2" in diameter.
• Center back mount
• Stainless steel case and bezel
• Brass internals & connection (w/ built in snubber)
• Phosphor bronze bourdon tube
• Glycerine filled
• Accuracy: 3-2-3% per ANSI grade B
• Dual scale: PSI and bar (x100=kPa)
• Ambient temperature: 30 F to 160 F
• Gauge reads at 0, 20, 40, 60, 80, 100, 120, 140, 160, and 200 PSI
• Bar reading 0, 2, 4, 6, 8, 10, 11
