Brand-new Compressor Source CS2105T four-cylinder cast-iron two-stage replacement air compressor pump. This 10-horsepower pump delivers 35.3 CFM at 860 RPM, with a maximum RPM of 900. This pump is most commonly used on 80 and 120-gallon tank air compressors and can be used with 220-volt 7.5-horsepower electric motors or larger. To verify your motor is large enough, it should be 32 amps or higher at 220 volts and at least 7.5 HP (Note: When running with a 7.5 HP motor, you will have to spin the pump slower for the motor to work properly. If wanting higher CFM and spinning at over 800 RPM, a 10 HP motor is needed). This pump has a minimum RPM of 730. This pump comes complete as shown, including intake filters and flywheel.

The Compressor Source CS2105T 10 HP two-stage compressor pump is often used as a replacement for CI-10, Saylor-Beall Model 707, Industrial Gold, and Chicago Pneumatic CA2/CA2U, Ingersoll Rand 2545/2545V, and Campbell Hausfeld TX2101 compressor pumps. Popular as a Saylor-Beall style replacement compressor pump head for rebuilding workshop compressors, compatible with both gas and electric-powered air compressors.

Features:

• Cast iron cylinder and crankcase
• Equipped with a sight glass for easy viewing of the oil level
• Comes with two intake filters

Specifications:

• Cylinders: Four
• Stages: Two
• Horsepower: For use with 7.5 - 10 HP motors
• Max Recommended Working Pressure: 175 PSI
• Recommended Working Pressure: ~100 PSI
• Recommended RPM Range: 730-900 RPMs
• Max CFM: 36 CFM @ 900 RPM / 35.2 CFM @ 860 RPM (36 CFM @ 100 PSI)
• Minimum CFM: 28 CFM @ 730 RPM
• Bolt Pattern: 9-1/4" (Front to Back) x 9-5/8" (Side to Side) (Bolt pattern modification required for some replacement applications)

Because of this item's weight, it has to be shipped by freight. When ordering, please specify if it is shipping to a commercial address; otherwise, it will ship to your nearest trucking terminal for pickup. If you have questions about freight shipping and receiving, contact Compressor Source Support.

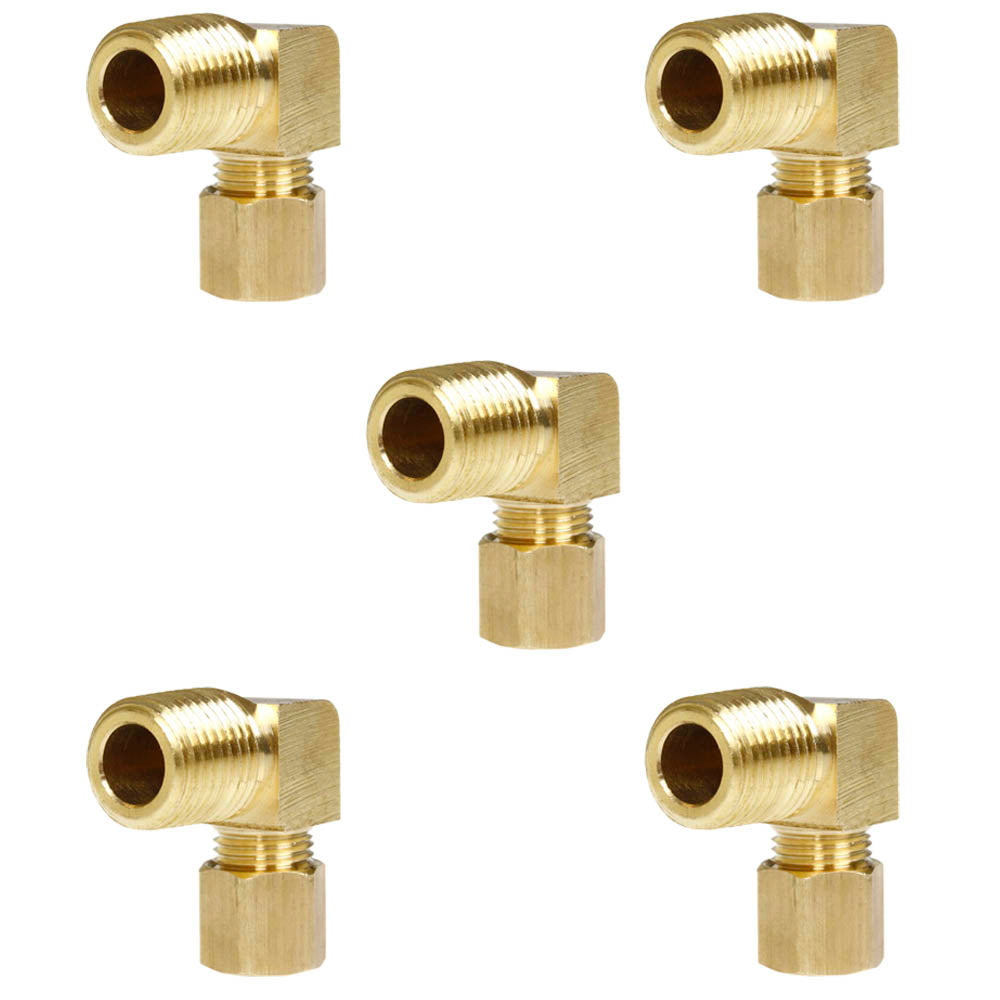

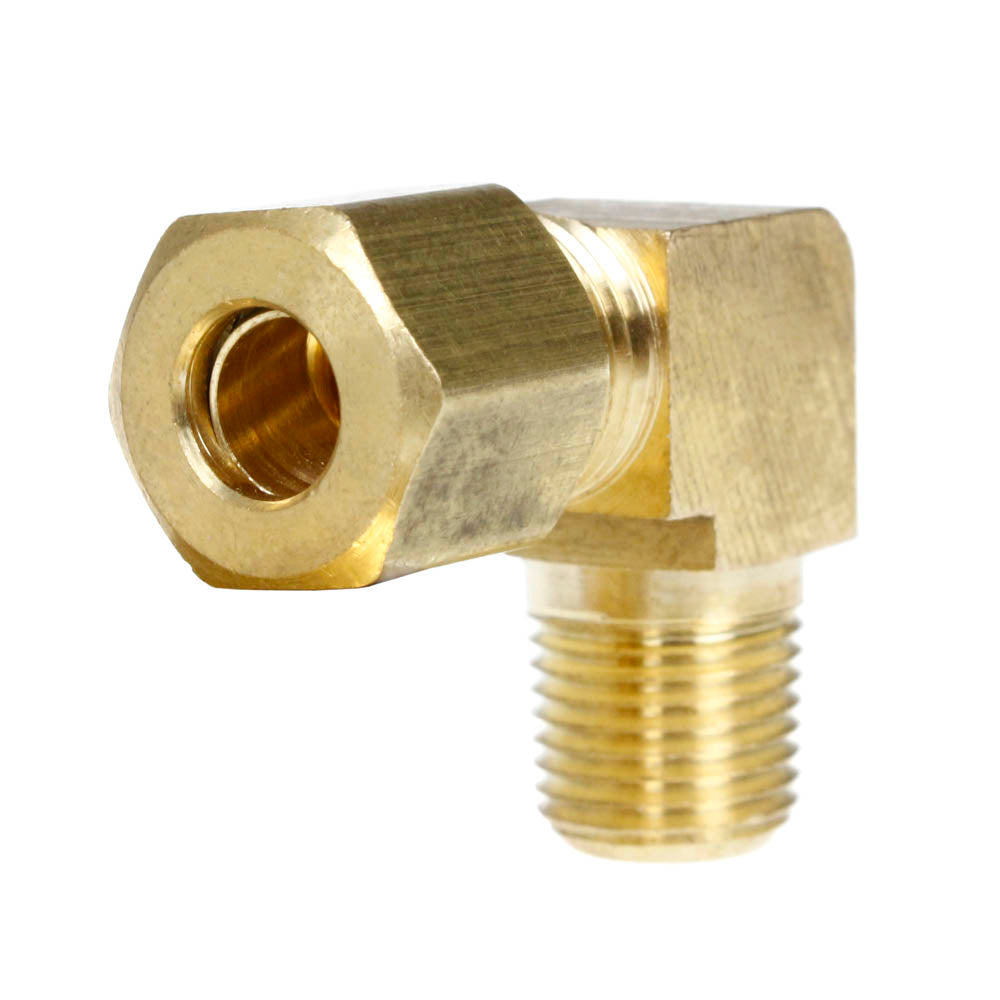

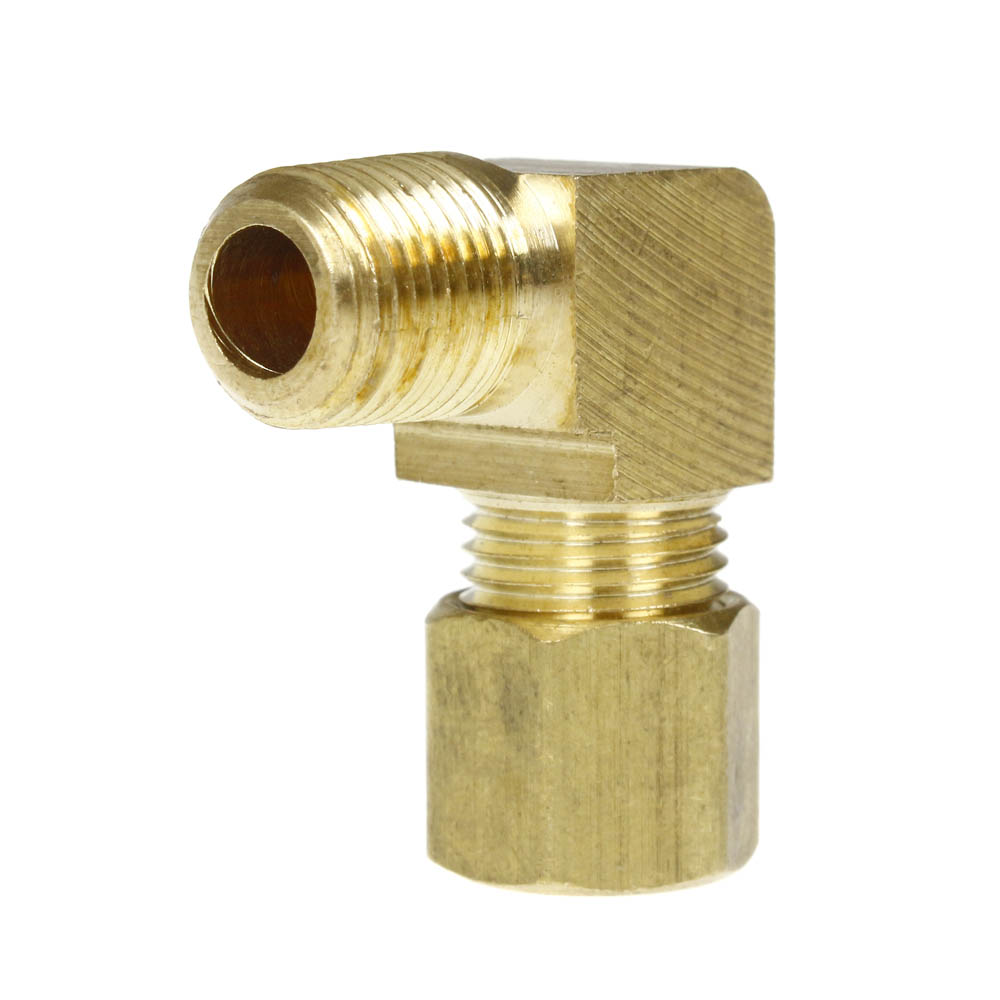

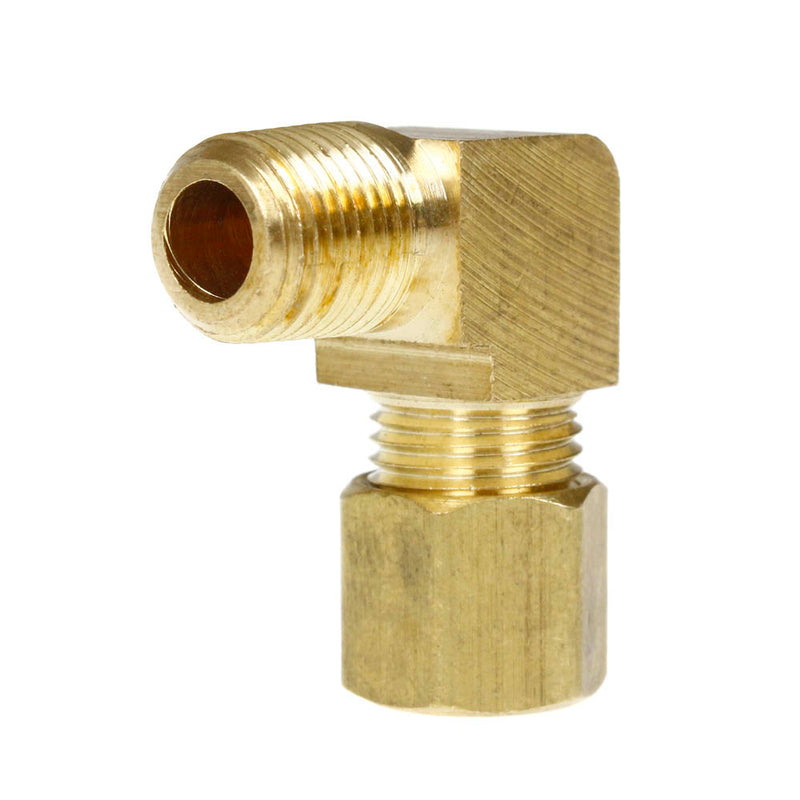

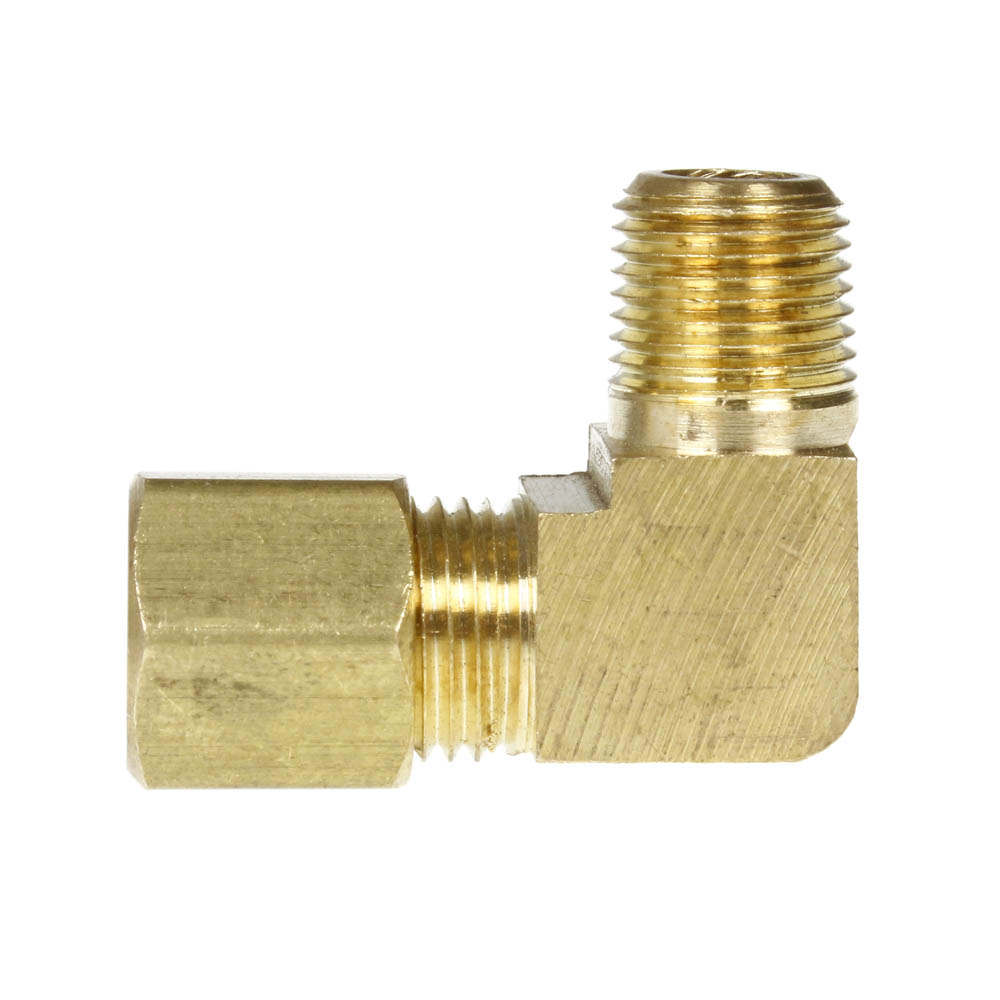

1/4" x 1/4" Tube OD x Male NPTF 90 Degree Bar stock Elbow Brass Fitting 5-Pack
