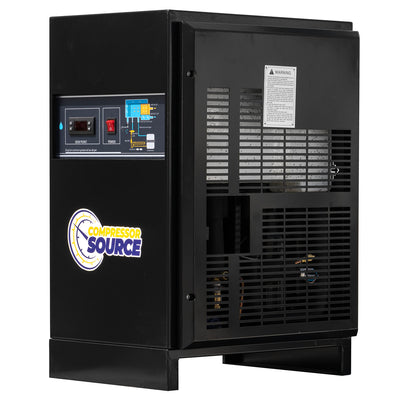

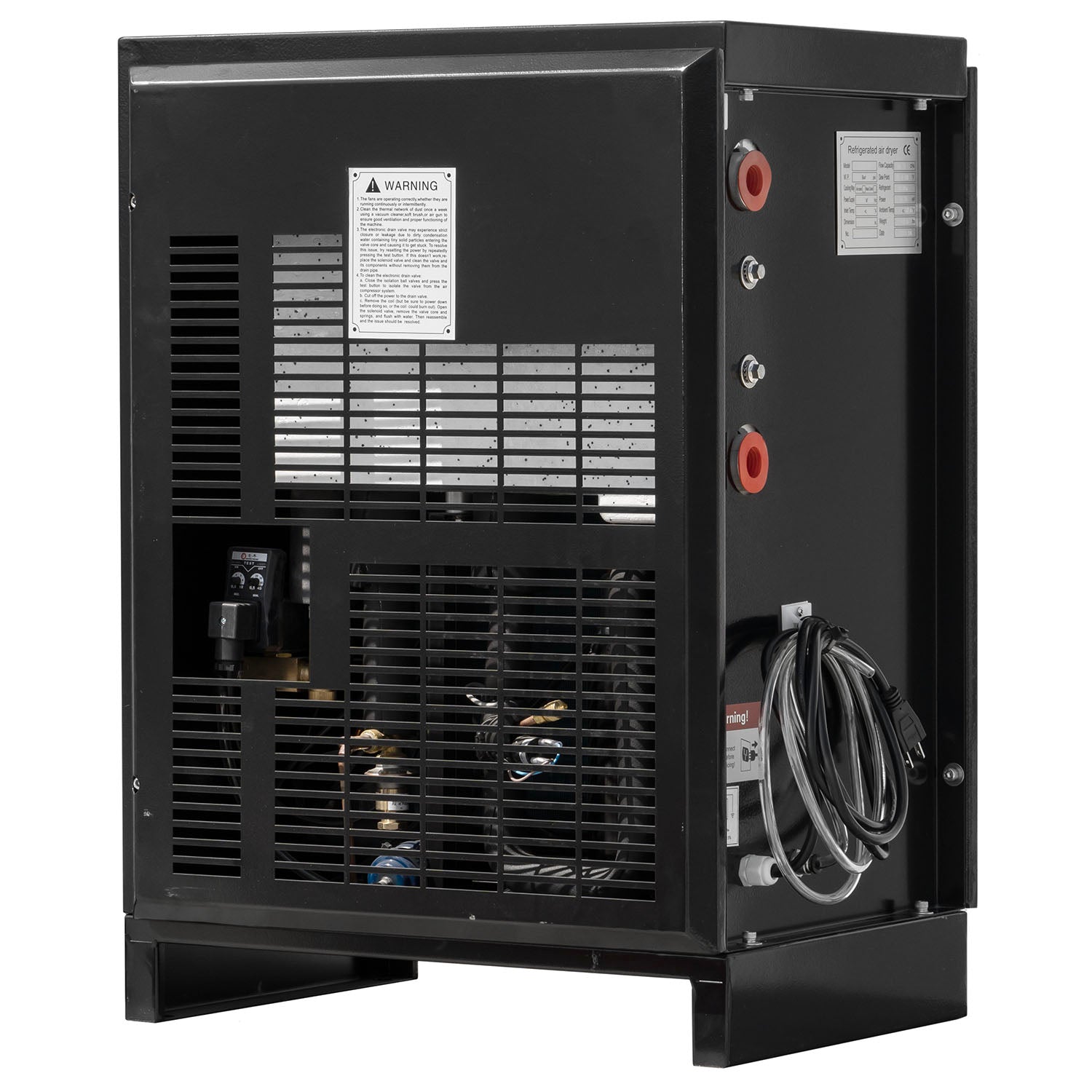

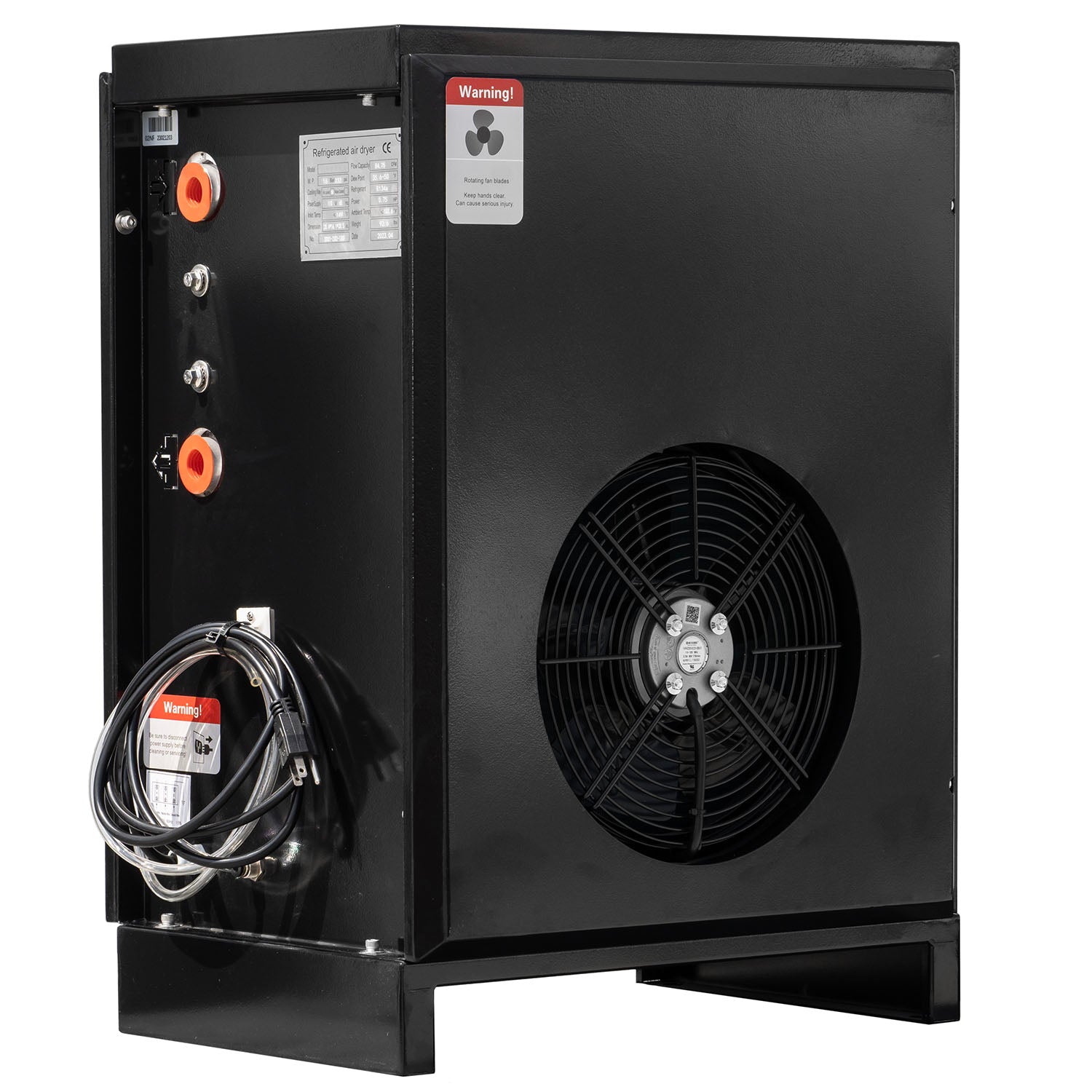

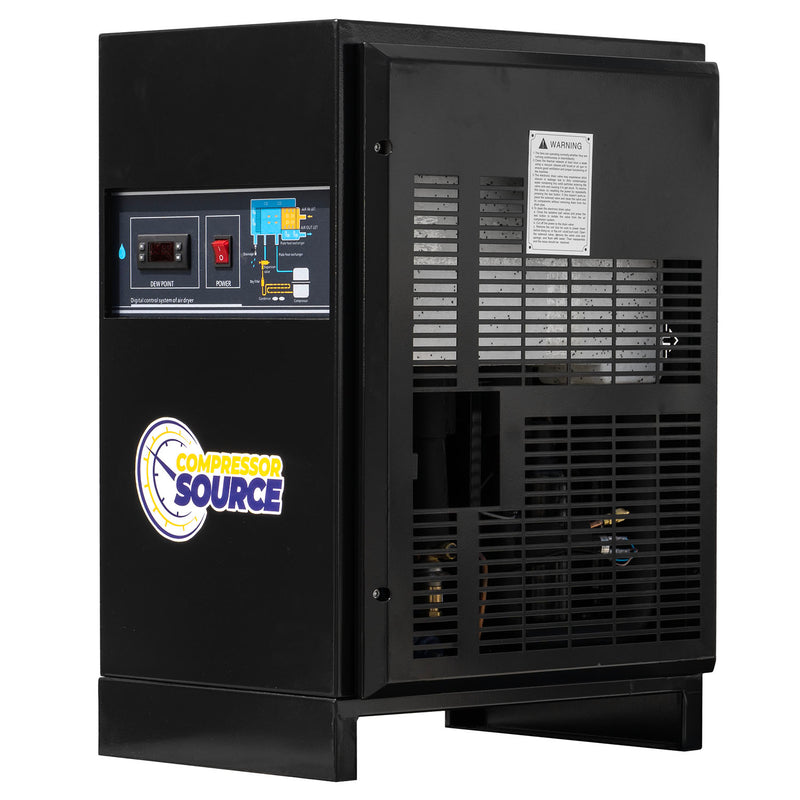

The Compressor Source CSRD-125 is a refrigerated air dryer designed to reduce moisture in compressed air systems. It is suitable for air compressors with flow rates up to 127.13 CFM, typically 20-30 HP compressors, and can also be used with smaller compressors. The unit uses R410a refrigerant and is factory charged.

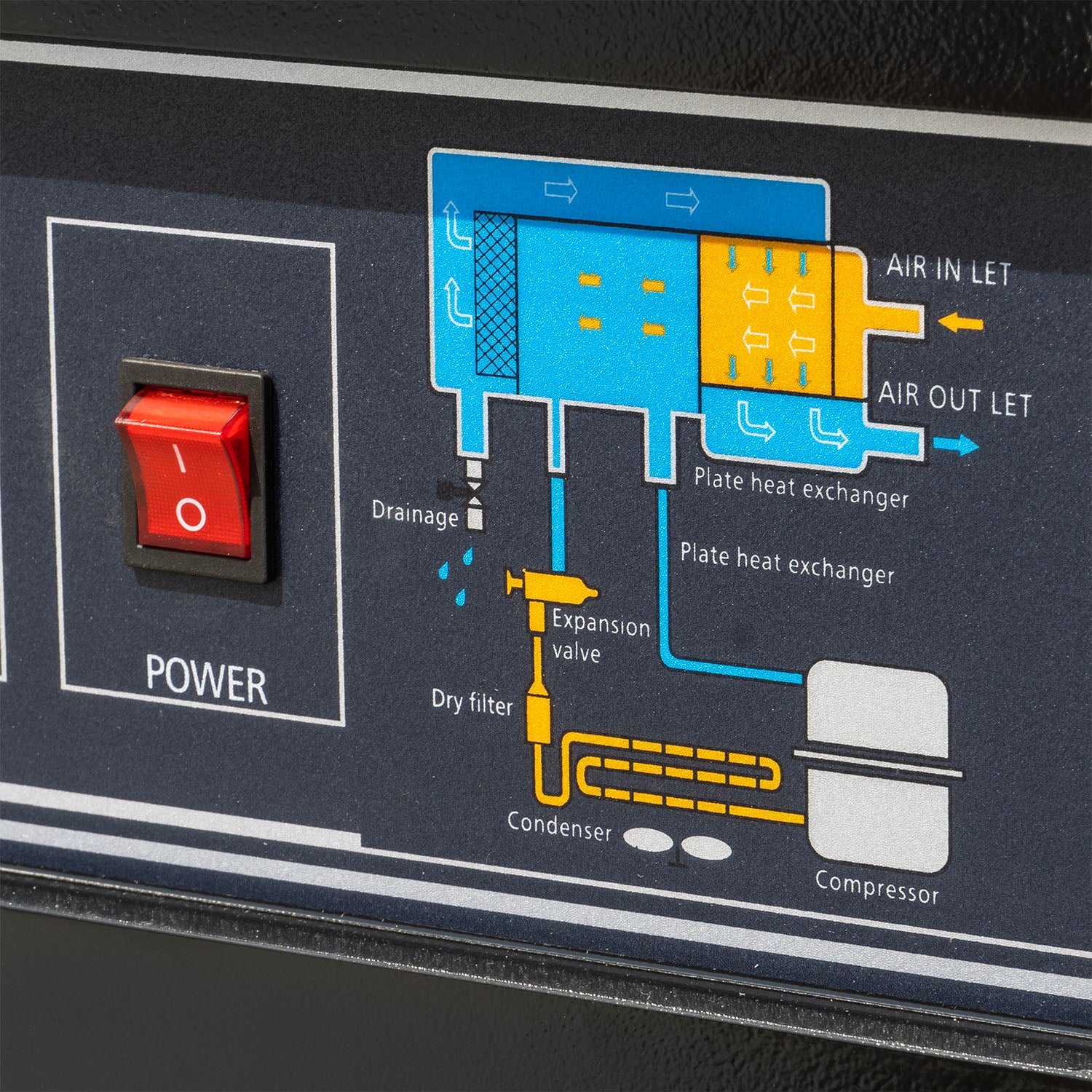

The dryer has an integrated electronic display that shows the dew point and system error codes. The pressure dew point range is 35.6°F to 50°F. An automatic electronic timer drain is included to manage condensate removal during operation. The inlet and outlet connections are 3/4" NPT for installation into standard compressed air systems.

The CSRD-125 operates on 110V power with a 1 HP output. The maximum working pressure is 232 PSI, the maximum inlet air temperature is 149°F, and the maximum ambient operating temperature is 107.6°F. The unit is intended for indoor use within the specified temperature and pressure ranges.

Shipping Note: Due to its size and weight, this product ships on a pallet via freight carrier and requires delivery to a commercial address.

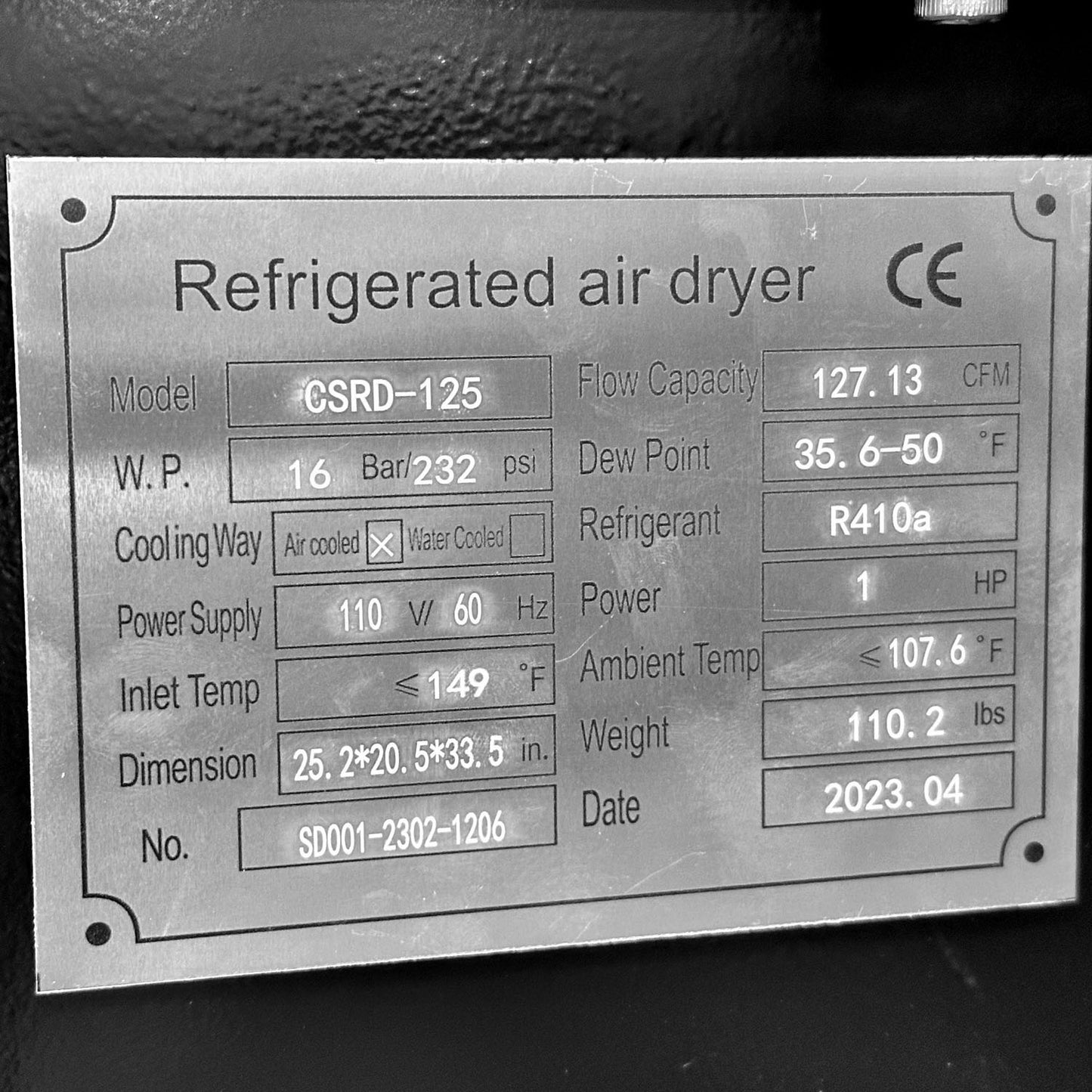

Features and Specifications:

• Model Number: CSRD-125
• Maximum Working Pressure: 232 PSI
• Voltage: 110V
• Maximum Inlet Air Temperature: 149°F
• Maximum Flow Capacity: 127.13 CFM
• Pressure Dew Point Range: 35.6°F - 50°F
• Refrigerant Type: R410a
• Output Power: 1 HP
• Maximum Ambient Operating Temperature: 107.6°F
• Weight: 110.2 lbs
• Overall Dimensions: 25.2 in. x 20.5 in. x 33.5 in.
• Inlet and Outlet Connections: 3/4" NPT
• Drain: Automatic Electronic Timer Drain
• Display: Integrated Electronic Display for Dew Point and Error Codes
