25 HP 3 Phase Magnetic Starter NEMA 1 208-230V 54 - 80 Amp P80T

Low stock: 2 available
SKU: MSP80T
$249.95
60-day returns No-hassle policy
US-based support Mon–Fri 8:30–4:30 CT
Same-day shipping Order by 1:30 PM CT
45+ years expertise Compressor specialists

25 HP Three Phase 208-230 Volt Magnetic Starter

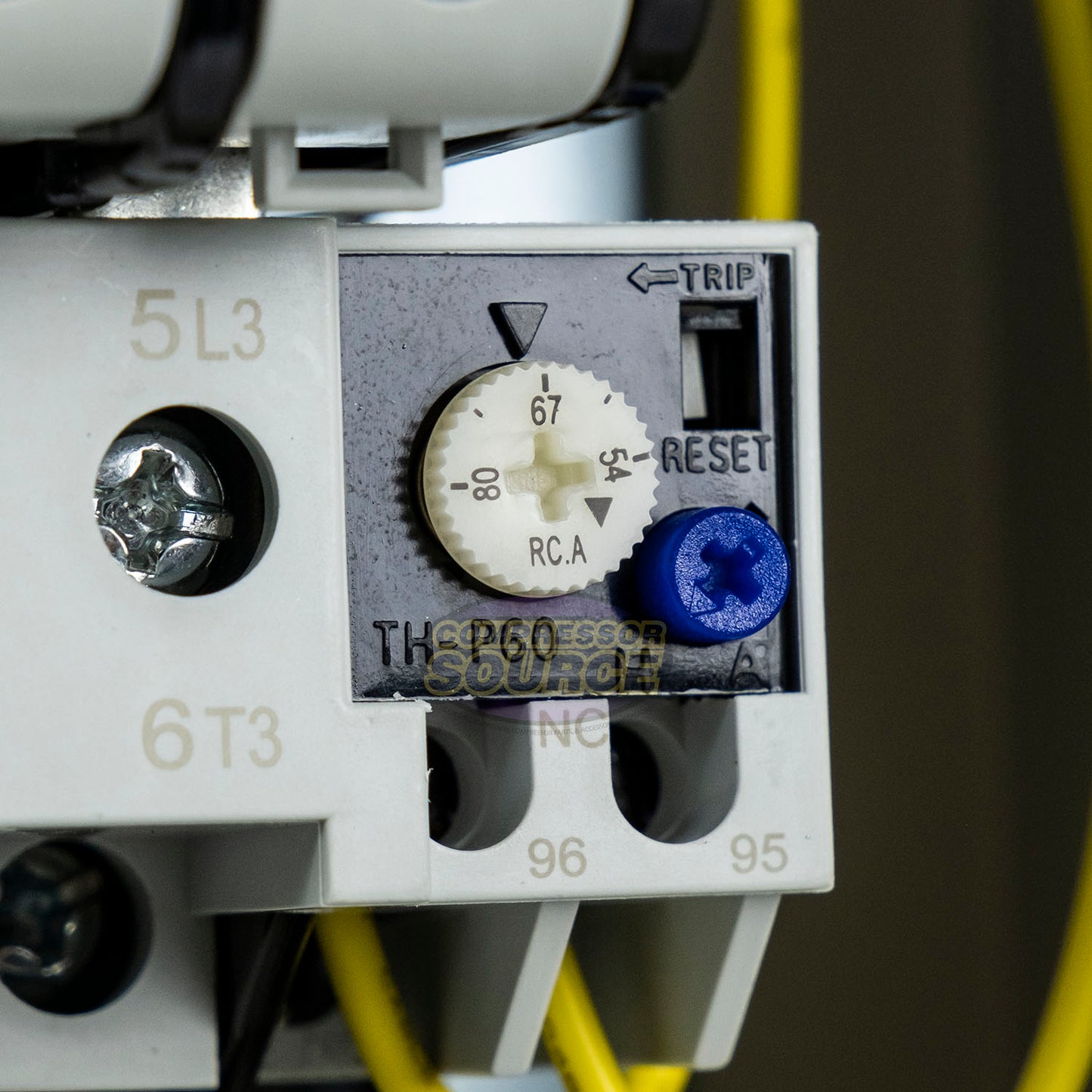

Brand new 25 horsepower three-phase 208-230-volt magnetic starter with a steel housing. This is a great quality starter with a built-in overload which is adjustable from 54-80 amps. Also has a manual reset button that can be switched to auto-reset. The steel housing has six punch-out holes for incoming and outgoing wires that measure 1-3/8" across. Also included are six rubber surround grommets for the 1-3/8" holes to protect the wires if needed. Starter comes with wiring instructions.

PROFESSIONAL INSTALLATION IS REQUIRED

Specifications:

• Dimensions H x W x D: 13.25" x 7.5" x 6.5"
• 25 HP
• 208-230 Volts
• Three Phase
• Adjustable Overload Relay Rating: 54-80 Amps

If you are using this starter on an air compressor, you will also need a pressure switch to control the starter. In this application, the pressure switch controls the on and off of the starter depending on the pressure setting of the pressure switch.

Due to this being an electrical item, there is no warranty after installation.

Overview

Brand Shihlin Electric
Horsepower Maximum motor horsepower this starter is rated to control at the listed voltage and phase. 25.0 HP
Phase Three Phase
Voltage 208-230 V
Frequency 60 Hz
Overload adjustment range The overload relay’s adjustable trip-current band. Set the dial to roughly 115% of the motor’s full-load amps. 54.0–80.0 A
Enclosure NEMA 1 = general-purpose indoor. NEMA 4X = washdown / outdoor, dust- and corrosion-resistant. NEMA 1
Country of origin Where this starter is manufactured, per the manufacturer / supplier documentation. China
Catalog / part number P80T

Overload Protection

Reset mode Manual reset requires pressing the button after a trip; automatic re-closes on cooldown. Manual (switchable to automatic)

Enclosure & Physical

Enclosure material Steel
Dimensions (H × W × D) Approximate enclosure size from the manufacturer catalog. 13.25″ H × 7.5″ W × 6.5″ D

Ratings & Compliance

Application notes For air-compressor use, control the starter with a pressure switch (sold separately).
