3 HP 3 Phase Electric Motor 1800 RPM 182T Frame TEFC 230/460V Premium Efficiency

Click Thumbnails to Enlarge

3 HP 3 Phase Electric Motor 1800 RPM 182T Frame TEFC 230/460V Premium Efficiency

Regular price $379.95
PEWWE3-18-182T

Brand new 3 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 182T frame.

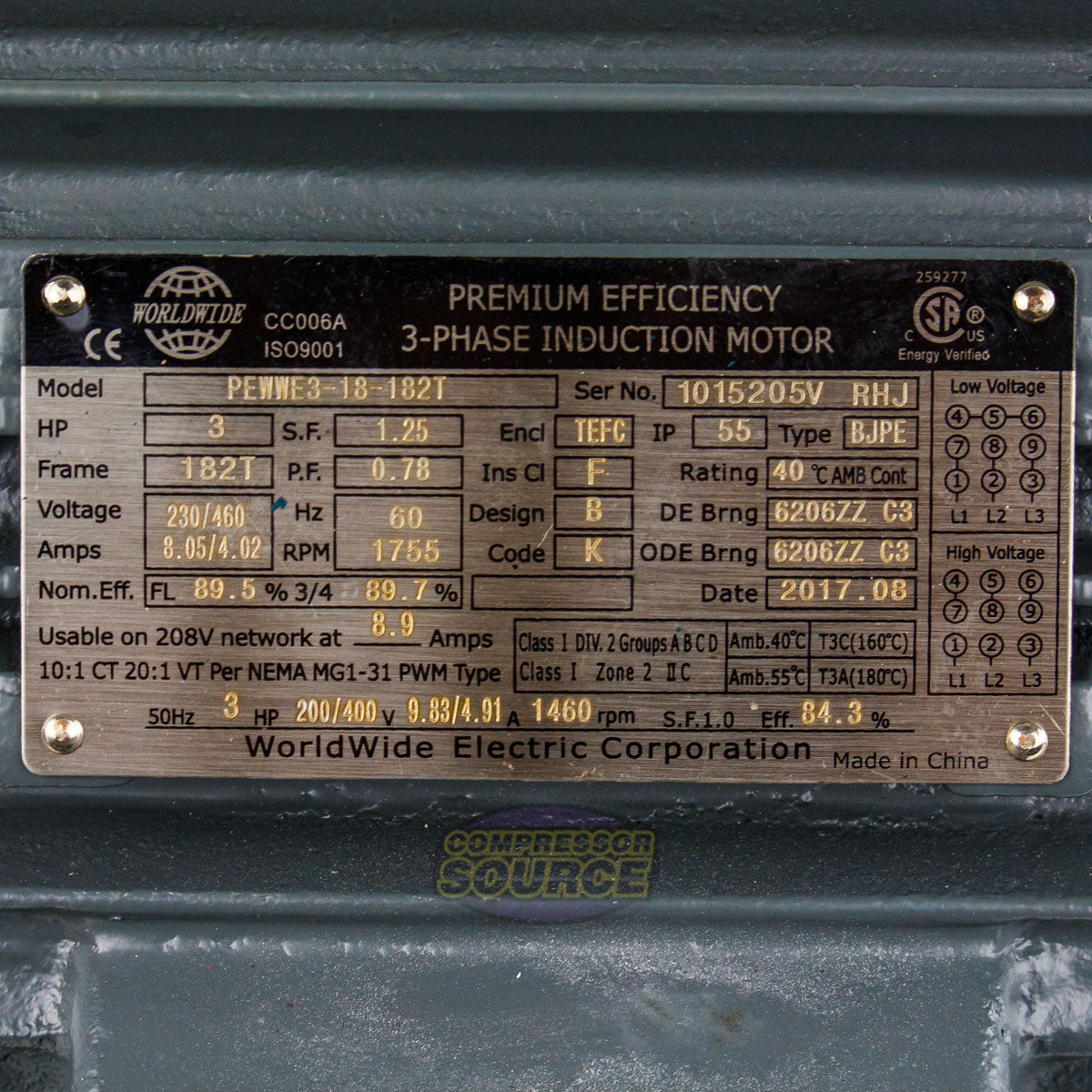

Specifications for PEWWE3-18-182T:

• 3 Horsepower
• 3 Phase
• TEFC / IP55 Fully Enclosed
• 182T Frame
• Service Factor 1.25
• Class F Insulation
• 85.9 lbs
• 208-230/460 Volt
• 1800 RPM  (Full Load Speed 1755)
• Fan Cooled
• Class F Insulation
• Worldwide Electric Brand
• Shaft Length: Approximately 2 7/8"
• Keyed 1 1/8" Diameter Shaft
• Current: AC
• Full Load Amps: 8.05/4.02 (Usable on 208V network at 8.9 amps)
• 60 HZ
• Rotation: Bi-Directional
• Shaft Material: 1045 Carbon Steel
• Nema Design B
• Max Temp: 40 Degrees C
