5 HP 2 Stage 16-19 CFM Air Compressor Pump CI-5
Regular price
$895.00
Out of stock
5 HP 2 Stage 2-Cylinder 19 SCFM Air Compressor Pump CS1105T
View →
Need it now? Try this nearly identical alternative.
The CS1105T is an in-stock 5 HP two-stage pump in the same performance class.
5 HP 2 Stage 2-Cylinder 19 SCFM Air Compressor Pump CS1105T
View →
The CI5 is a 5–7.5 HP two-stage, two-cylinder cast-iron air compressor pump rated at 175 PSI. It delivers 18 ACFM at 790 RPM on a 5 HP motor and 24 ACFM at 910 RPM on a 7.5 HP motor. It has an intercooler between stages, disc valves and splash lubrication, and can be driven by an electric motor or a gas engine.
Replacing an existing pump
The CI5 is a common replacement for the Industrial Gold CA1, Saylor Beal 705 and Compressor Source CS1105T. Before you order, check three things on your old pump: the mounting bolt pattern (7.75" x 9" on the CI5), the discharge connection (3/4" NPT) and the flywheel rotation. The CI5 turns counterclockwise when you're facing the flywheel, so a three-phase motor may need two leads swapped to match.
Setting it up
Pair the CI5 with a 5 or 7.5 HP compressor-duty motor and a tank of about 80 gallons. The 16.9" flywheel takes two B-section belts. To reach the rated 790–910 RPM, a 1750 RPM motor needs a pulley of roughly 7-5/8" to 8-3/4" O.D. Our Pulley Size & RPM Ratio Calculator works out the exact size for your motor. Set belt tension so the belts deflect about 1/2" under 10 lb of force midway between the pulley and flywheel.
As a splash-lubricated pump, the CI5 is designed for a 70% duty cycle. Don't run it longer than 45 minutes at a time without a 20-minute rest. Install it indoors with at least 18" of clearance from walls, in an ambient temperature of 30–104°F.
The pump ships with its flywheel, intake air filter, oil sight glass, intercooler and ASME safety valves installed. Oil is not included. Fill it with 2.5 quarts of 30W non-detergent compressor oil, to the halfway mark on the sight glass, before the first start-up. A gallon of our MAG1 ISO-100 compressor oil covers the first fill with some left over for top-ups. Change the oil every 3 months or 500 hours, whichever comes first.
Shipping and warranty

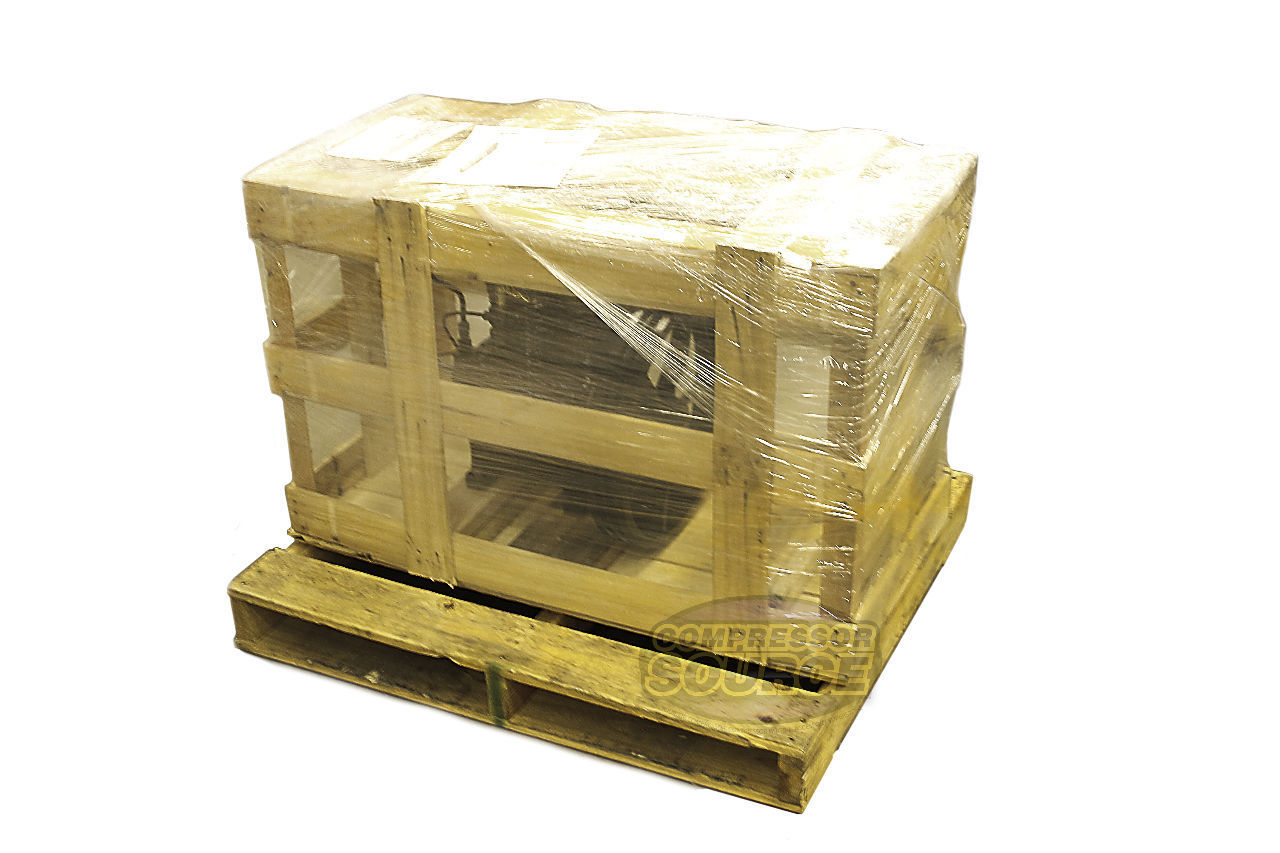

Each CI5 is custom-crated and ships by LTL freight to the lower 48 states only. See our Freight Shipping Policy for delivery details and residential surcharges. The pump has a 1-year warranty.
Performance
| Horsepower | 5 – 7.5 HP |
|---|---|
| Stages | Two Stage |
| Cylinders | 2 |
| Bore × stroke Cylinder bore diameter × piston stroke length. Two-stage pumps list the low- and high-pressure bores. | 4.13" & 2.16" x 3.5" |
| Air delivery Air delivered at the stated discharge pressure. | 18.0 CFM @ 790 RPM (24 ACFM at 910 RPM) |
| Max pressure | 175 PSI |
| Pump speed Recommended operating speed range of the pump. | 790 – 910 RPM |
| Duty cycle Share of each run cycle the pump can run before it needs to rest and cool. | 70% (max 45 min run, then 20 min off) |
Drive & Belt
| Flywheel O.D. Outside diameter of the pump flywheel. Paired with the motor pulley O.D. to set pump speed. | 16.9″ |
|---|---|
| Flywheel rotation Direction the flywheel must turn, viewed facing the flywheel. Wire the motor to match. | Counterclockwise |
| Belt section | B-Section |
| Grooves | 2 |
Mounting & Dimensions
| Overall dimensions (L × W × H) | 19.6″ × 16.9″ × 23″ |
|---|---|
| Weight | 180.3 lb |
| Mounting bolt pattern Center-to-center spacing of the mounting-foot bolt holes. | 7.75" x 9" |
Connections
| Air outlet | 3/4" NPT↳ Compatible hose: 3/4" x 24" Stainless Steel Compressed Air Line Metal Flex Hose Compressor Tube — $64.95 |
|---|---|
| Intake thread | 1" NPT |
Included & Maintenance
| Head unloaders | No |
|---|---|
| Flywheel included | Yes |
| Air filters included | One↳ Replacement element: A424 Air Compressor Intake Filter Paper Element — $4.95 |
| Sight glass | Yes |
| Lubrication | Splash |
| Oil included | No |
| Recommended oil | 30W Non-Detergent Compressor Oil↳ We stock: MAG1 Air Compressor Oil ISO-100 SAE-30W Non-Detergent 1 Gallon Jug — $24.95 |
| Oil fill level | 2.5 qt (fill to ½ on the sight glass) |
Sizing Guidance
| Recommended tank size | 80 Gallons |
|---|---|
| Recommended motor | 5 – 7.5 HP |
Identification
| Material | Cast Iron |
|---|---|
| Country of origin | China |
| Model / part number | CI5 |
| Warranty | 1-Year |
Commonly Replaces / Fits
| Saylor Beal 705 |
| Industrial Gold CA1 |
| Compressor Source CS1105T |
