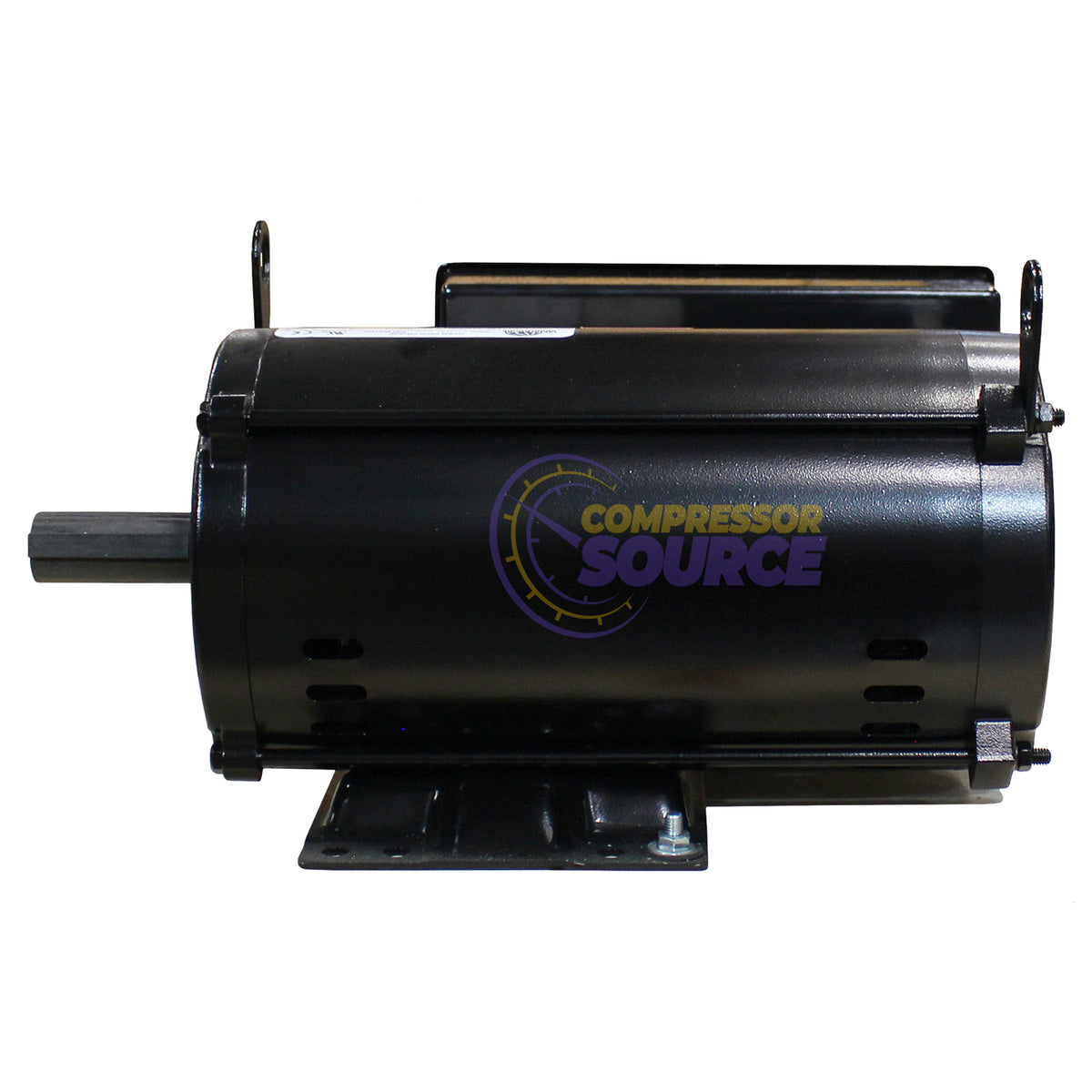

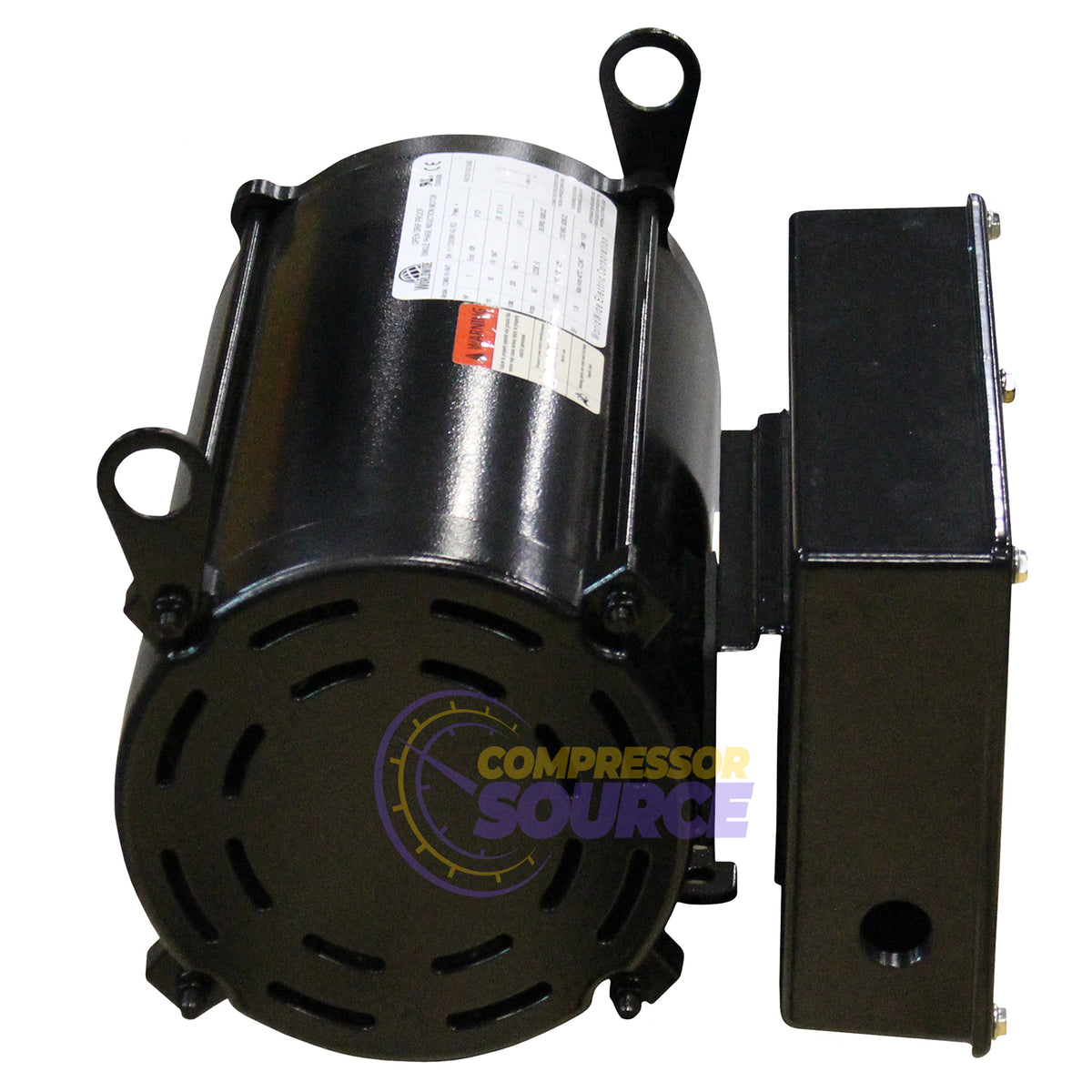

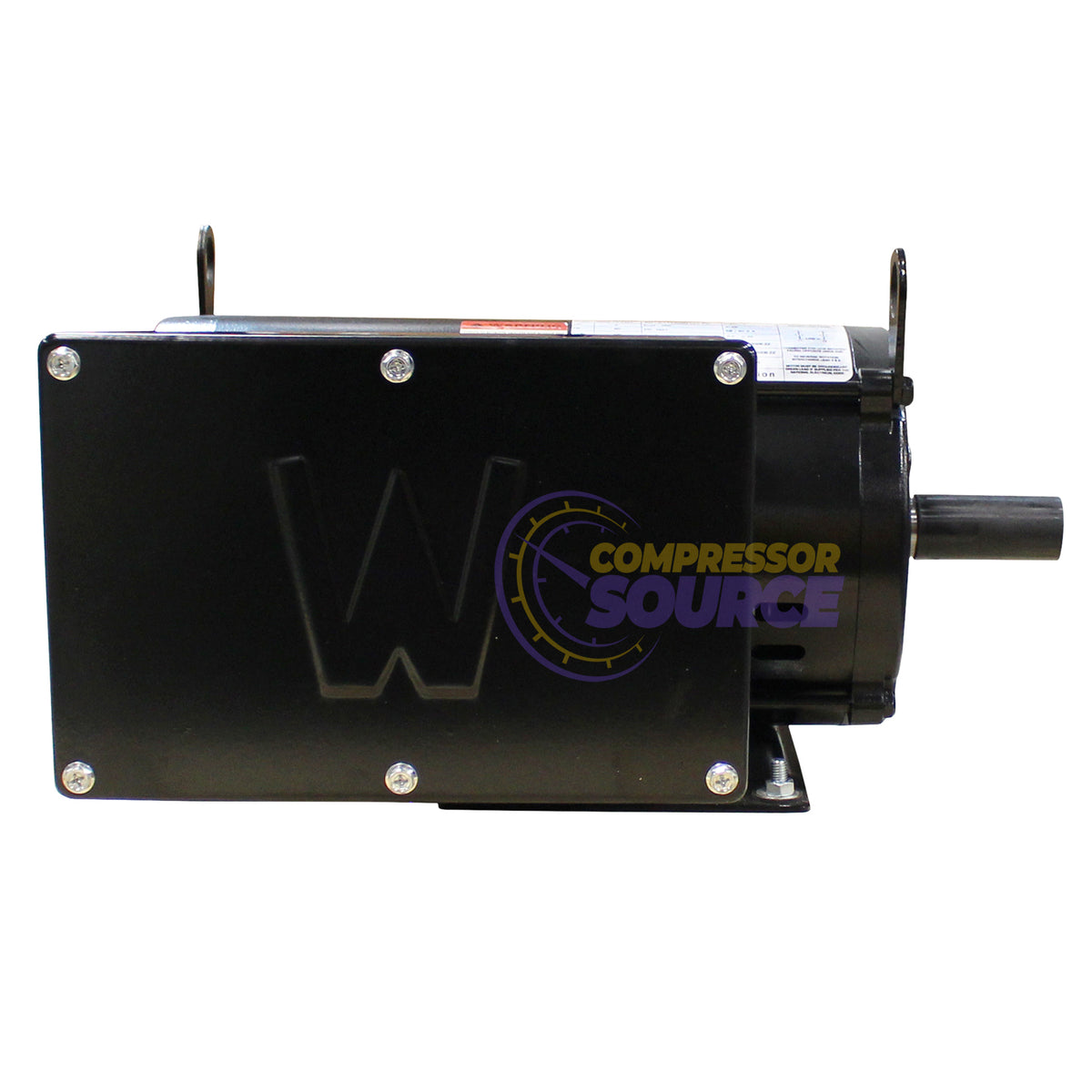

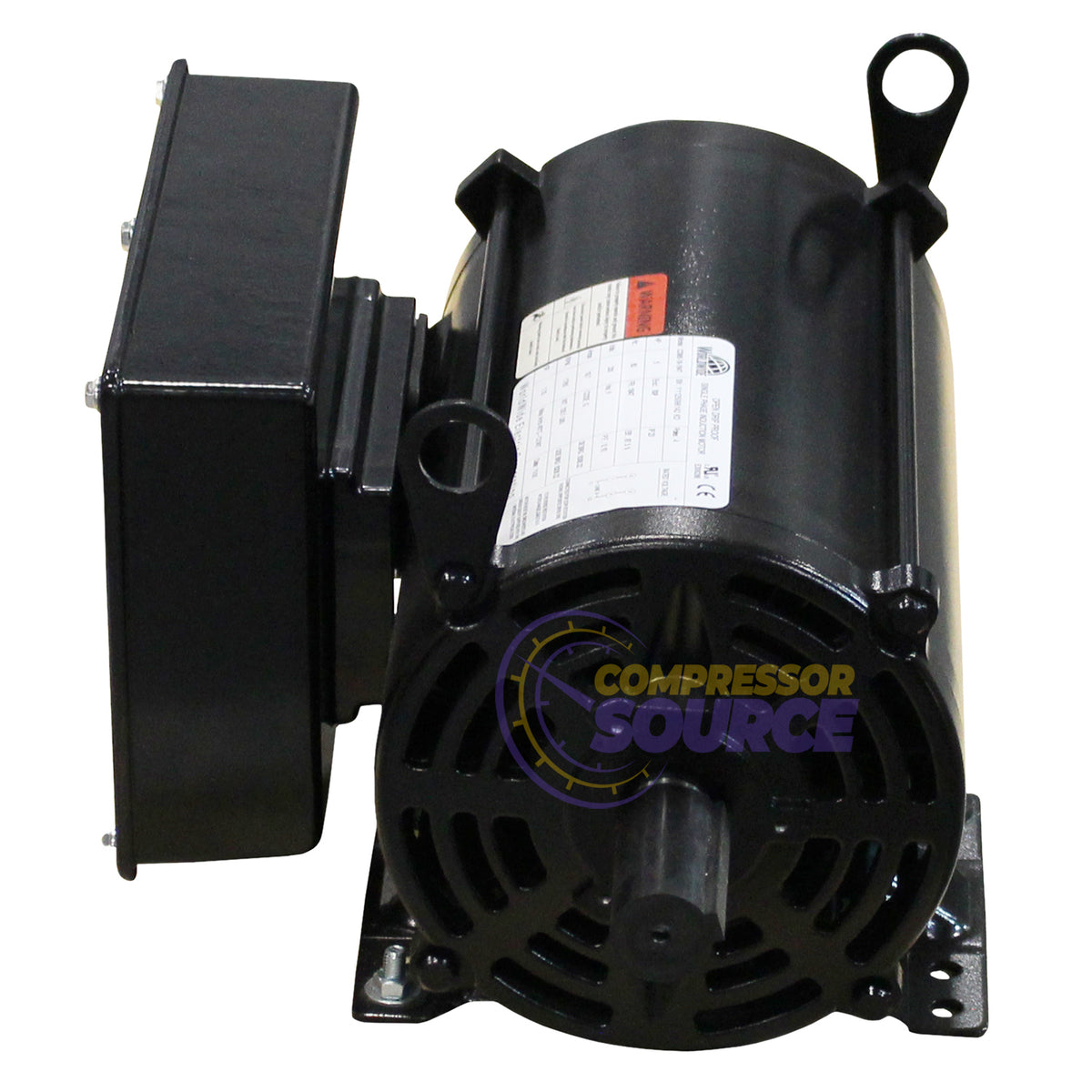

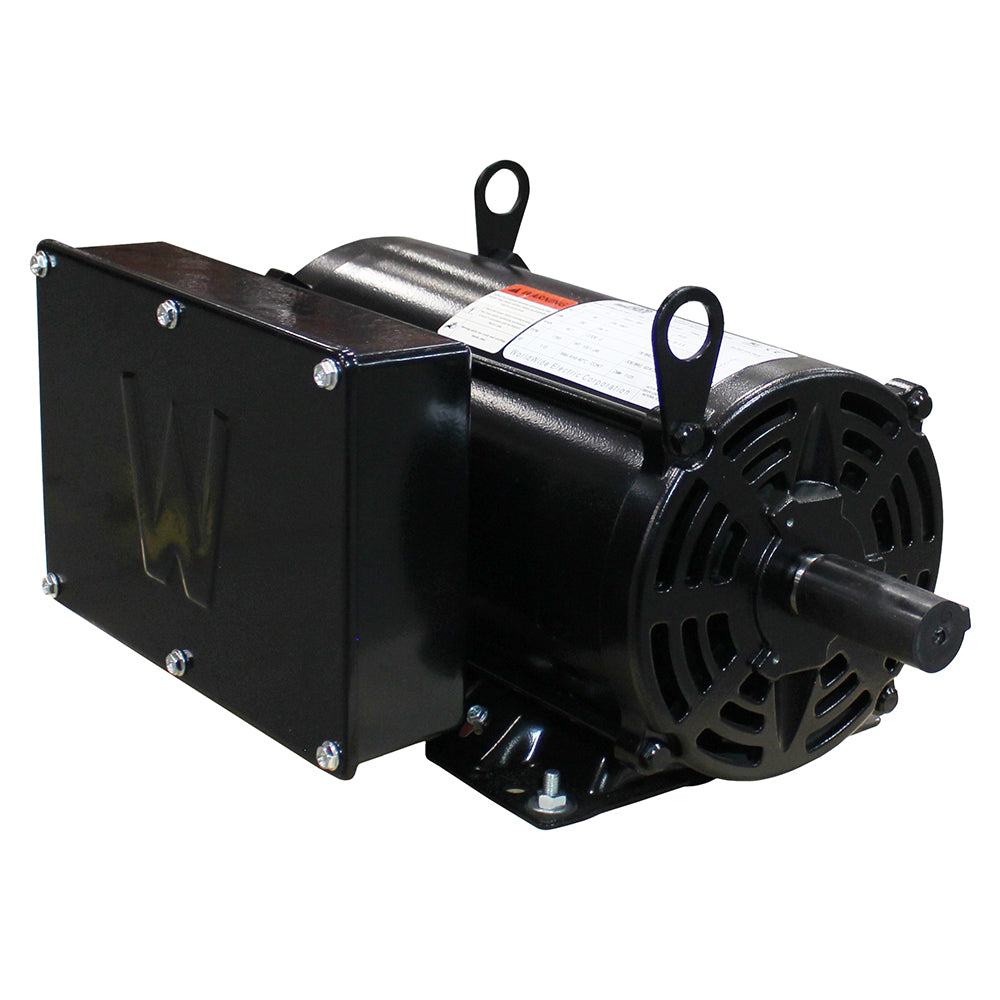

5 HP 1 Phase Compressor Duty Electric Motor 1765 RPM 184T Frame 208-230V ODP CDM5-18-184T
Regular price
$659.95
The WorldWide Electric CDM5-18-184T is a 5 HP single-phase air compressor duty electric motor built to handle the high starting load and torque that air compressors demand. Its capacitor-start, capacitor-run design gets a loaded pump turning without bogging down, it runs on 230V or 208V service, and it can be wired to run in either direction (CW or CCW).
Replacing a compressor motor? Match the frame, shaft, and mounting to your existing motor — and if you change the RPM, resize the pulley or sheave to keep your compressor's CFM. Not sure it will fit your setup? Contact us with your old motor's nameplate and we'll confirm the right replacement before you buy.
Backed by a 2-year WorldWide Electric limited manufacturer's warranty from the invoice date. We package every motor carefully so it arrives ready to install, and we stand behind every sale. Questions about fit or specs? Get in touch.
Recommended magnetic starters
A magnetic starter protects this motor from overload and lets a pressure switch turn it on and off. Sized to match this motor.
Shihlin Electric 5 HP 1-phase
$99.95
View
WEG 5 HP 1-phase
$124.60
View
Eaton 5 HP 1-phase
$199.95
View
Documents
Overview
| Horsepower | 5.0 HP |
|---|---|
| Speed Full-load (nameplate) shaft speed. | 1765 RPM |
| Frame NEMA frame size — sets the mounting bolt pattern, shaft height and shaft diameter. | 184T |
| Voltage | 208-230 V |
| Phase | Single Phase |
| Poles | 4 |
| Enclosure Motor housing type, e.g. TEFC (Totally Enclosed Fan Cooled) or ODP (Open Drip Proof). | ODP |
| Mounting | Foot Mount (Rigid Base) |
| Shaft diameter | 1-1/8" |
| Country of origin Where this motor is manufactured, per the manufacturer / supplier documentation. | China |
Electrical
| Full load amps Rated running current at full load. | 19.7 A |
|---|---|
| Locked rotor amps Inrush current drawn at startup, before the motor begins to turn. | 129.7 A |
| No-load current Current drawn spinning freely with no load on the shaft. | 4.65 A |
| NEMA code letter NEMA locked-rotor kVA/HP code letter. | G |
| Efficiency at full load | 87.5% |
| Power factor Ratio of real to apparent power at full load. | 93% |
| Start capacitor | (1) 250-300µF/300V |
| Run capacitor | (1) 40µF/450V |
Performance & Torque
| Rated torque Continuous torque produced at the rated speed and load. | 14.775 ft-lb |
|---|---|
| Locked rotor torque Starting torque as a percentage of rated torque. | 344% |
| Breakdown torque Maximum torque the motor can produce before it stalls, as a percentage of rated torque. | 237% |
| Slip Percentage the loaded speed falls below synchronous speed. | 1.93% |
| Service factor Permissible continuous overload multiplier, e.g. 1.15 = 15% over rated HP. | 1.15 |
| NEMA design NEMA design letter (A/B/C/D) describing the torque and starting-current profile. | L |
| Locked rotor time How long the motor can safely remain stalled at startup current. | 12 seconds (hot) |
Mechanical & Construction
| Shaft material | AISI 1045 Carbon Steel |
|---|---|
| Bearing (drive end) | 6306-ZZ |
| Bearing (opposite drive end) | 6206-ZZ |
| Lubricant / grease | NS7 ENS |
| Approx. weight | 100.1 lb |
| Overall length | 17.8″ |
Dimensions
| Overall height From the base feet to the top of the frame. | 10.0″ |
|---|---|
| Frame body diameter | 7.7″ |
| Shaft diameter Finished diameter of the drive shaft. | 1.125″ |
| Shaft extension length Usable shaft length beyond the motor face. | 2.75″ |
| Shaft keyway (W × L) | 0.25″ × 1.78″ |
| Base length | 6.5″ |
| Base width | 8.5″ |
| Mounting holes Number of holes in the mounting feet. | 6 |
| Mounting hole diameter | 0.41″ |
| Mounting hole spacing (F-B × S-S) Foot bolt-hole spacing: front-to-back × side-to-side. | 5.5″ × 7.5″ |
| Grease fitting location | None |
Ratings & Environment
| Insulation class Winding insulation temperature rating (A/B/F/H). | F |
|---|---|
| Protection degree IP rating for ingress of dust and water. | IP23 |
| Duty cycle S1 / Continuous means the motor can run indefinitely at rated load. | S1 / Continuous |
| Ambient temperature Surrounding air temperature the rating is based on. | 40°C |
| Max altitude Maximum altitude for the rating, above sea level. | 1000 m |
| Noise level | 70.0 dB(A) |
| Rotation | Bi-Directional |
| Inverter rated Whether the windings are rated for variable-frequency-drive (VFD) operation. | No |
| Agency approvals | UL |
Wiring & Identification
| Connection diagram | 230V |
|---|---|
| Catalog number | CDM5-18-184T |
