5 HP Replacement Air Compressor Pump 2 Stage 2 Cylinder 19 CFM w/ Head Unloaders

Click Thumbnails to Enlarge

5 HP Replacement Air Compressor Pump 2 Stage 2 Cylinder 19 CFM w/ Head Unloaders

Regular price $699.95

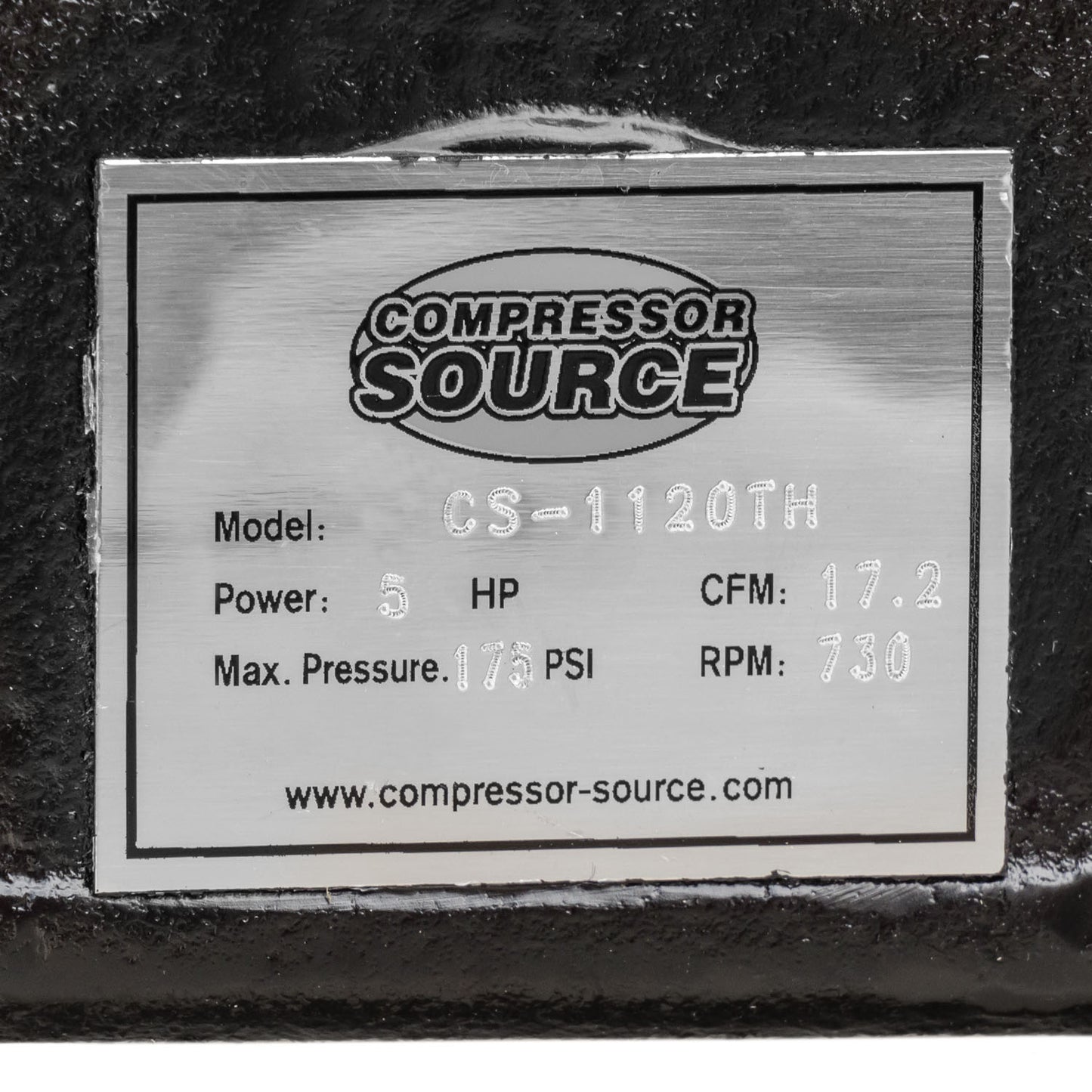

CS1120TH

5 HP Replacement Two Stage Air Compressor Pump with Head Unloaders

Brand new two cylinder cast iron two stage air compressor pump. This is a 5-horsepower pump that will deliver 17.2 CFM at 730 RPM and 18.71 CFM at 760 RPM with a max RPM of 900. This pump features head unloaders to be used with dual control or gas powered engines, this gives you the ability to freewheel the pump while running to lengthen life span of the pump in high-use applications. If this is not needed, just leave the head unloader line unhooked and it will function as a normal compressor.

This pump is most commonly used on compressor tanks of 80 gallons or larger in size unless being used with a gas engine, where in most cases, the tank will be much smaller. It can be used with a 12 HP or larger gas engine or a 220-volt 5 horsepower electric motor or larger. To verify your electric motor is large enough, it should be 20 amps or higher at 220 volts and at least 5 HP. This pump has a minimum RPM of 650. This pump comes complete as shown in the photos, including intake filters and flywheel. See specifications below for more details.

Features:

• Cast Iron Cylinder and Crankcase

• Equipped with Sight Glass for Easy Viewing of Oil Level
• Comes with One Intake Filters
• Head Unloaders

Specifications

• Two Cylinder
• Two Stage
• 5 HP
• Maximum Recommended Working Pressure: 175 PSI
• Recommended RPM: 650-900
• CFM: 18.71 Max
• Bolt Pattern: 6.25" (Front to Back) x 9.2" (Side to Side)

Because of the weight of this pump, it has to ship freight. When purchasing please specify if it is going to a commercial address otherwise it will ship to your nearest trucking terminal for pickup. If you have questions about this, please contact us before purchasing.
