5 HP 184T Single Phase 1750 RPM WEG Electric Motor

This listing is for a brand new WEG 5 horsepower air compressor motor model number 00518OS1CCD184T, this motor is 208-230 volt, 23-20.5 full load AMPS, 60 Hz, 184T Frame, single phase, 1 1/8" diameter shaft, and 1750 RPM. This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

Specifications

• Frame: 184T
• Output: 5 HP
• Number of Poles: 4
• Frequency: 60 Hz
• Rated Speed: 1750 RPM
• Slip: 2.78%
• Rated Voltage: 208-230 Volts
• Rated Current: 23/20.5 Amps
• Rated Torque: 14.8 FT. LB.
• Locked Rotor Torque: 254%
• Breakdown Torque: 250%
• Locked Rotor Time: 10s (Cold) / 6s (Hot)
• Insulation Class: F
• Temperature Rise: 80 K
• Service Factor: 1.25 (1.00 at 208V)
• Starting Method: Direct on Line
• Ambient Temperature: -20°C to +40°C
• Degree of Protection: IP22
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approx. Weight: 96.2 lb
• Shaft Diameter: 1-1/8"
• Shaft Length: 2-3/4"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a 1 year limited manufacturer's warranty and also a 30 day warranty directly through Compressor-Source*

We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.

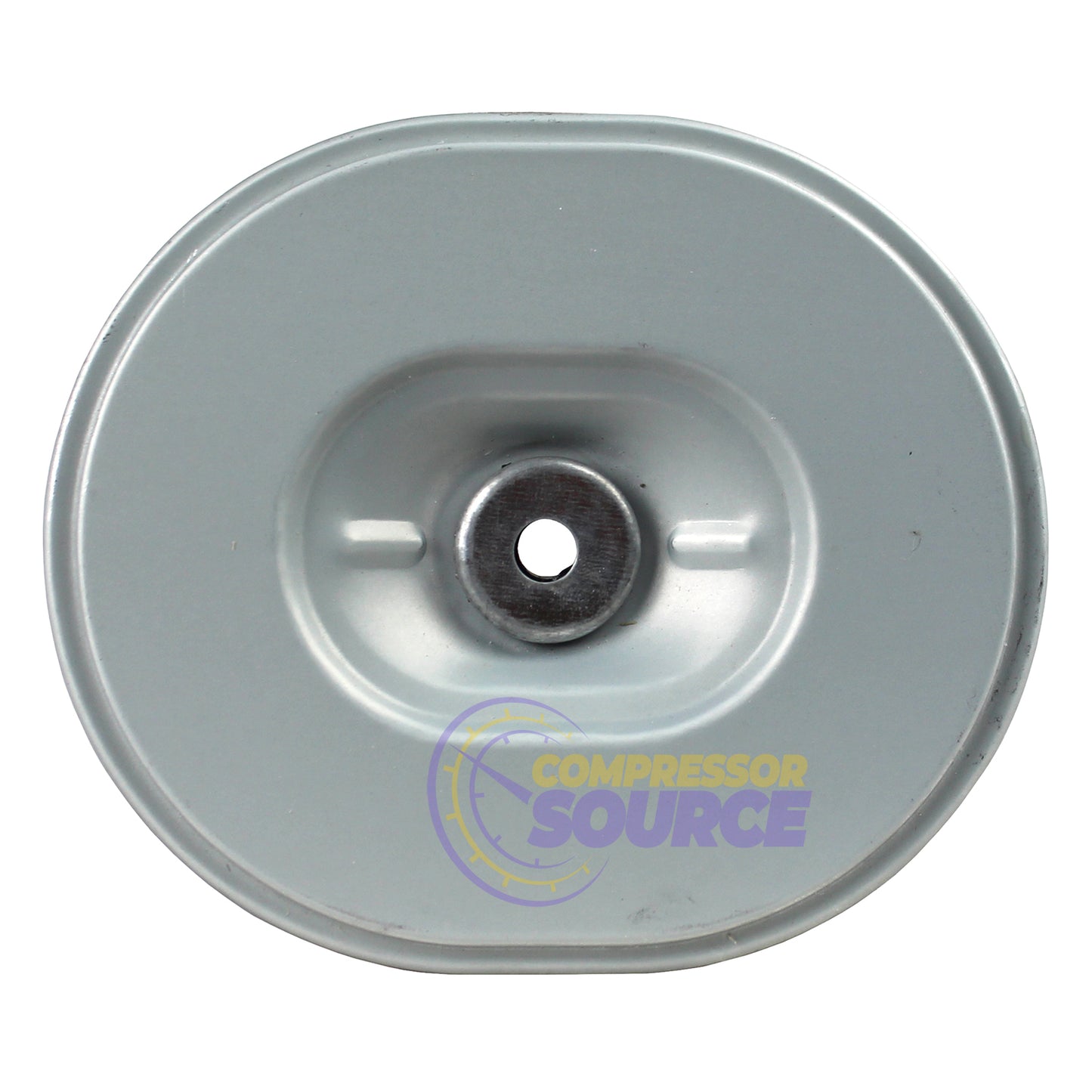

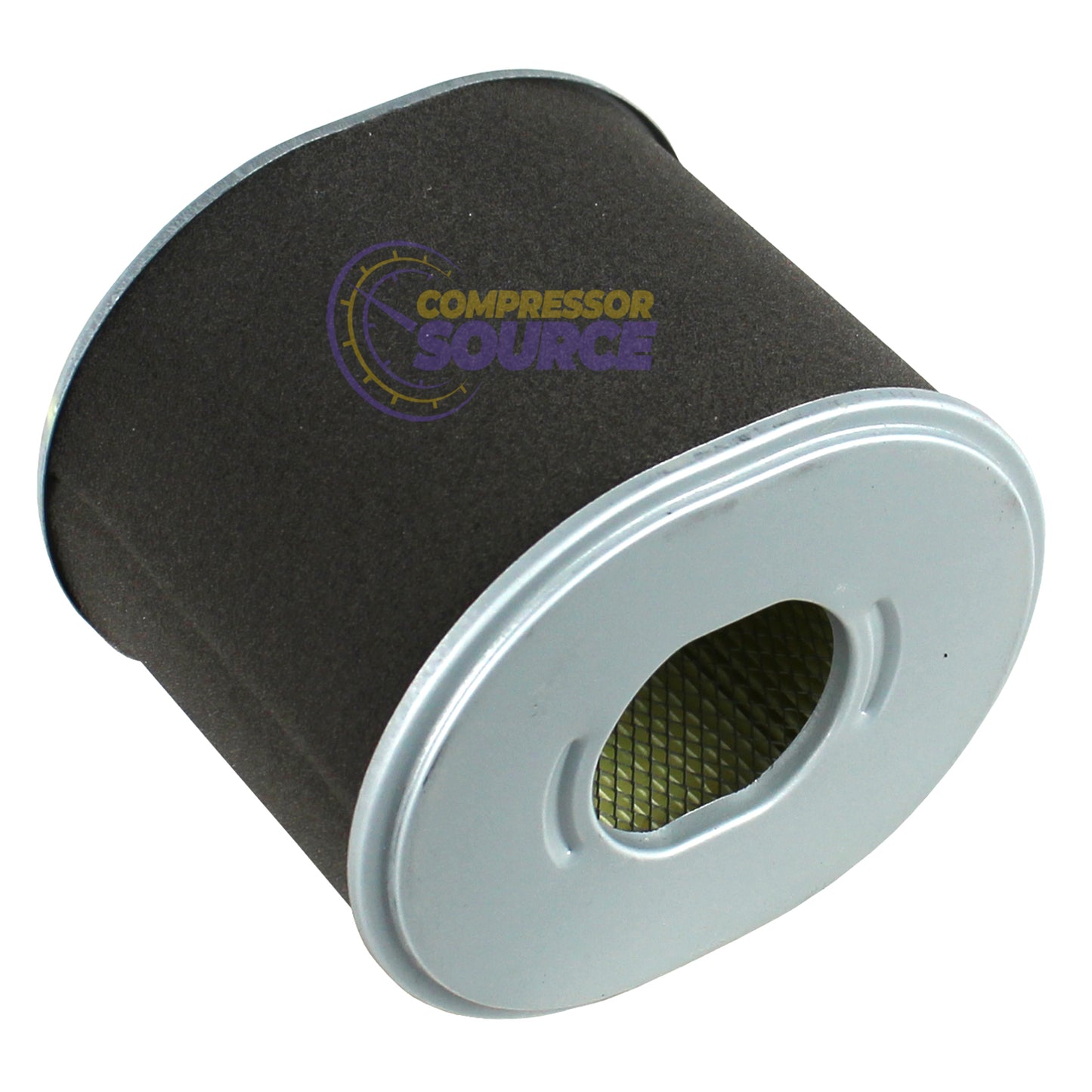

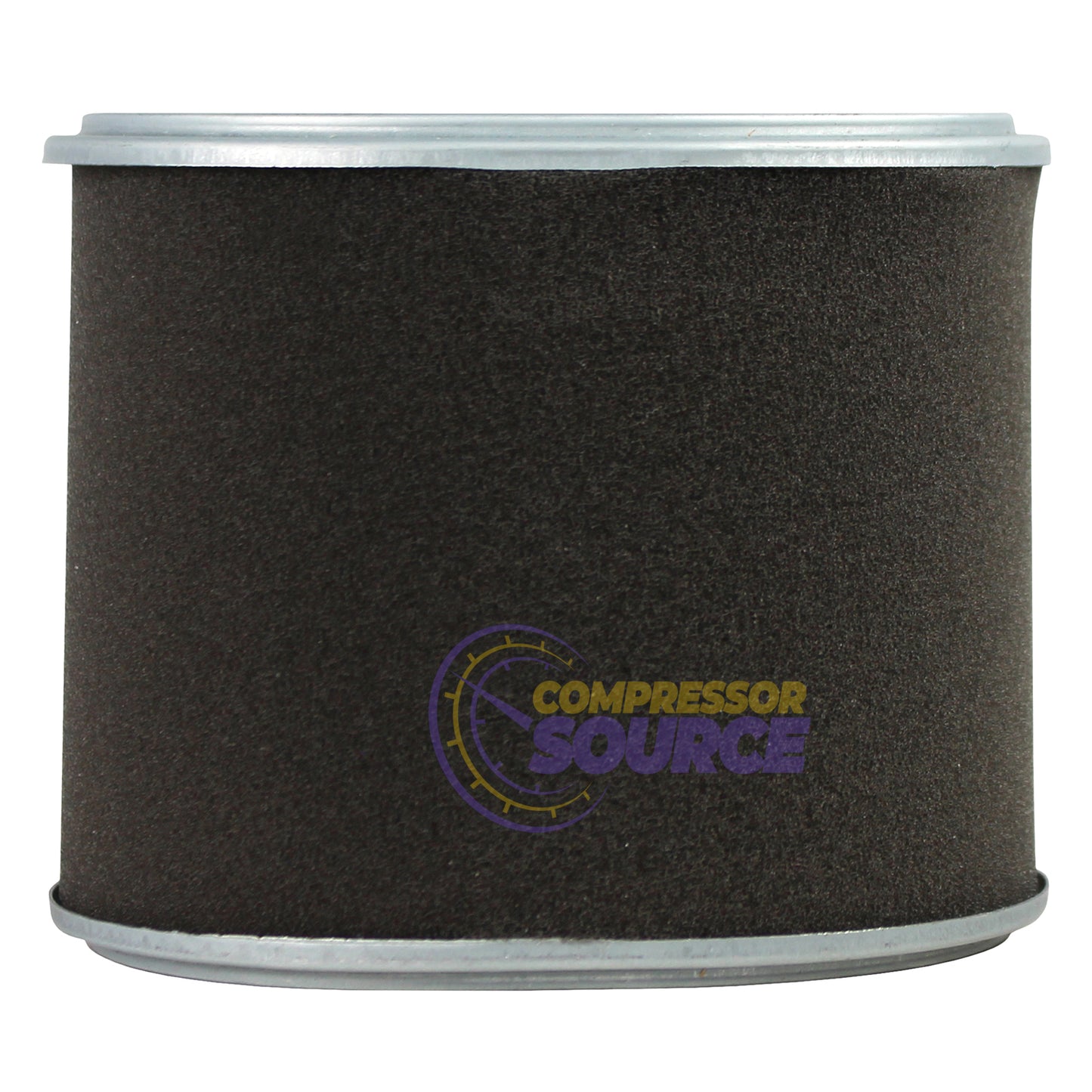

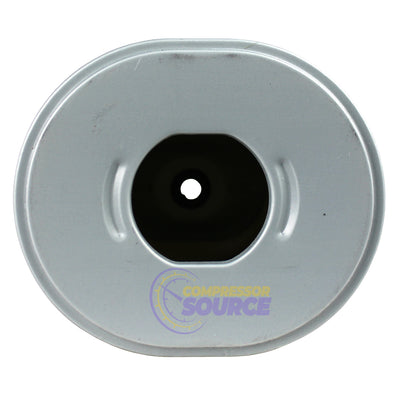

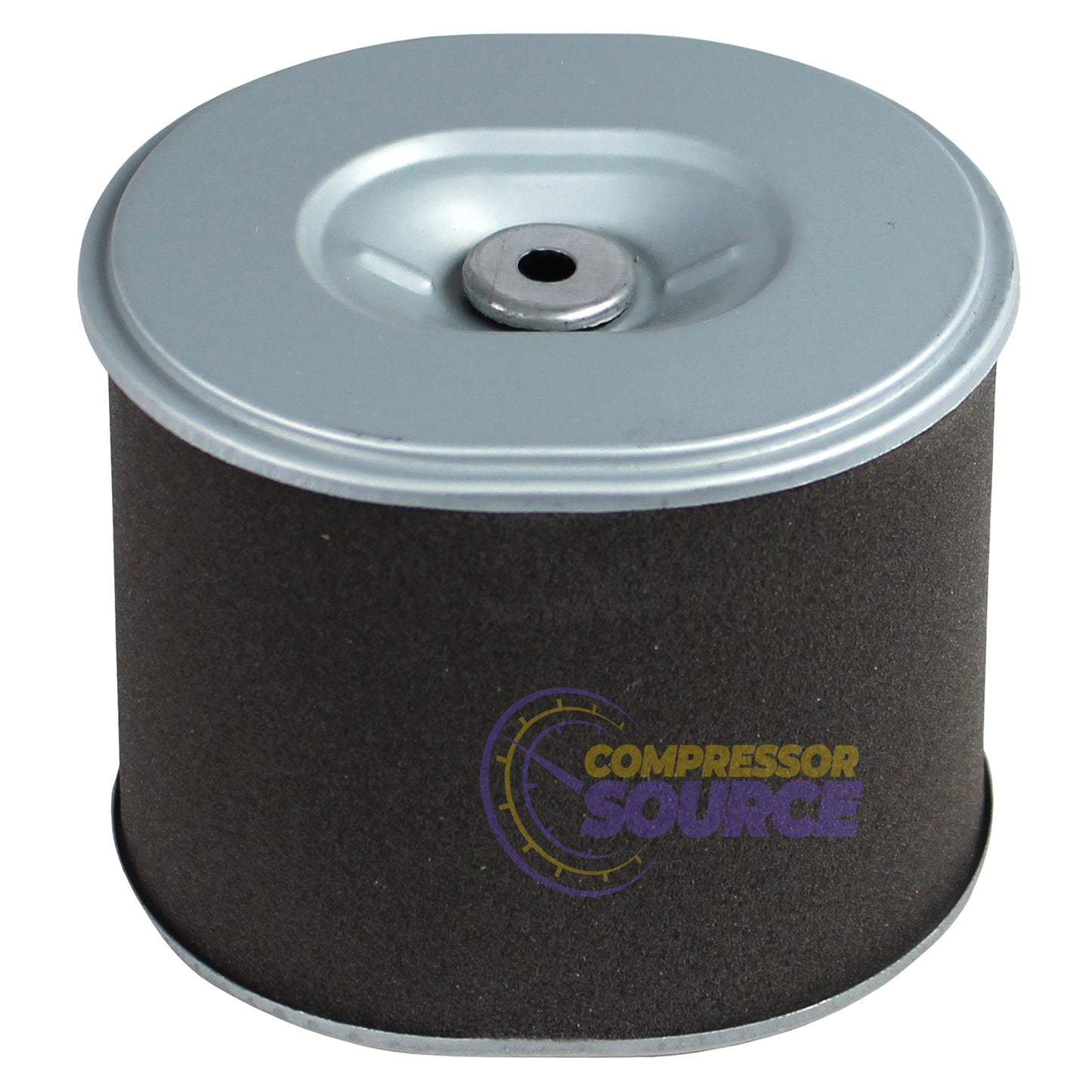

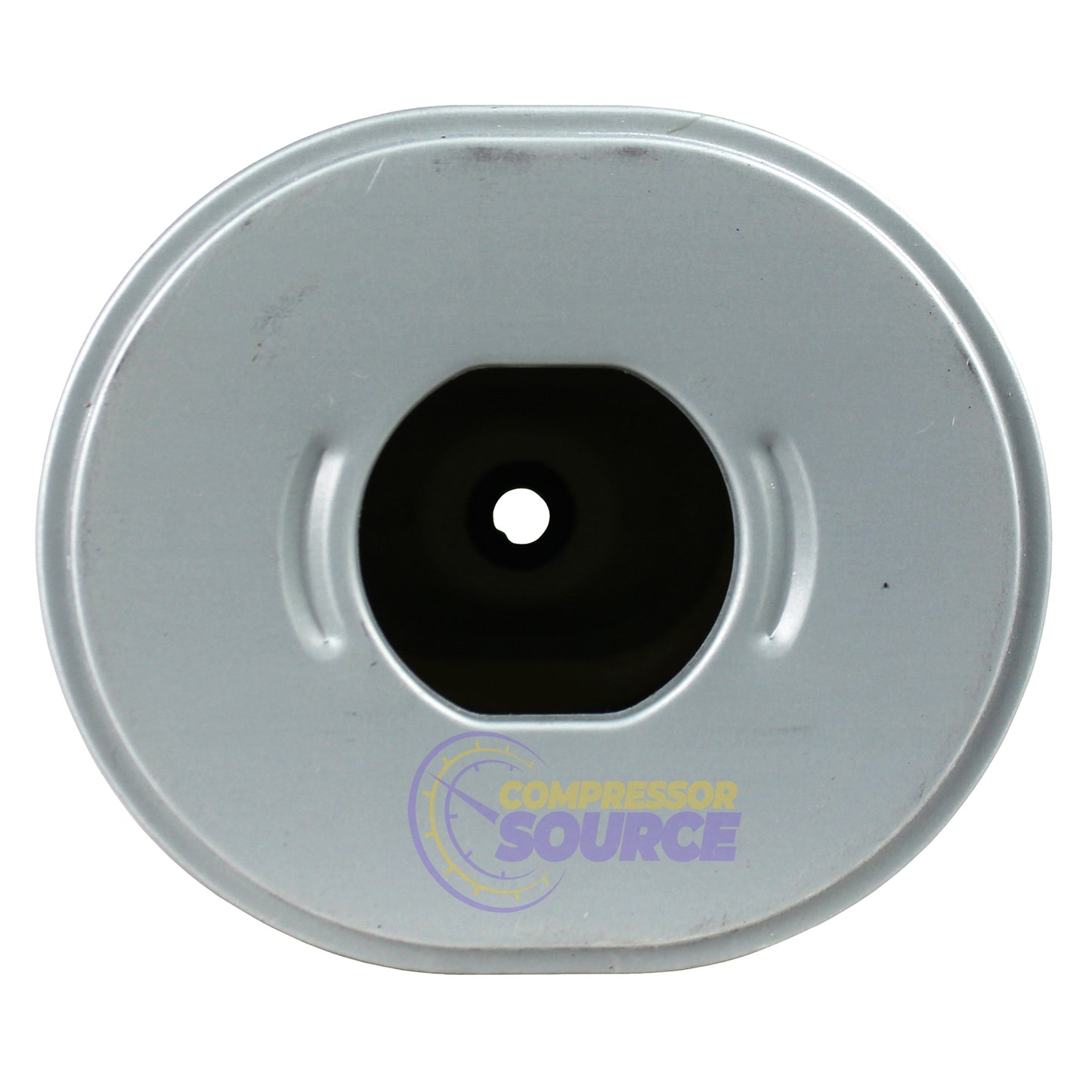

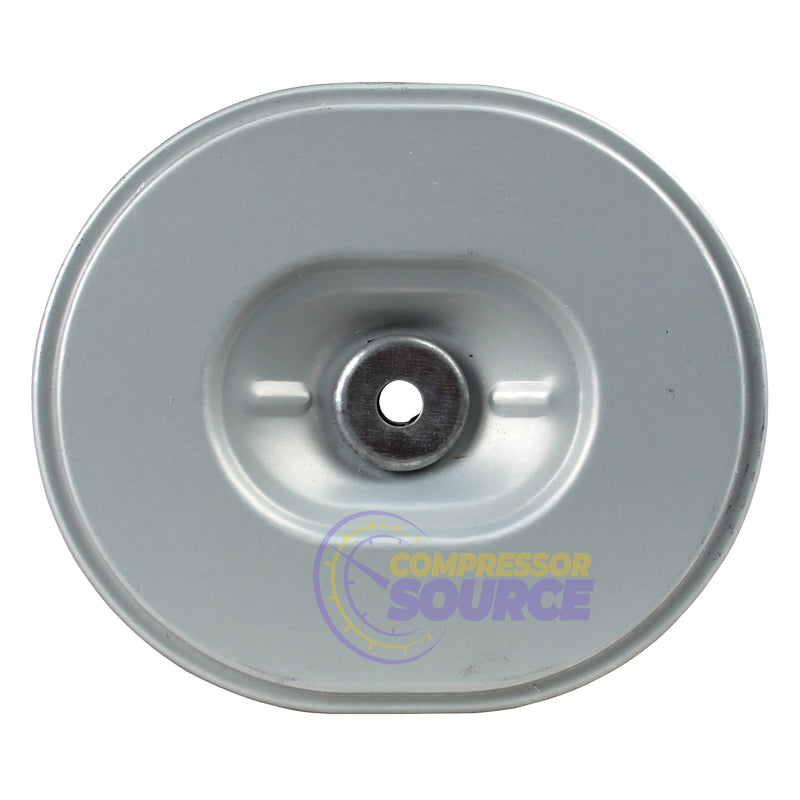

Air Cleaner Filter Element 11HP & 13HP Fits Honda GX340 & GX390 With Pre Filter
