BK50H Cast Iron 4.75" Single Groove Belt B Section 5L Pulley 7/8" Sheave Bushing

Click Thumbnails to Enlarge

BK50H Cast Iron 4.75" Single Groove Belt B Section 5L Pulley 7/8" Sheave Bushing

Regular price $36.95
BK50H/H-7/8

Single Groove Pulley with 7/8" Bushing

Brand new 2 Piece single groove 4.75" cast iron pulley with 7/8" Bushing for a B section belt. This is a high quality pulley that measures 4.75" outside diameter and is designed to be used with an H style bushing.

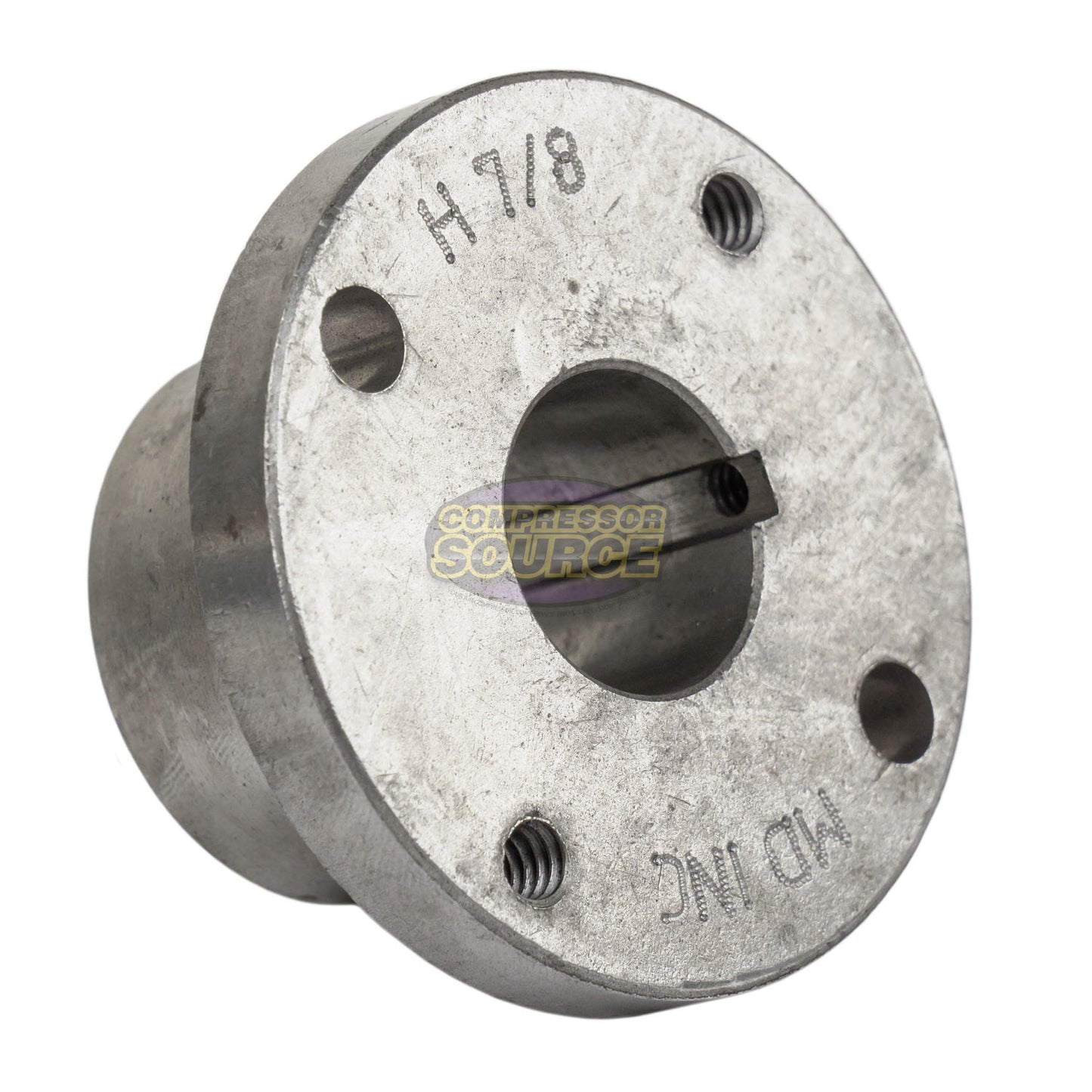

The 7/8" Bushing (Included) inserts into the center of the pulley and slides over the shaft. As you tighten down the bolts on the H bushing, it will tighten down on the shaft. This style of pulley is much more secure than a standard 1 piece pulley.

This pulley accepts B Section also known as 5L series belts. These belts are 5/8" wide. This pulley will work with A Section belts Also known as 4L ; however, they will sit farther down in the groove which will reduce your pulley size by 1/4" to 1/2" on average, depending on the size of pulley.

Specifications:

• Single Groove Pulley
• Accepts: B Section / 5L Section Belts
• High Quality Cast Iron Construction
• Solid Steel Bushing
• 7/8" Bushing Included

• Outside Diameter of Pulley: 4.75"
