Cast Iron 8.75" 2 Groove Dual Belt B Section 5L Pulley w/ 1-1/4" Sheave Bushing

Click Thumbnails to Enlarge

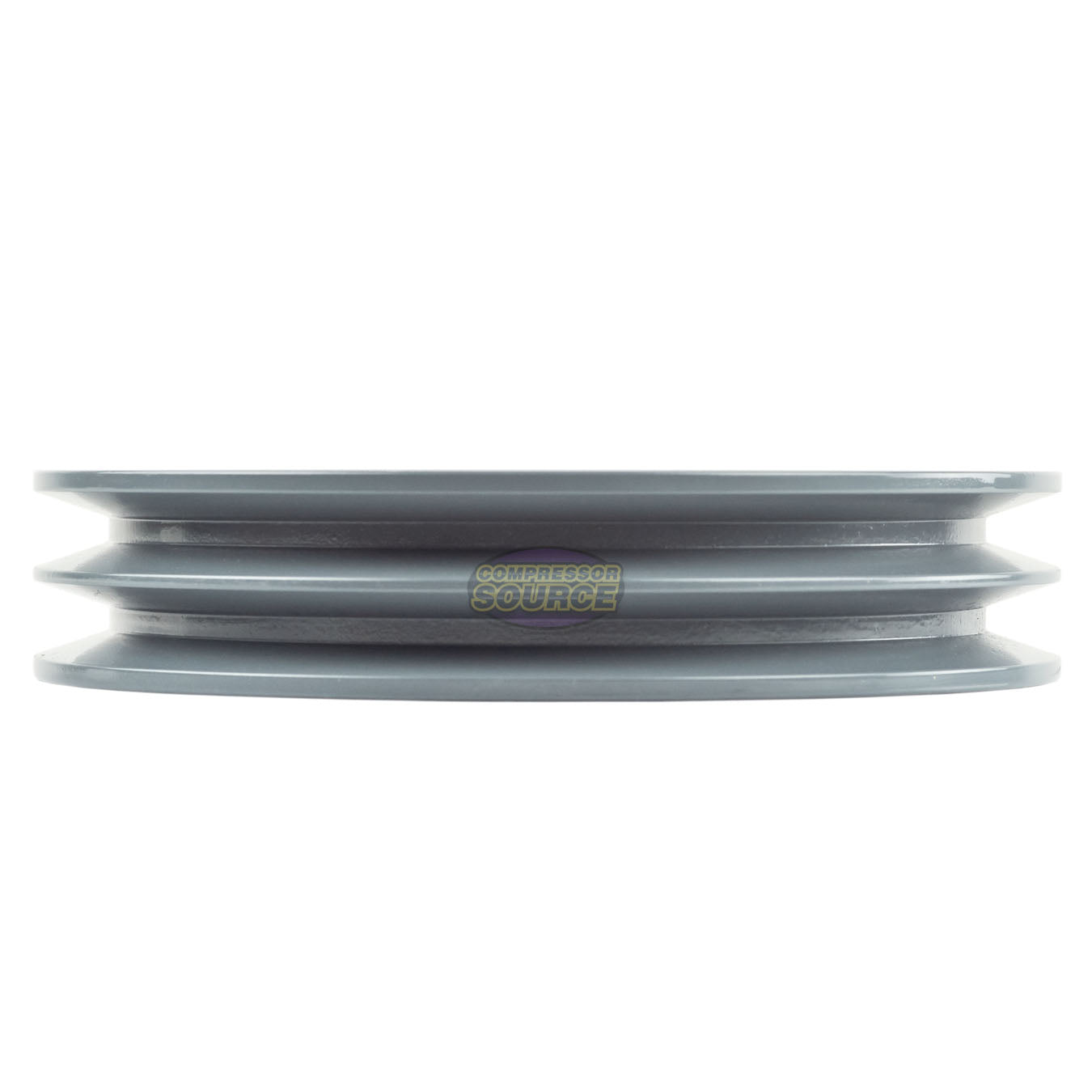

Cast Iron 8.75" 2 Groove Dual Belt B Section 5L Pulley w/ 1-1/4" Sheave Bushing

Regular price $66.95

8.75" Cast Iron 2 Piece Pulley and 1-1/4" Sheave

Brand new dual groove 8.75" cast iron, 2 pc. pulley/sheave with 1-1/4" H bushing for B section belt. This is a high quality 2 piece pulley that measures 8.75" outside diameter and is designed to be used with an H style bushing. This bushing inserts into the center of the pulley and slides over the shaft. As you tighten down the bolts on the H bushing it will tighten down on the shaft.

This style of pulley is much more secure than a standard 1 piece pulley. This listing includes an H bushing to fit on a 1-1/4" shaft, you can purchase different bushings if you need this for a different shaft size. The bushing itself is made of solid steel and is precision machined to ensure high quality and secure attachment to your motor/engine shaft. This pulley accepts B Section also known as 5L series belts. These belts are 5/8" wide. This pulley will work with A Section belts Also known as 4L; however, they will sit farther down in the groove which will reduce your pulley size by 1/4" to 1/2" on average, depending on the size of the pulley.


• Dual Groove Pulley
• 1-1/4" Bushing Included
• Accepts: B Section / 5L Section Belts
• High-Quality Cast Iron Construction
• Solid Steel Bushing
• For Use on 1-1/4" Shaft

Outside Diameter of Pulley: 8.75"
