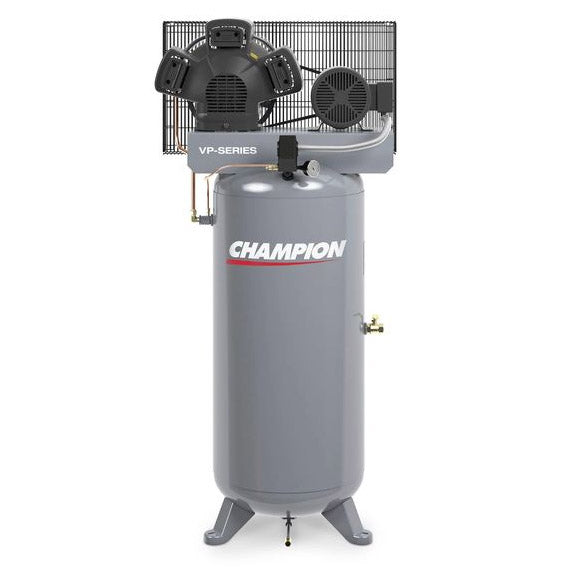

Champion VP5-40-6 5HP Single-Stage 60 Gallon Vertical Air Compressor

Champion compressors are proven units, known for their reliability over decades of use. Champion knows their products and understands how they operate in many different operating environments. No matter the application, Champion gets the job done. The VP-Series compressors are engineered to deliver both value and quality in one simple package. Each compressor is designed with top-quality bearings, cast iron cylinders, the vibration-free compressor pumps ensure the longevity of the compressor package. This VP5-40-6 model features a 5 HP electric motor (single phase 230 volts), a three-cylinder single-stage pump that delivers 11.4 CFM, and has a 60-gallon vertical tank. Please see below for more details and specifications.

Features and Specifications:

• Automatic Start/Stop Operation
• OSHA Approved Belt Guard
• NEMA Rated Electric Motors
• ASME Coded Air Receivers
• Manual Tank Drain
• Air Pressure Gauge
• Pre-Set Pressure Switch

Pump Specifications:

• Pump Cylinders: Three
• Pump Stages: 1
• Max Pump RPM: 1220
• CFM Delivered: 11.4
• Splash Lubricated
• 100% Cast Iron
• Large Flywheel Blades for Maximum Cooling
• Reed Valve Design
• All Pumps are Factory Tested

Motor and Tank Specifications:

• Electric Motor HP: 5
• Voltage: 230 Volts
• Phase: Single
• Tank Capacity: 60 Gallons
• Tank Orientation: Vertical
• Dimensions: 35" x 20" x 66"
• Approximate Weight: 350 LBS
