EMAX 5 HP 2 Stage Air Compressor 80 Gallon Vertical Tank 1 Phase EI05V080I1
Regular price
$3,524.00
We're an Authorized EMAX Dealer and Service Center: Call us at 402-261-9563 for buying support, technical questions and special orders from the EMAX catalog

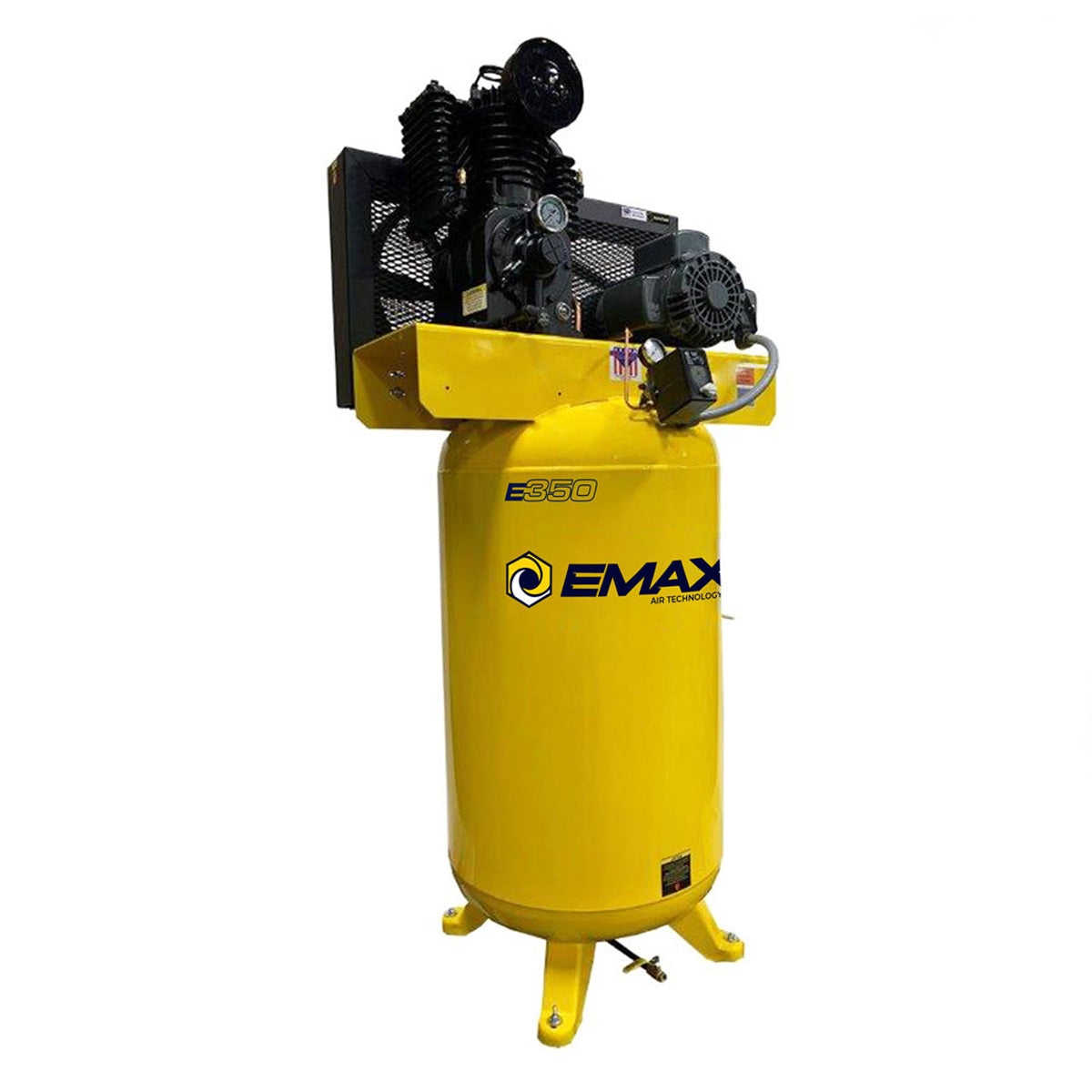

5 HP 2 Stage Air Compressor 1 PH 80 Gallon Vertical Tank
Introducing the EMAX Industrial 5 HP 2-Stage Single Phase Inline 80-Gallon Vertical Air Compressor, engineered for uncompromising performance in industrial settings. With a robust 5 HP single-phase electric motor and two-stage pump, this compressor delivers consistent and powerful air delivery for demanding tasks. The space-efficient design maximizes floor space utilization while offering an ample 80-gallon tank for reduced cycle frequency and uninterrupted operation. EMAX compressors are known nationwide for their super quiet operation and longevity. When maintained to the manufacturer's specifications, this air compressor is designed to last for up to 70,000 hours. Please see below for more features and specifications.
Features and Specifications:
• Pump Model: APP2I0524TP
• Pump Material: Cast Iron
• Pump RPM: 800
• CFM @ 100 PSI: 19
• Max PSI: 175
• Tank Size: 80 Gallons
• Tank Orientation: Vertical
• Overall Dimensions (LxWxH): 31" x 33" x 75"
• Weight: 576 LBS
• Tank Outlet Size: 3/4" NPT
• Required Voltage: 230
• Running Amps: 24
• Recommended Breaker Size: 40 Amps
• Oil Capacity: 2 Quarts
• Certifications: CSA, ASME, ETL
