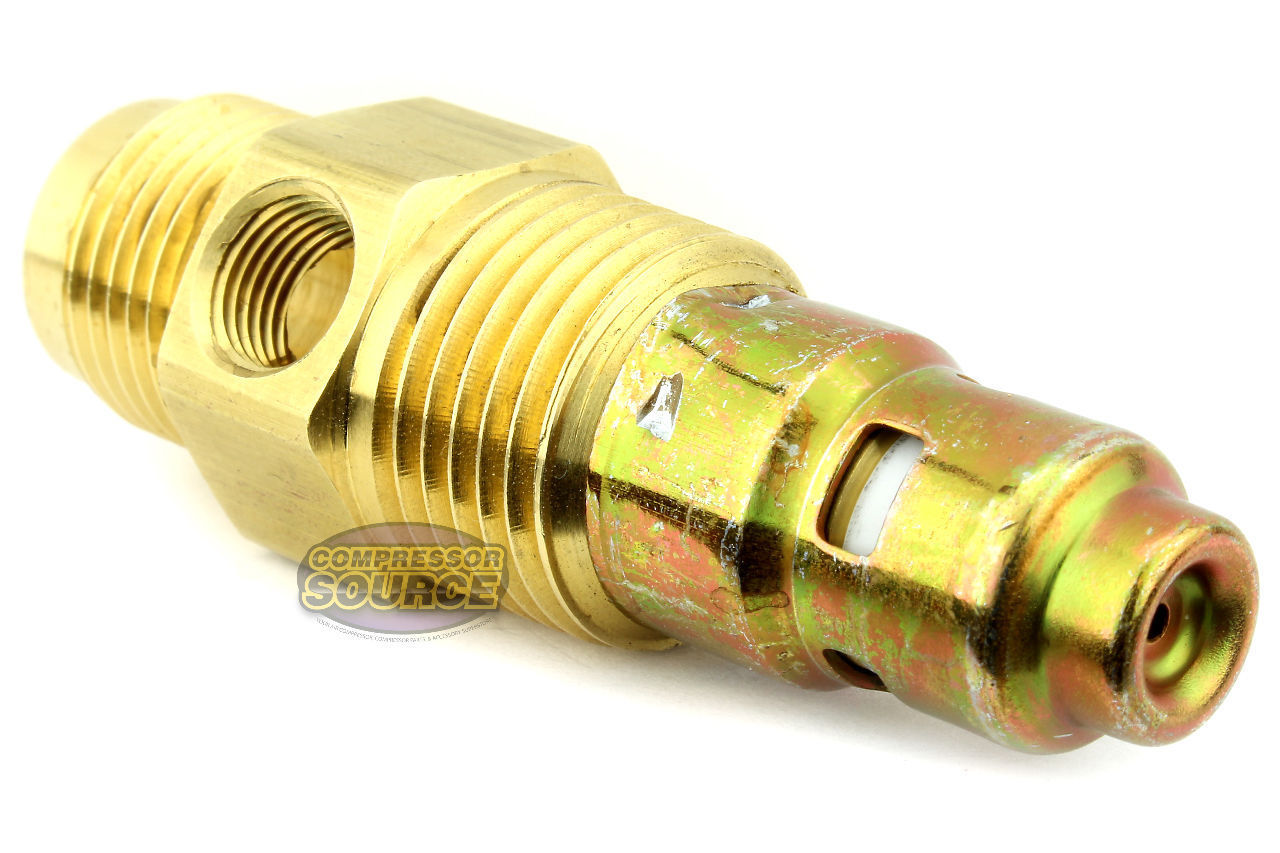

In Tank Brass Check Valve 1/2" Male x 1/2" Flare
One new 1/2" flare x 1/2" male NPT in tank air compressor check valve. This style of check valve is usually screwed directly into the air tank, then the main line coming off the compressor pump is connected to it. This valve prevents backflow or tank pressure from getting back to the air compressor pump once the compressor is shut off. This valve has a 1/8" female NPT port in the side which usually goes to an unloader valve on your pressure switch or compressor pump. If you do not have an unloader line with your application, this port can just be plugged.
• Valve Inlet Threads- 1/2" Flare (measure about 3/4" in diameter)
• Outlet Threads / Tank Threads- 1/2" Male NPT (measure about 3/4" in diameter)
• Side Port- 1/8" Female NPT (measures about 10/32 in diameter)
• Total Length- 2-13/16"
