Maxline 90 Degree Elbow Fitting 3/4 Tubing x 1/2" Male NPT Compressed Air Piping M8086

Click Thumbnails to Enlarge

Maxline 90 Degree Elbow Fitting 3/4 Tubing x 1/2" Male NPT Compressed Air Piping M8086

Regular price $16.95
M8086

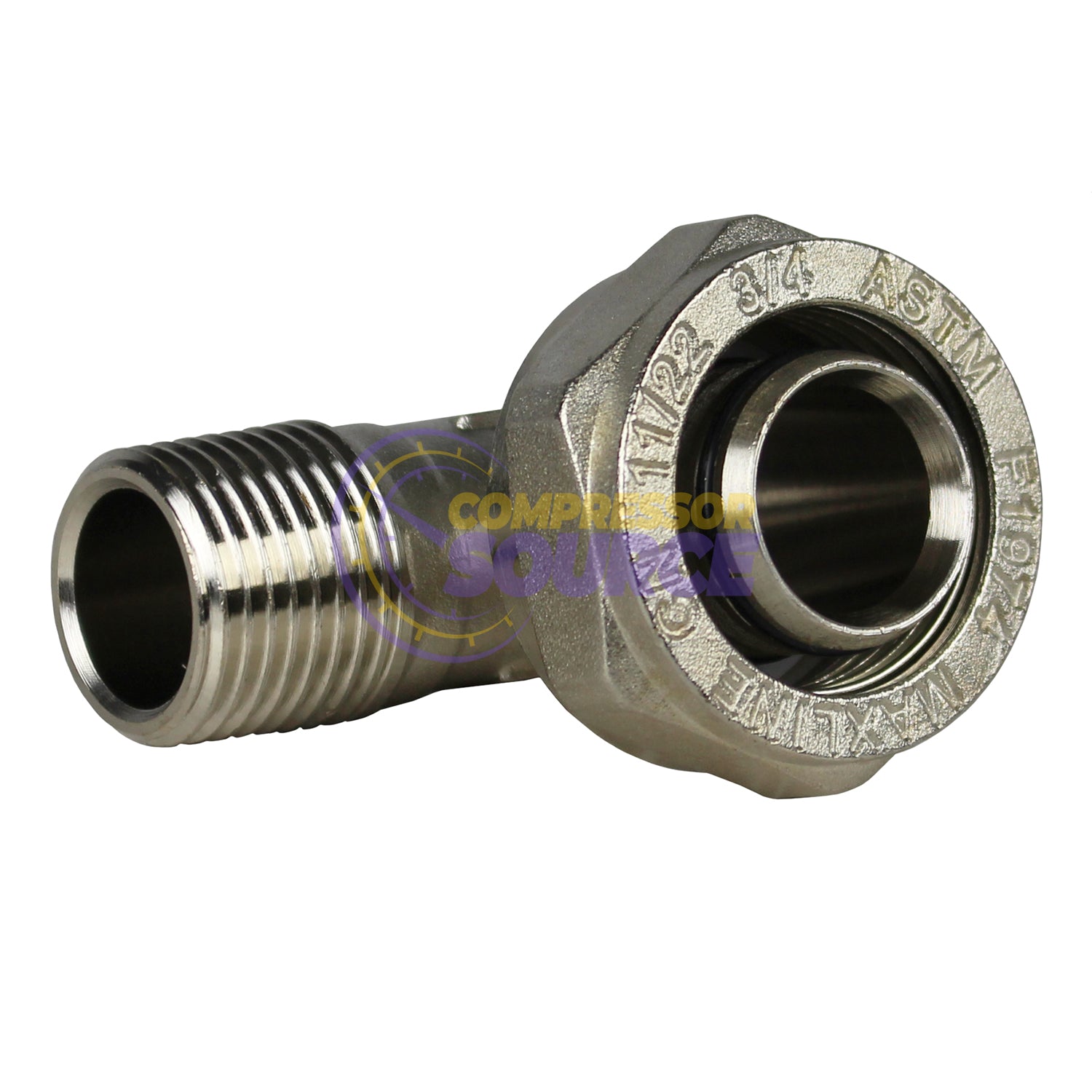

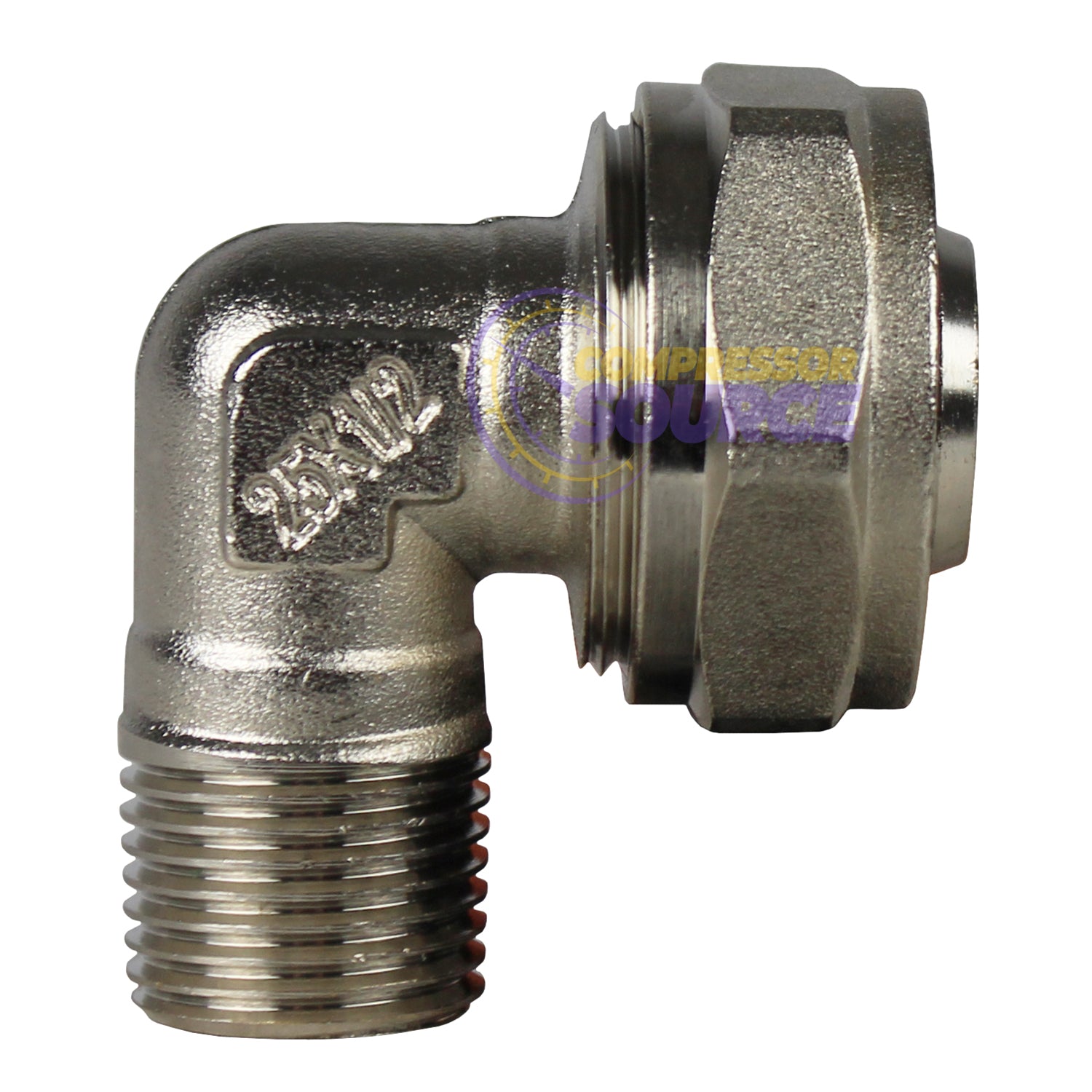

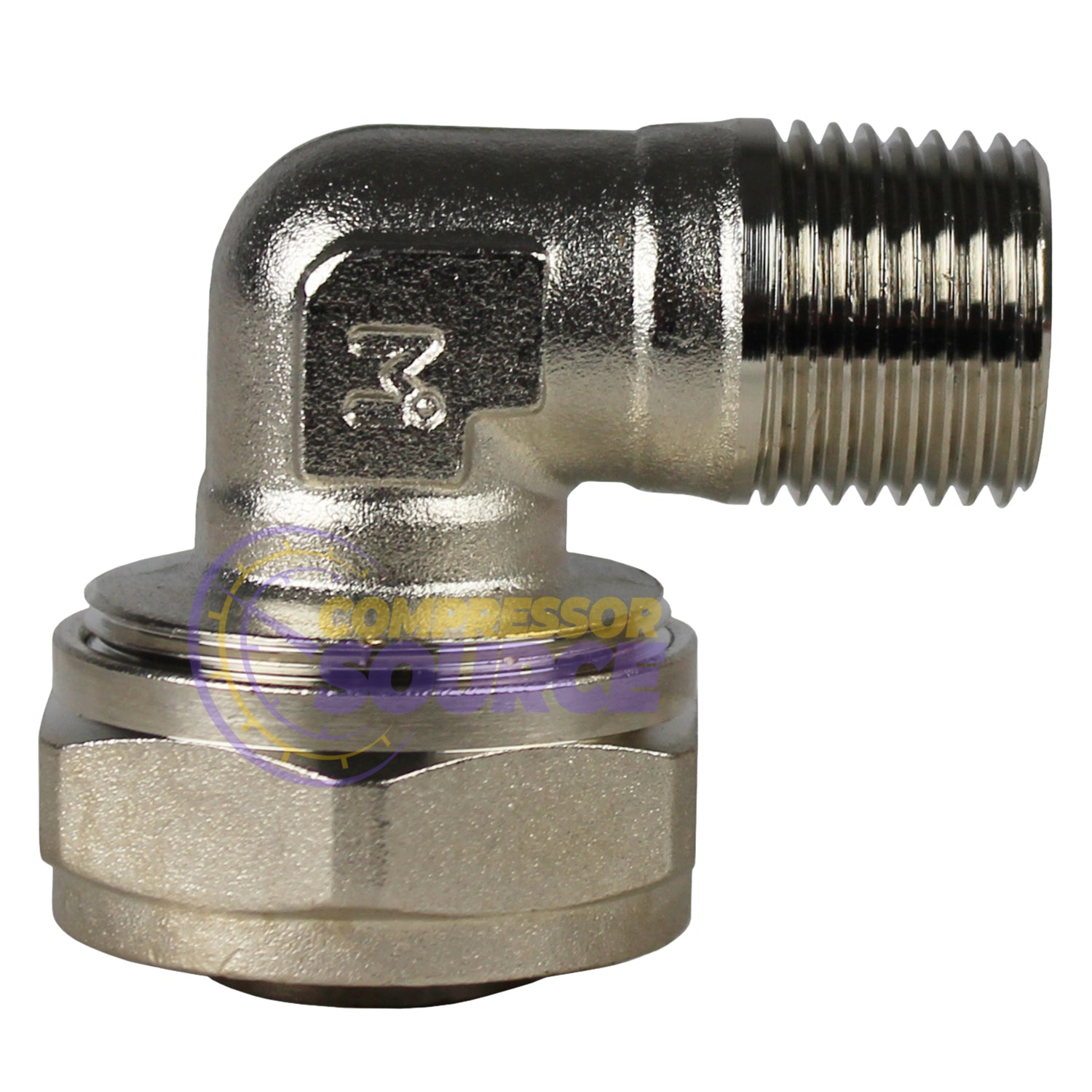

RapidAir Maxline Compressed Air Piping 3/4" Tubing x 1/2" Male NPT 90° Elbow Fitting #M8086


This listing is for a brand new Rapidair Maxline 3/4" piping by 1/2" male NPT 90 Degree elbow adaptor fitting (Part number M8086). This Maxline fitting is specifically designed for the Maxline 3/4" tubing made by RAPIDAIR and is great for attaching the line to a compressor, outlet or adding regulators, filters and other equipment when needing a 90 degree angle.

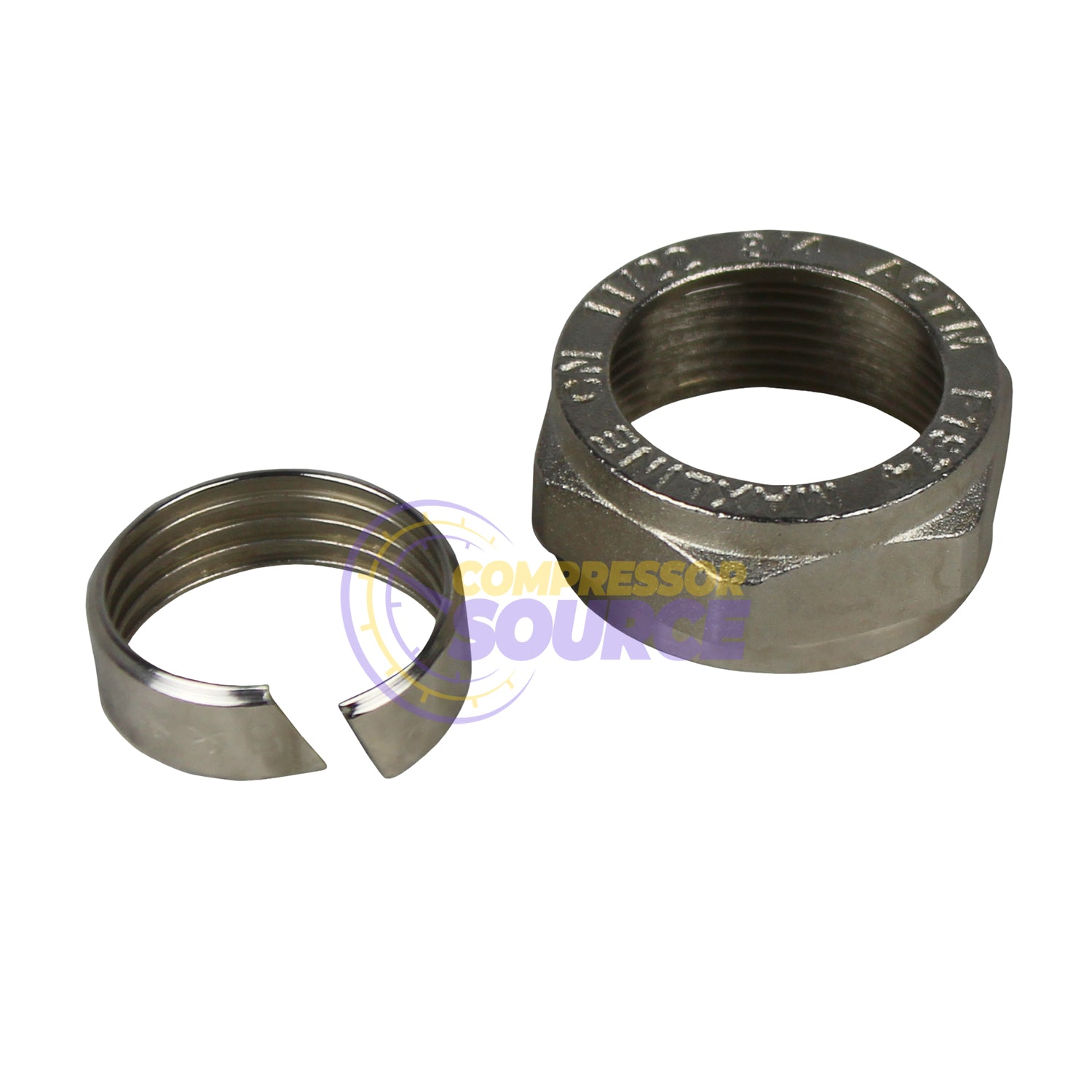

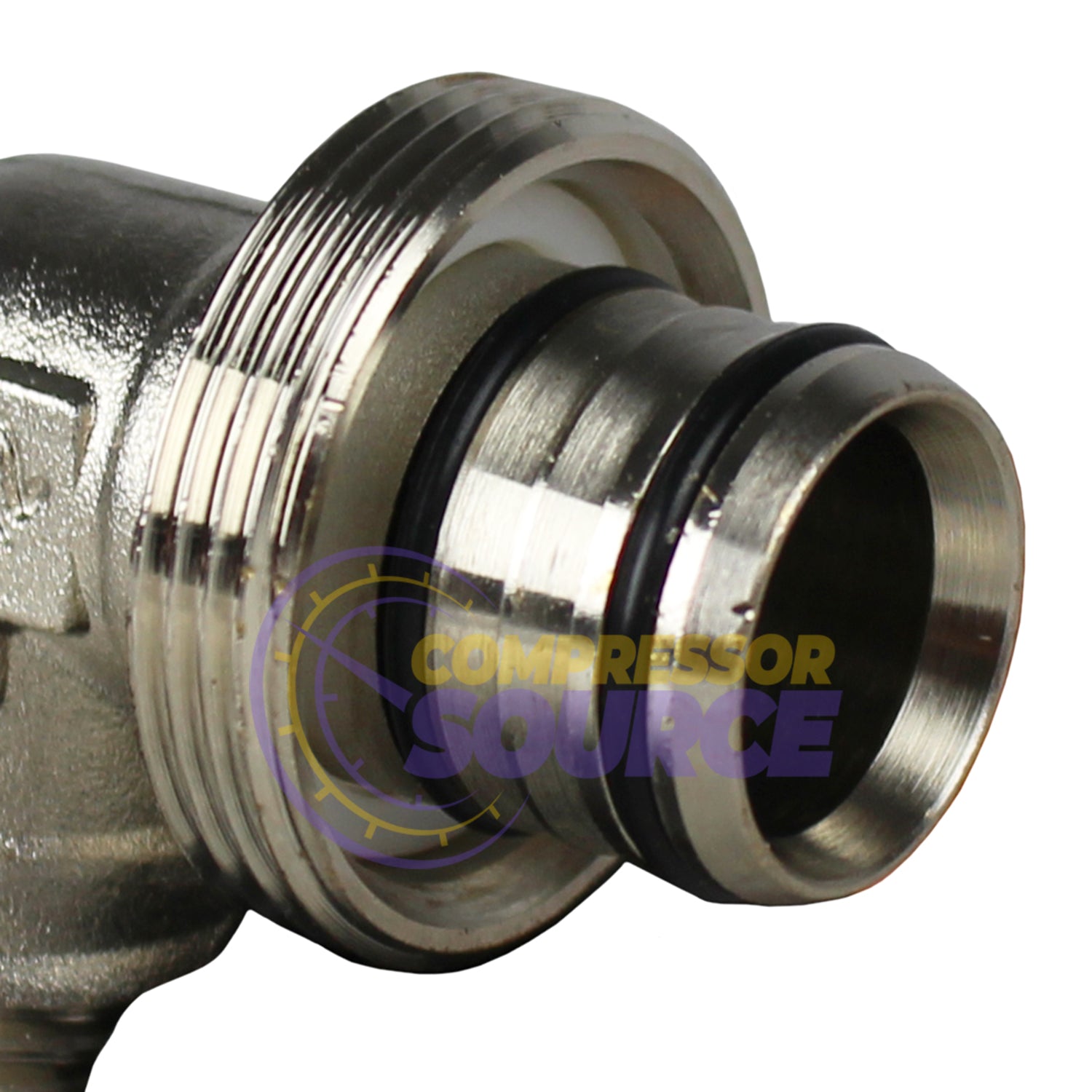

This fitting is made of solid brass and has a double o-ring seal for a no leak connection.  This fitting also has split ring connections for easy disassembly if needed.  The M8086 fitting is Rated for 175 PSI working pressure.

This fitting has a 3/4" Maxline tubing inlet with a 1/2" Male NPT on the other end. Note: 1/2" Male NPT measures about 3/4" in diameter if measured with a ruler. If you need any other fittings or tubing for your 3/4" Maxline system or any other parts please let us know.

Specifications:

• Part Number: M8086
• Solid Brass
• Nickel Plated for Corrosion Resistance
• Double O-Ring Seal
• 175 Max Working Pressure
• 90 Degree Elbow
• 1/2" Male NPT x 3/4" Maxline Tubing Fitting
