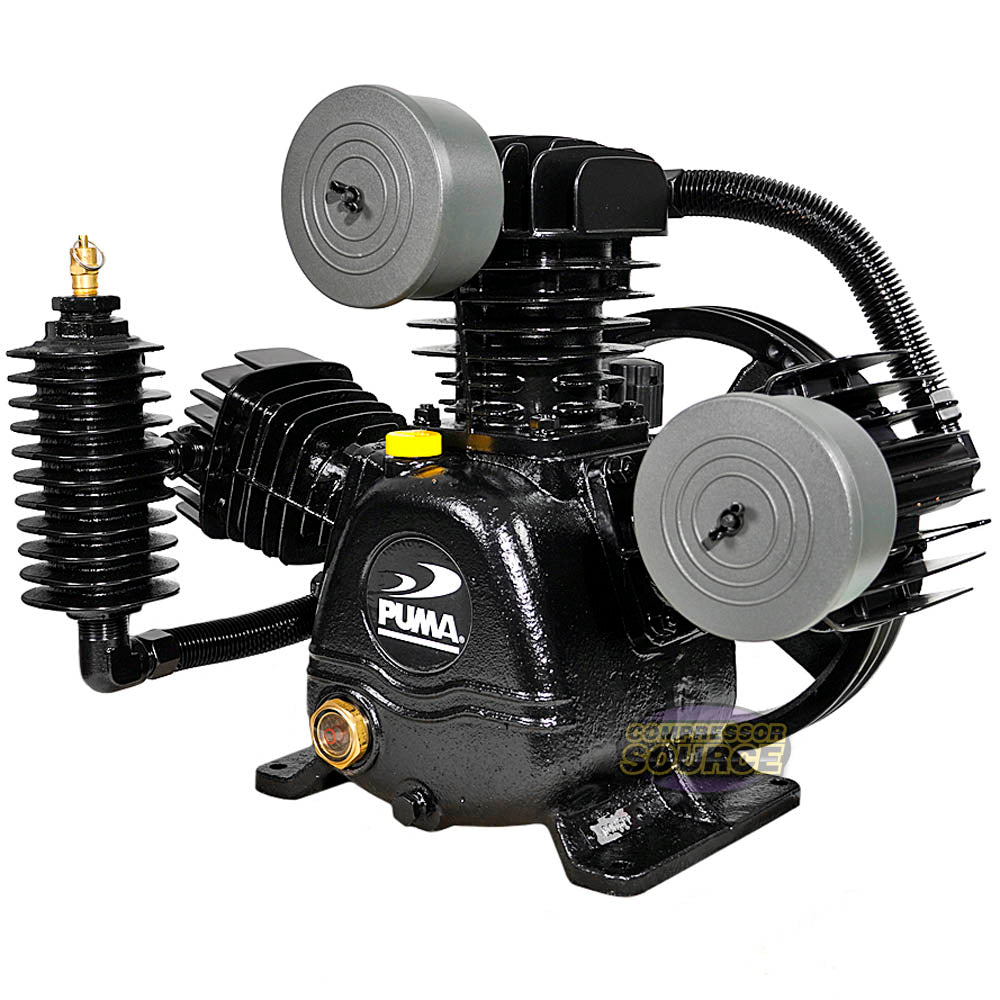

Puma 3 Cylinder 2 Two Stage Cast Iron Air Compressor Pump 175 Max PSI TE-50

Out of stock
SKU: TE-50
Regular price $439.95

Puma 3 Cylinder 2 Stage Compressor Pump TE-50

Brand new Puma, cast iron, 3-cylinder, 2 stage, 175 PSI max pressure, air compressor pump. This air compressor pump features a complete cast iron body, cylinders, as well as cast iron heads, which ensures a long life even in the hardest working conditions. This is an oil-lubricated pump with the heads in a 'W' shape, which allows the cylinders to stay cooler than traditional-style air pumps. If you need a high-quality, long-lasting, dependable pump, this is a great option. The compressor is equipped with floating, steel reed valves that are designed for longevity and performance. Depending on the RPM that you will be spinning this pump, which can be anywhere between 650-1000 RPM, it will put out between 10 and 15 SCFM. A 10.5" flywheel comes installed on the pump and requires two 'A Section' belts (not included) that you can find in our belt section. This is a high-quality pump that can give you years of reliable performance in a large variety of applications.


• Brand: PUMA
• Part Number: TE-50
• Two-Stage
• 3-Cylinder
• Solid Cast Iron Construction (Body, Cylinders, & Heads)
• Oil Lubricated
• Easy View Oil Level Sight Glass
• 10.5" Flywheel
• Requires 2 'A Section' Belts (NOT INCLUDED)
• 650-1,000 RPM
• 10-15 SCFM
• 175 Max PSI
• Can be used with Gas or Electric Motor
• Optional Dual Control
• "W" Shaped Cylinders
• Air Filter Enclosures and Elements Included

Mounting Hole Dimensions:

• Side to Side (Center to Center): 8-3/4"
• Front to Back (Center to Center): 5-7/8"
