Puma 3 Cylinder Two Stage Cast Iron 15 SCFM Air Compressor Pump

Click Thumbnails to Enlarge

Puma 3 Cylinder Two Stage Cast Iron 15 SCFM Air Compressor Pump

Regular price $399.95
TUE-50

Brand new Puma, cast iron, 3-cylinder, 2 stage, 175 PSI max pressure, air compressor pump. This air compressor pump features a complete cast iron body, cylinders, as well as cast iron heads, which ensures a long life even in the hardest working conditions. This is an oil-lubricated pump with the heads in a 'W' shape, which allows the cylinders to stay cooler than traditional style air pumps. If you need a high quality, long-lasting, dependable pump, this is a great option. The compressor is equipped with floating, steel reed valves that are designed for longevity and performance. Depending on the RPM that you will be spinning this pump, which can be anywhere between 650-1000 RPM, it will put out between 10 and 15 SCFM. A 10.5" flywheel comes installed on the pump and requires two 'A Section' belts (not included) that you can find in our belt section. This is a high-quality pump that can give you years of reliable performance in a large variety of applications.

This is a versatile pump and can be used with gas or electric motors that are at least 5 hp. As you can see in the picture, this pump has a small copper line going from one head to the next. This line is for use in dual control or gas engine applications. Using this line with a pilot valve will allow the pump to spin freely when up to pressure without continually pumping air and building heat. This makes for a much longer life span of the pump. If you are using this pump with a standard electric motor, you can leave these lines hooked up with nothing connected to them and the pump will operate normally. Or, you can remove the copper lines and plug the top of each cylinder with a 1/8" NPT plug.

Specifications:

• Brand: PUMA
• Part Number: TUE-50
• Two-Stage
• 3-Cylinder
• Solid Cast Iron Construction (Body, Cylinders, & Heads)
• Oil Lubricated

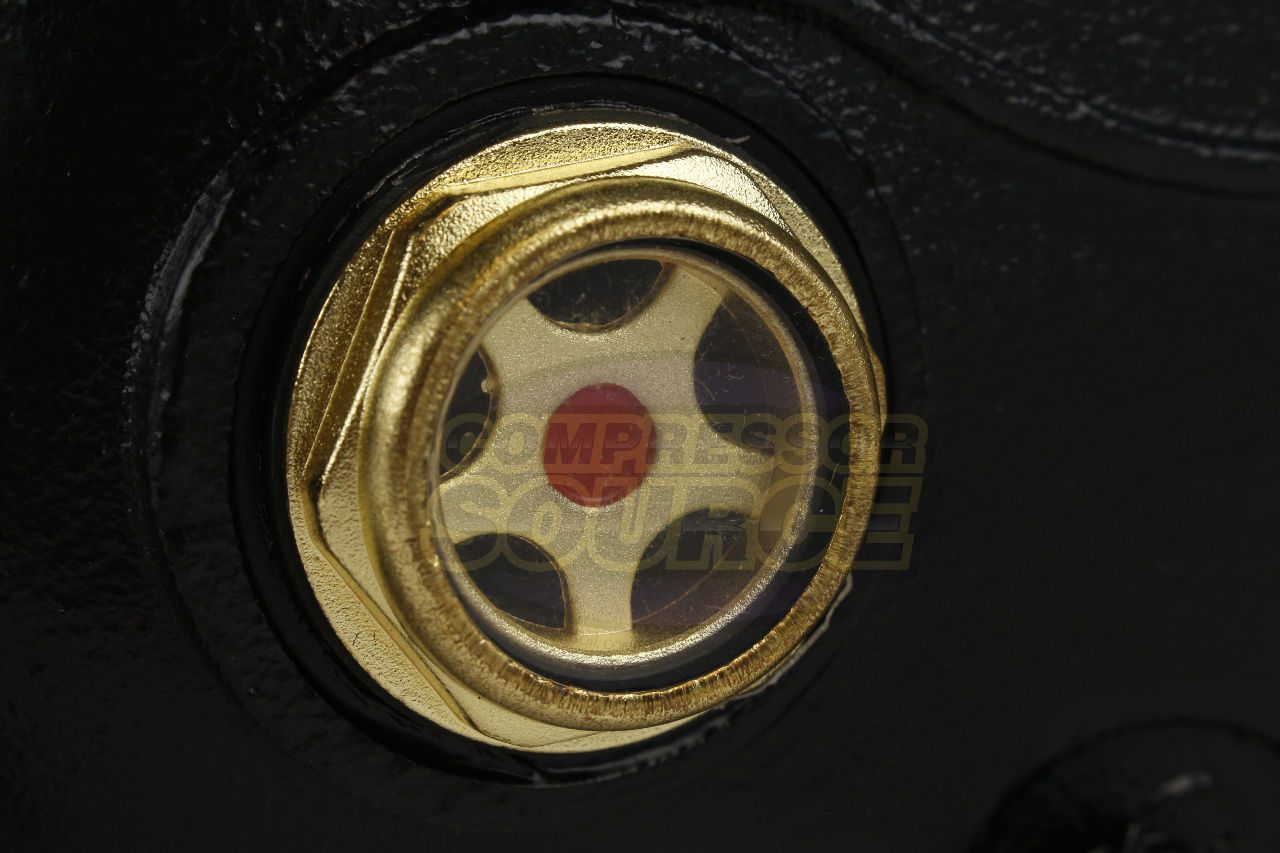

• Easy View Oil Level Sight Glass
• 10.5" Flywheel
• Requires 2 'A Section' Belts (NOT INCLUDED)
• 650-1,000 RPM
• 10-15 SCFM
• 175 Max PSI
• Can be used with Gas or Electric Motor
• Optional Dual Control
• "W" Shaped Cylinders
• Air Filter Enclosures and Elements Included

Mounting Hole Dimensions:

• Side to Side (Center to Center): 8-3/4"
• Front to Back (Center to Center): 5-7/8"
