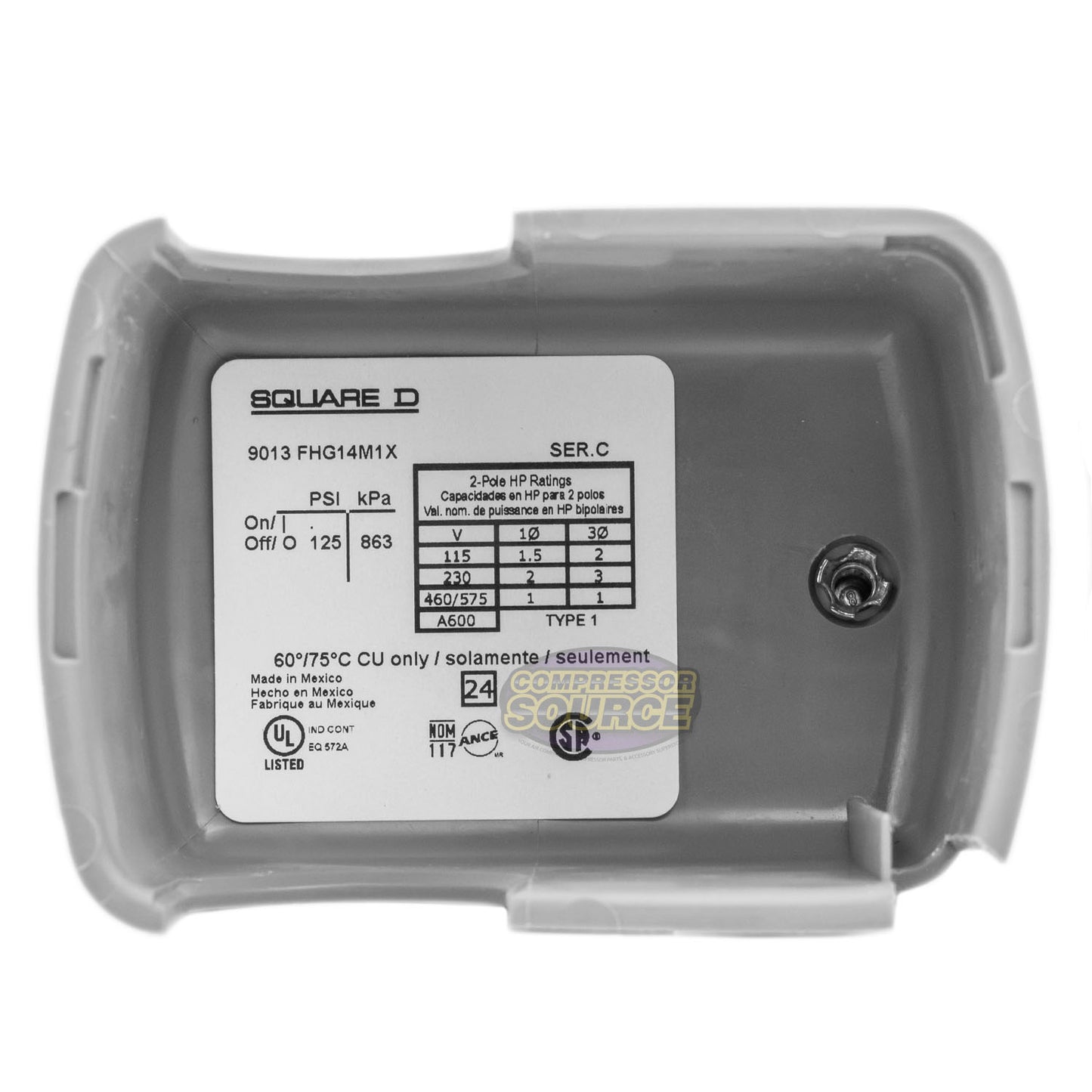

SQUARE D 4 Port 95-125 PSI Air Compressor Pressure Switch 9013FHG14J52M1X

In stock
SKU: 9013FHG14J52M1X
Regular price $72.95

Brand new Square D brand Pumptrol 4 port air compressor pressure switch model 9013FHG14J52M1X 95-125 PSI with unloader control valve and On / Off switch. This pressure switch is designed for a single stage air compressor pumping up to 125 PSI but can be adjusted anywhere from 70-150 PSI. This switch features a built in On / Off metal lever and also a unloader located on the bottom of the switch. The unloader is used to unload head pressure off the compressor pump for a load free start up. If your compressor does not require a unloader valve on the pressure switch you can leave it not hooked up and the switch will still function properly. This is an authentic Square D brand pressure switch, for more specifications see below.

Specifications:

• Brand: Square D Pumptrol
• Model: 9013FHG14J52M1X

• Number of Pressure Sensing Connection Ports: Four 1/4" Female NPT (Note: 1/4" NPT Measures About 1/2" In Diameter)

• Unloader Connection Port: 1/4" Compression Which Accepts 1/4" Outside Diameter Copper Or High Pressure Tubing

• Preset On Pressure: 95 PSI
• Preset Off Pressure:125 PSI
• Differential: 30 PSI
• Can Be Used With Single Or Three Phase
• Can Be Used With 110 - 575 Volts Depending On Amperage And Phase
• Good Up To 15 Amps Of Continuous Current.

(If being used with a magnetic starter the amperage does not matter since all the main power is going through the starter not the pressure switch.)
