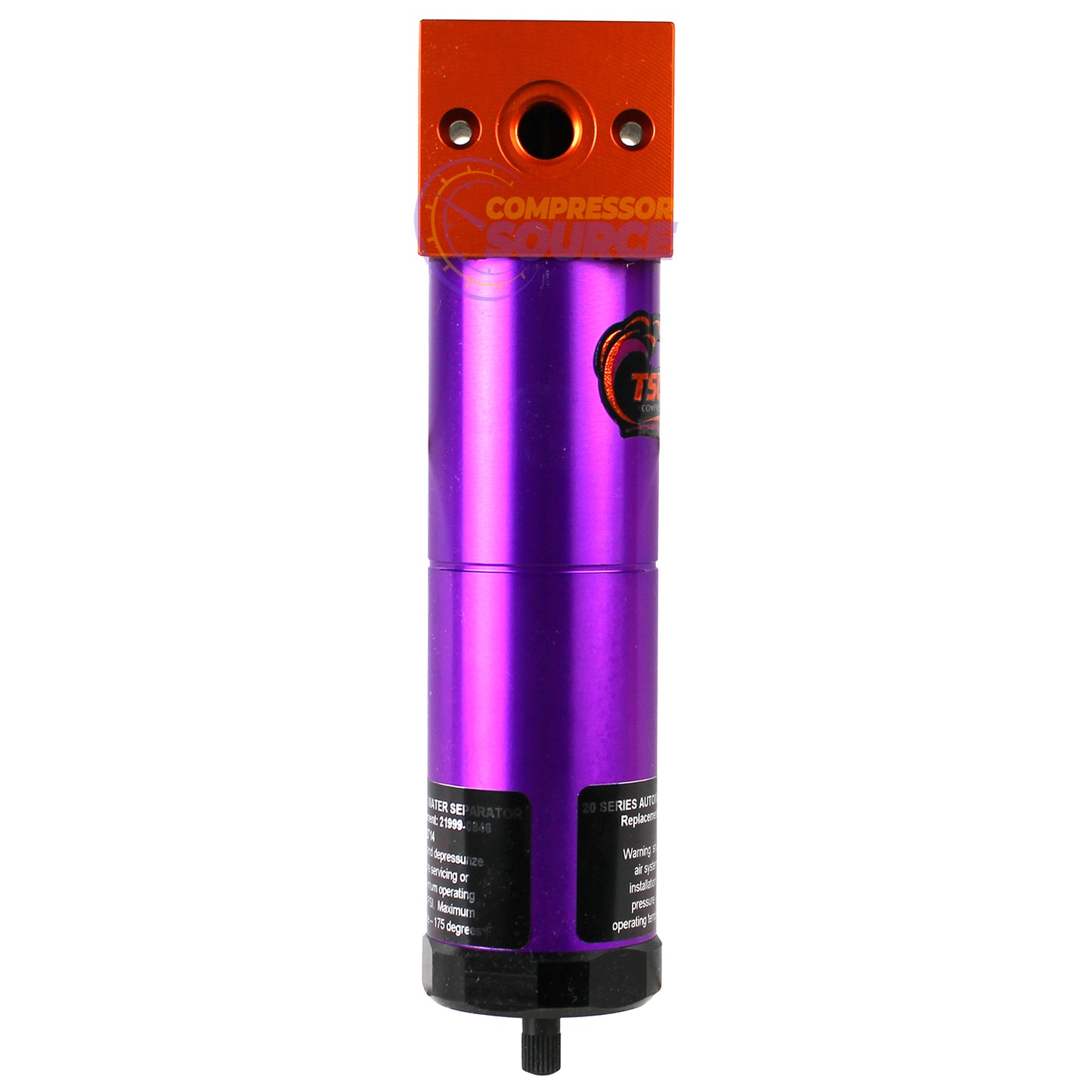

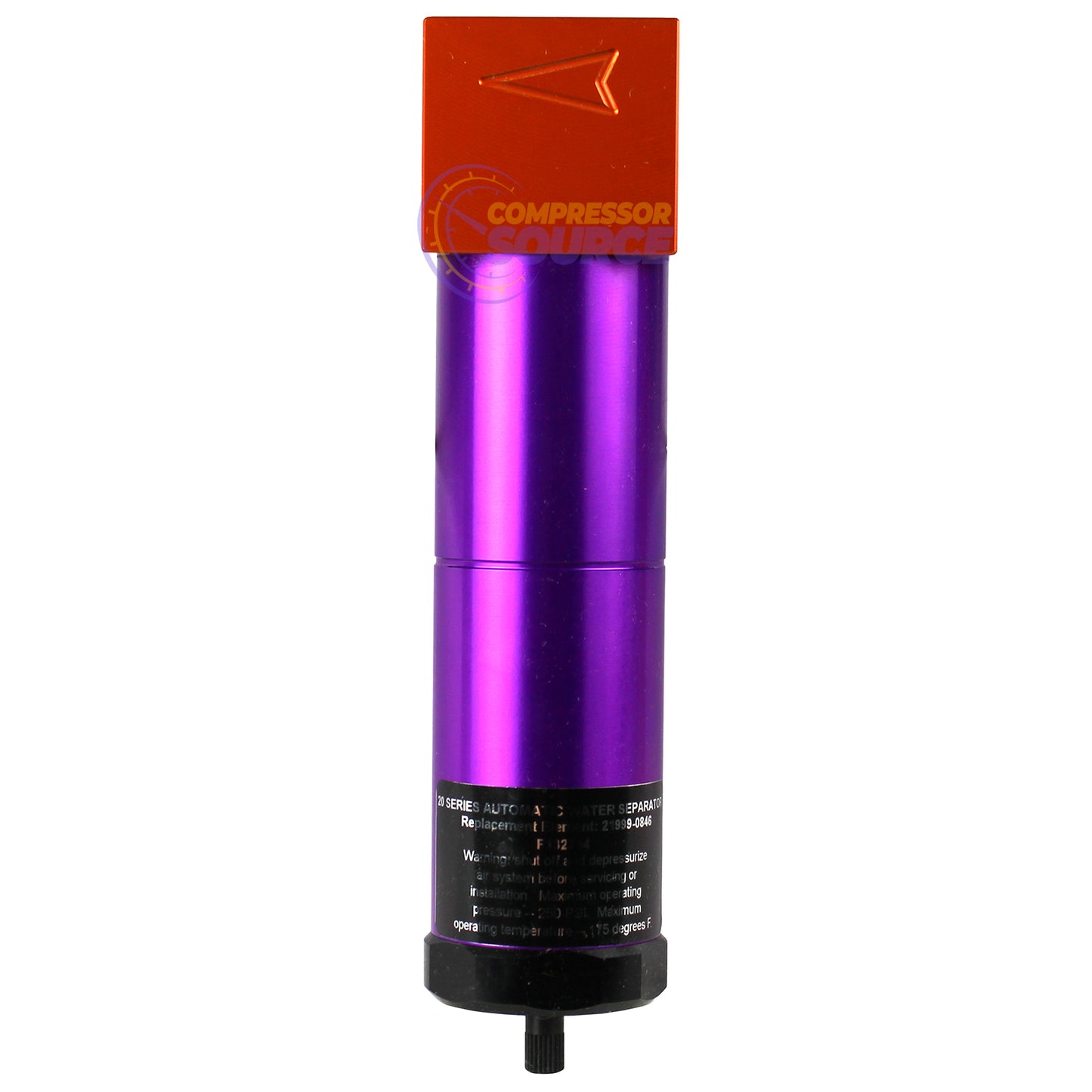

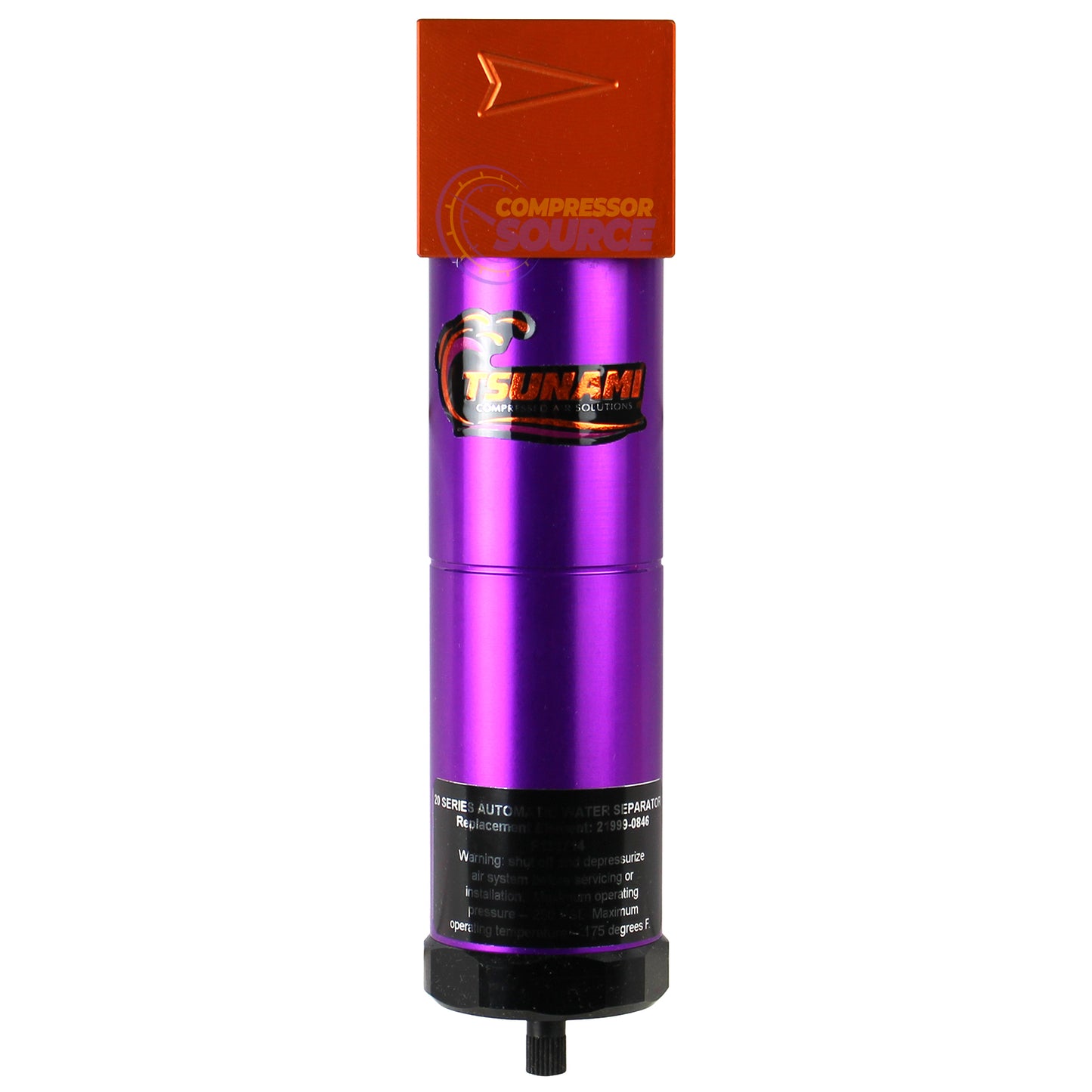

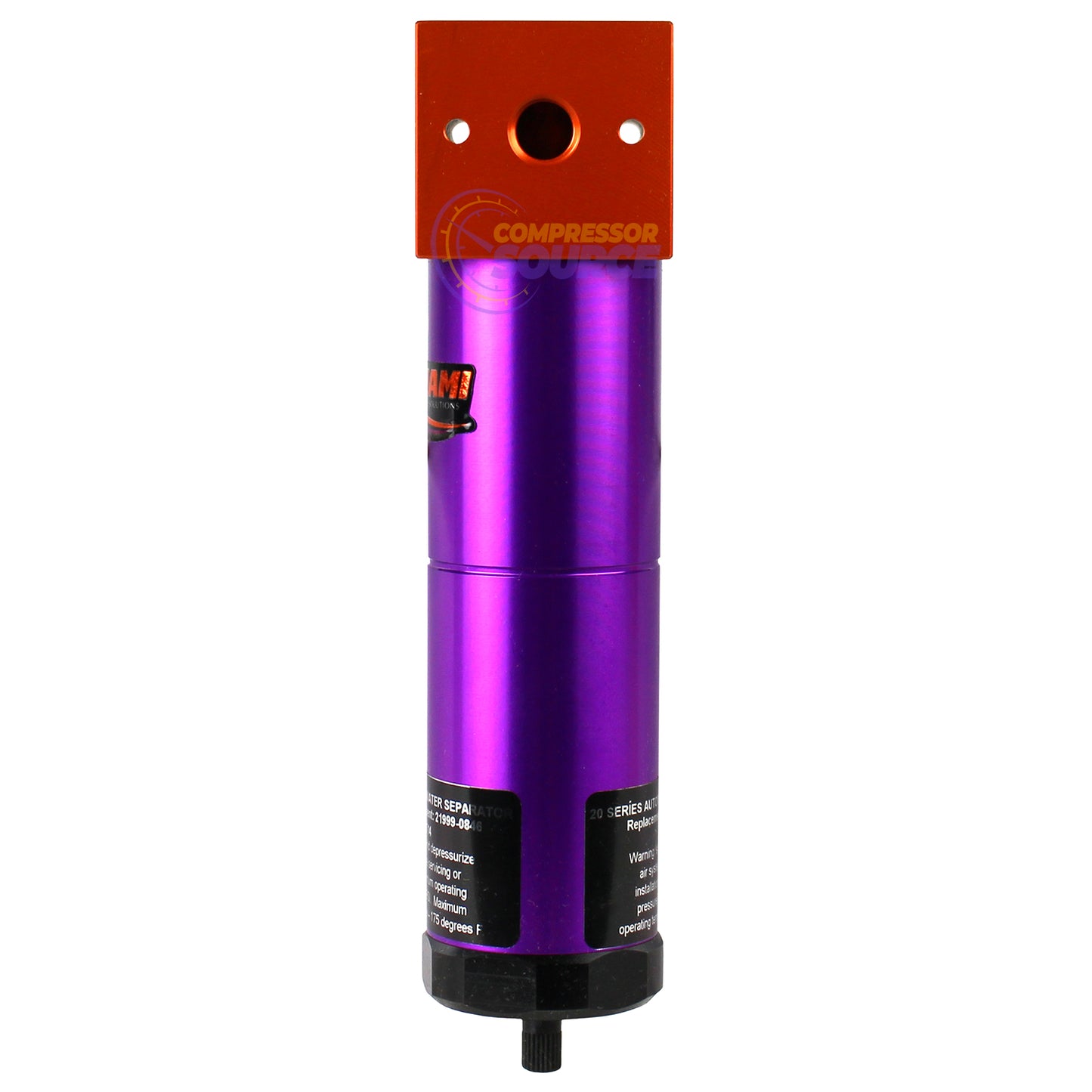

Tsunami 1/4" Air Moisture Water Separator w/ Float Drain 20 Series 21999-0390
Regular price
$190.80
Made in USA
Tsunami 1/4" NPT Air Moisture Water Separator with Float Drain, 20 Series 21999-0390
The Tsunami 20 Series water separator removes bulk water, oil, and particulate down to 10 micron from compressed air lines flowing up to 20 CFM — the right size for a single air-tool drop, a small paint station, or a bench-top application. Air accelerates through an inner tube, reverses direction, and passes through orifice baffles and a stainless steel mesh element so liquid drops out of the air stream before it reaches your tool. The automatic float drain ejects collected liquid without any attention from the operator.
Built like an industrial tool, not a throwaway:
- Filter head machined from 6061 aircraft aluminum, anodized inside and out against corrosion
- 250 PSI maximum pressure, 175°F maximum temperature

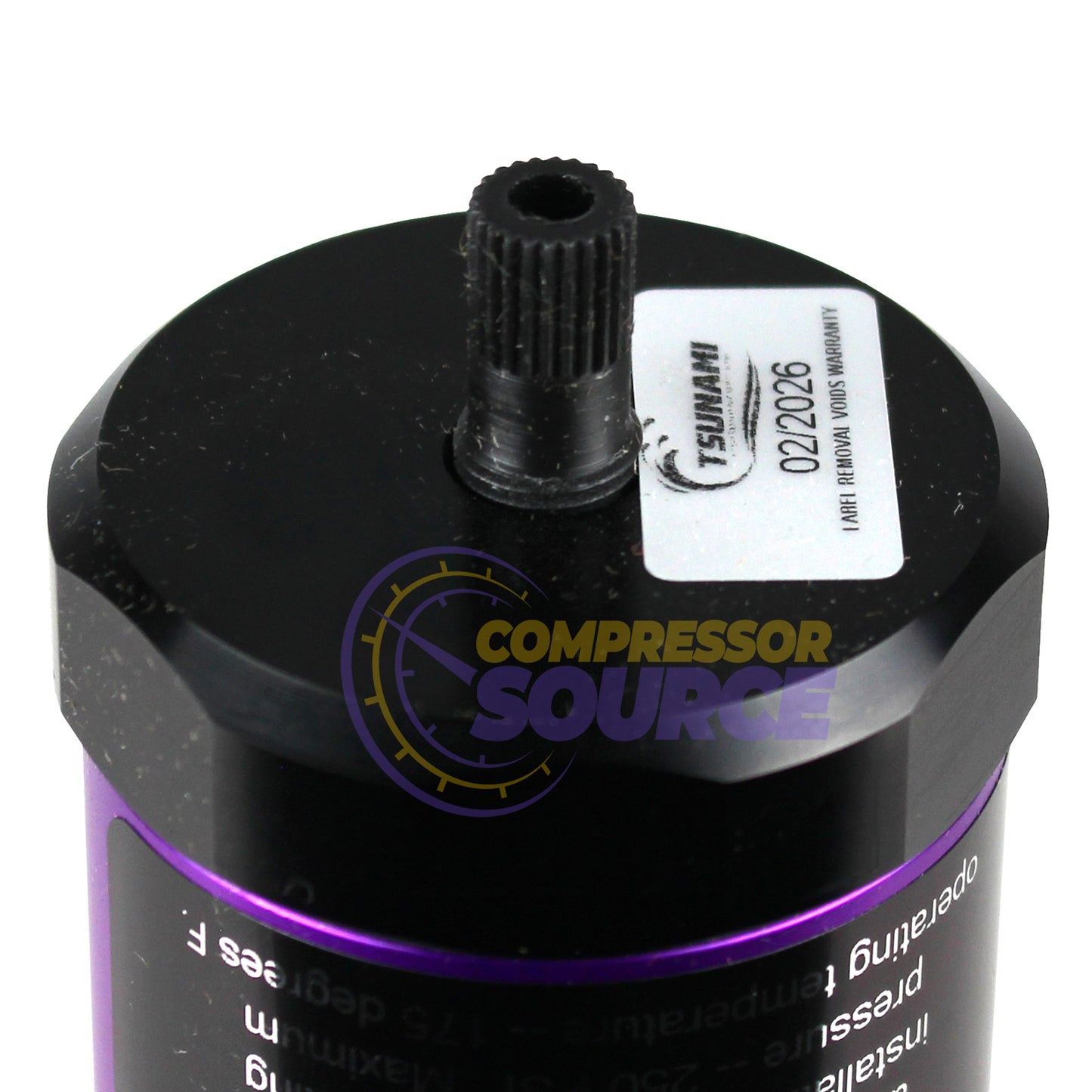

- Automatic float drain standard; removable bottom cap for easy service
- Rebuildable with service kit 21999-0846 — no need to replace the housing
- Made in Monticello, Minnesota by ISO 9001:2015-certified Suburban Manufacturing
Install close to the point of use, as far from the compressor as practical — cooler air gives up its moisture, and the separator catches it before your equipment does.
Documents
Overview
| Product family | Water Separator |
|---|---|
| Series | 20 Series |
| Max flow Size filtration at or above the CFM your compressor delivers. Undersized filters pass moisture and contaminants downstream. | 20 CFM |
| Port size | 1/4" NPT |
| Drain Automatic drains eject collected liquid without operator attention — recommended over manual drains, which only work if someone remembers to open them. | Automatic float drain |
| Max pressure | 250 PSI |
| Max temperature | 175 °F |
| Country of origin Where this product is manufactured, per the manufacturer / supplier documentation. | United States |
Filtration & Service
| Filtration rating Water separators remove bulk water and particulate (stage 1). Coalescing filters remove fine oil aerosols (stage 2). Activated carbon removes oil vapor, odor, and taste (stage 3). | Bulk water & particulate to 10 micron |
|---|---|
| Construction | Filter head machined from 6061 aircraft aluminum, anodized inside & out |
| Service kit Tsunami filters are rebuildable — a drop-in kit restores like-new performance without replacing the housing. | 21999-0846 |
Physical & Application
| Weight | 1.5 lb |
|---|---|
| Dimensions (H × W × D) | 8½" × 2" × 2" |
| Application notes | Sized for single-tool drops up to 20 CFM. Install close to the point of use, as far from the compressor as practical. |
Why Tsunami? Premium vs. Standard Filtration
| Standard / economy filter | Tsunami | |
|---|---|---|
| Body | Die-cast housing, polycarbonate bowl | Machined 6061 aircraft aluminum, anodized inside & out |
| Max pressure | Typically 150 PSI | 250 PSI rated |
| Draining | Manual petcock — works only if you remember | Automatic float, electronic, or pneumatic drain |
| Serviceability | Disposable — replace the whole unit | Rebuildable with drop-in service kits |
| Duty | Intermittent / light shop use | Continuous industrial duty, surge-tolerant oversized tubes |
| Made in | Imported | Monticello, MN — ISO 9001:2015 certified manufacturer |
