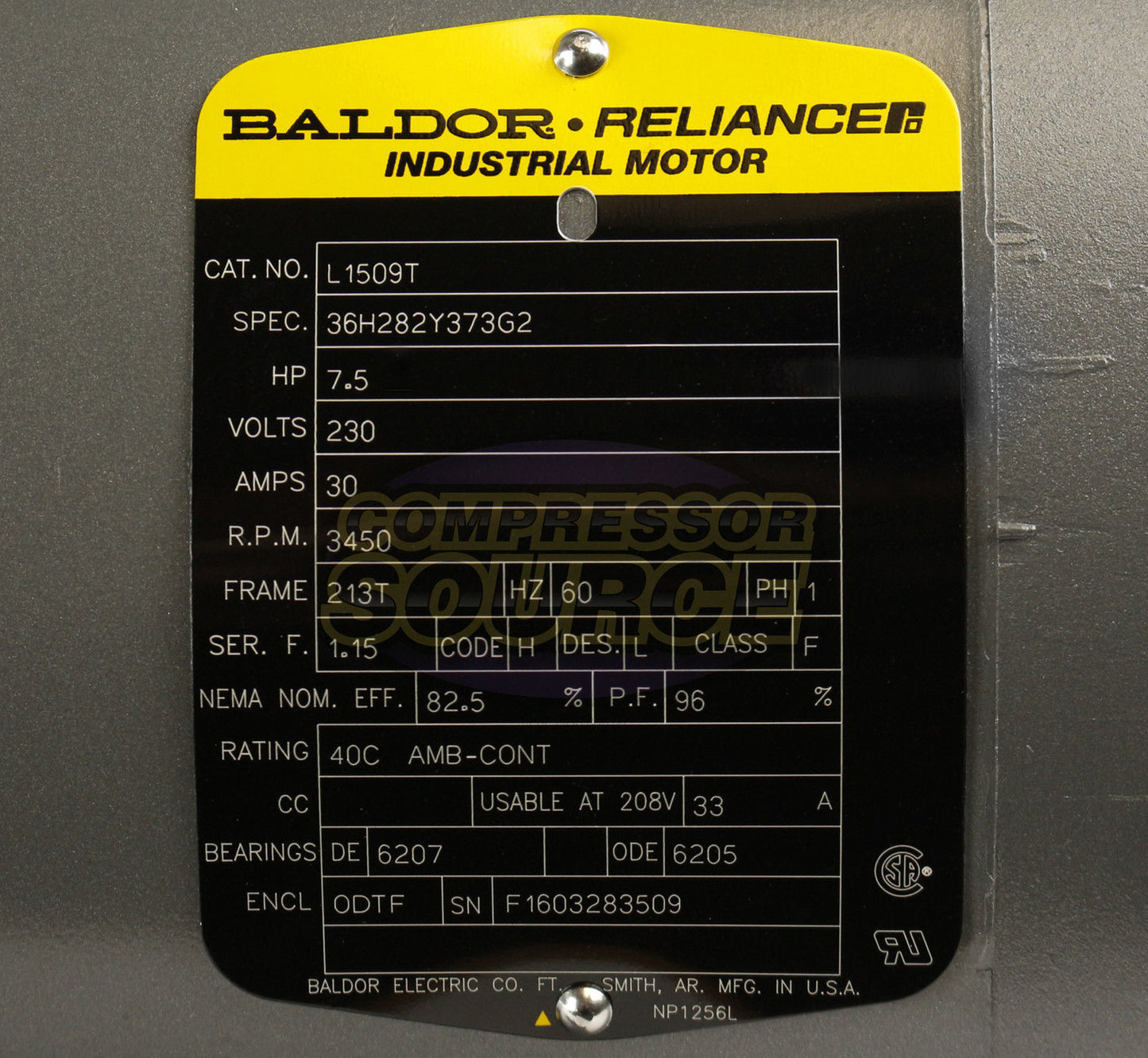

The Baldor L1509T is a 7.5-horsepower single-phase AC electric motor rated for 3450 RPM, running on 230V at 60Hz, and is designed for use with air compressors, fans, blowers, pumps, and other belt-driven systems where moisture and dust exposure is limited. It features a 213T mounting frame, an open drip-proof tandem fan enclosure, providing added cooling over standard open enclosure motors, and is rated for continuous duty.

Features & Specifications:

• Output: 7.5 HP
• Phase: 1 Phase
• Frame: 213T (Also bolts to a 215T frame)
• Speed: 3450 RPM
• Shaft Rotation: Reversible (CW & CCW)
• Rated Voltage: 230 Volts (Usable at 208V)
• Frequency: 60 Hz
• Duty Rating: Continuous
• Insulation Class: F
• Enclosure: Open-Drip Proof Tandem Fan (ODTF)
• Shaft Diameter: 1-3/8" Keyed
• Shaft Length: 3-3/8"
• Amps: 30
• Shipping Weight: 98 lbs
• Made in USA
• Spec.: 36H282Y373G2
• UPC: 781568101698
• Nominal Efficiency: 82.5%
• Manufacturer Warranty: Baldor general-purpose AC motor warranty covers defects in workmanship and materials for 18 months from installation or 24 months from the manufacture date through your local Baldor-Reliance and ABB service center

This item only ships to the 48 continental United States. See the L1509T spec sheet.
