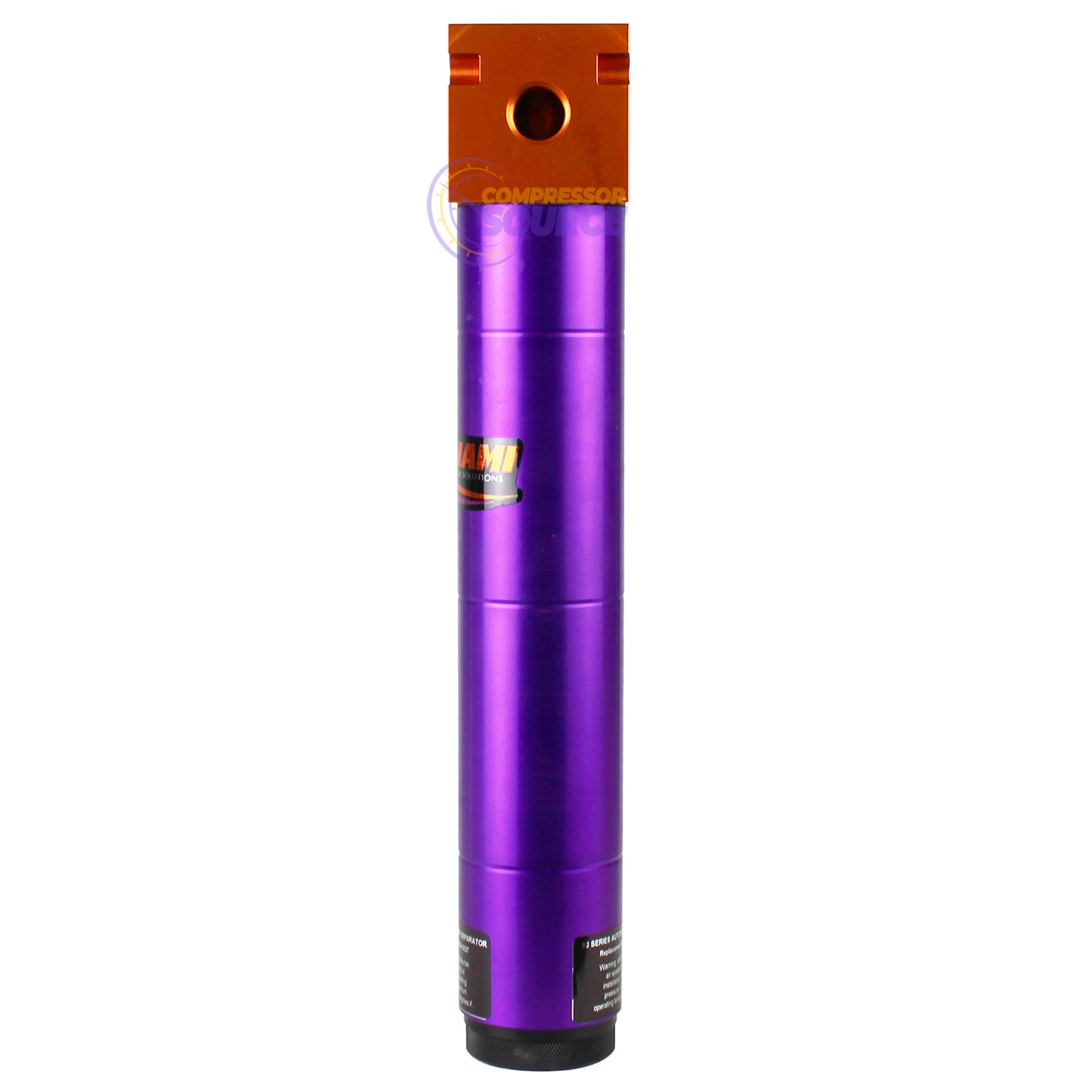

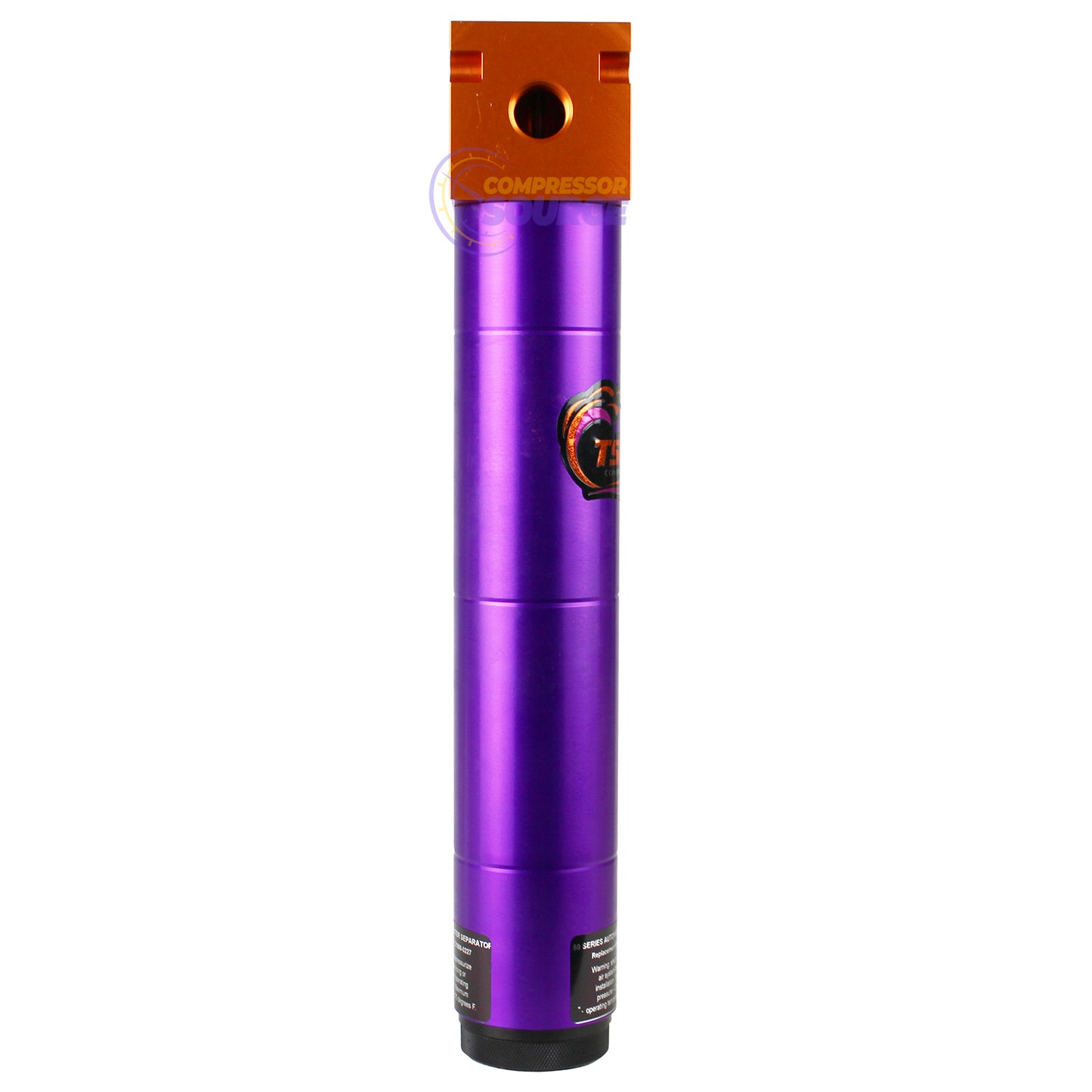

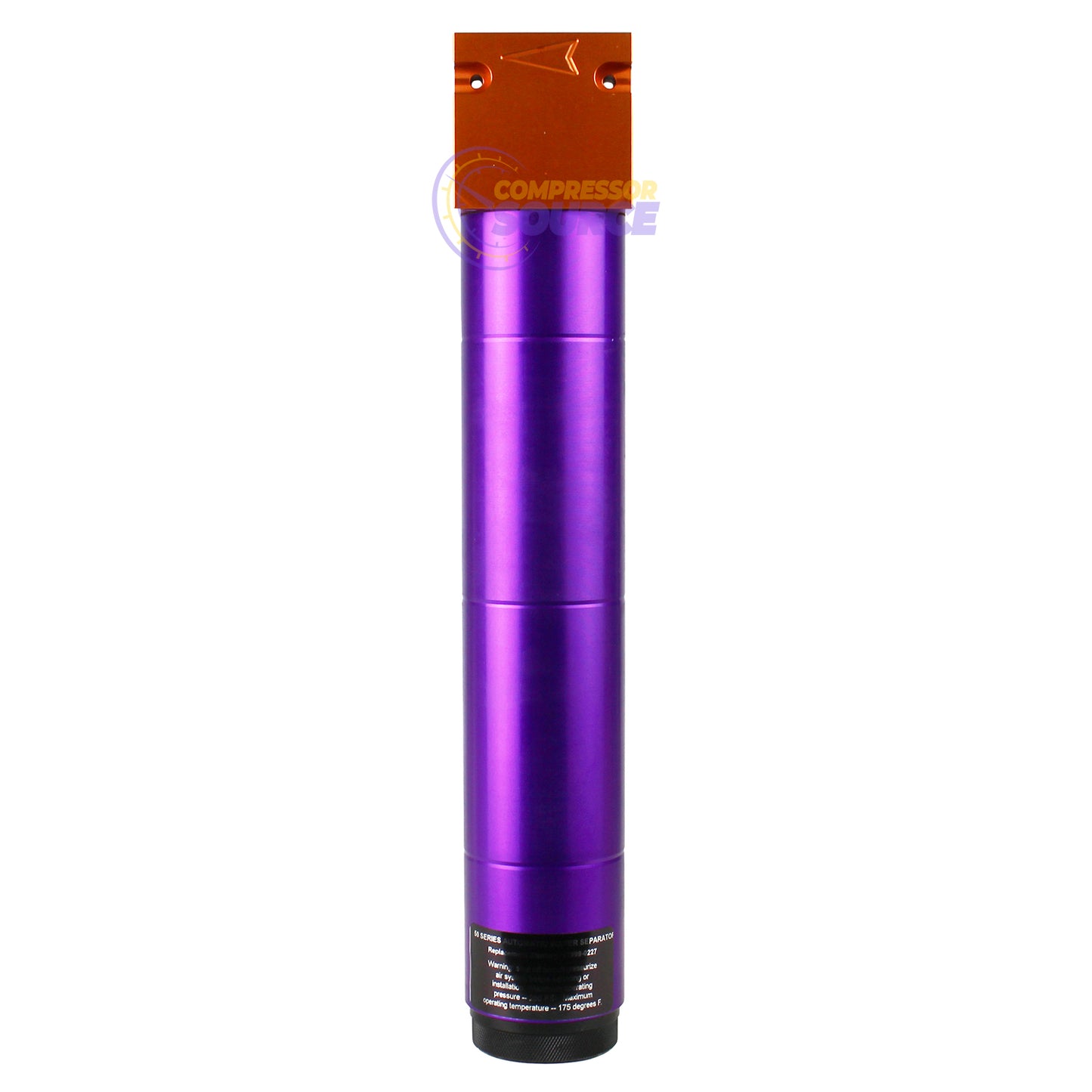

Tsunami 1/2" Air Moisture Filter Water Separator with Float Drain 21999-0131
Regular price
$303.30
Made in USA
Tsunami 1/2" NPT Air Moisture Filter Water Separator with Float Drain 21999-0131
The Tsunami 50 Series water separator removes bulk water — up to one quart per minute — plus oil and particulate down to 10 micron from compressed air lines flowing up to 50 CFM. Air accelerates down an inner tube, reverses 180°, then passes through orifice baffles and a stainless steel mesh element, so velocity, gravity, and centrifugal force all work together to drop liquid out of the air stream. The automatic float drain ejects collected liquid on its own — there is no petcock to remember.
Built like an industrial tool, not a throwaway:
- Filter head machined from 6061 aircraft aluminum, anodized inside and out against corrosion
- Oversized tube length handles the surges that overwhelm ordinary filters
- 250 PSI maximum pressure, 175°F maximum temperature

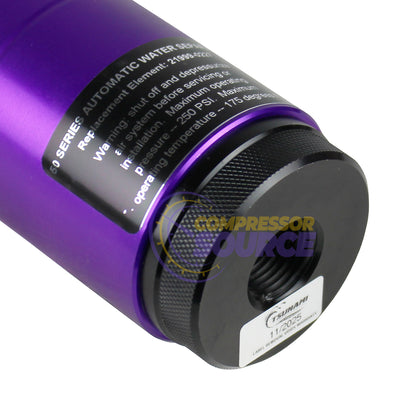

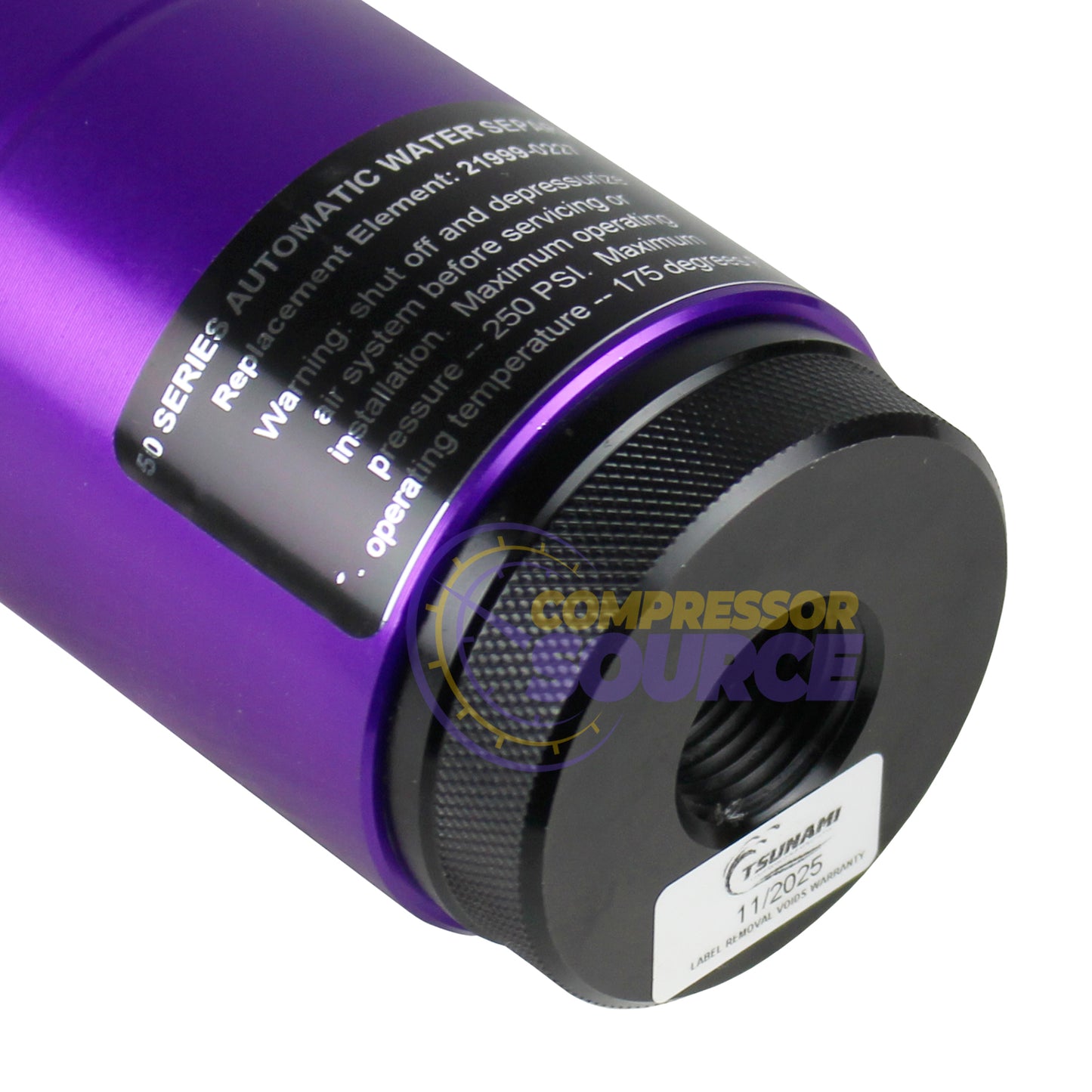

- Automatic float drain standard; removable bottom cap for easy service
- Rebuildable — service kit 21999-0227 restores like-new performance without replacing the housing
- Made in Monticello, Minnesota by ISO 9001:2015-certified Suburban Manufacturing
Install at air-tool drops and ahead of air dryers as a pre-filter — filtration works best far from the compressor, close to the point of use. Pair with the 50 Series oil coalescing filter for paint, plasma cutting, and other oil-sensitive work.
Documents
Overview
| Product family | Water Separator |
|---|---|
| Series | 50 Series |
| Max flow Size filtration at or above the CFM your compressor delivers. Undersized filters pass moisture and contaminants downstream. | 50 CFM |
| Port size | 1/2" NPT |
| Drain Automatic drains eject collected liquid without operator attention — recommended over manual drains, which only work if someone remembers to open them. | Automatic float drain |
| Max pressure | 250 PSI |
| Max temperature | 175 °F |
| Country of origin Where this product is manufactured, per the manufacturer / supplier documentation. | United States |
Filtration & Service
| Filtration rating Water separators remove bulk water and particulate (stage 1). Coalescing filters remove fine oil aerosols (stage 2). Activated carbon removes oil vapor, odor, and taste (stage 3). | Bulk water & particulate to 10 micron — removes up to 1 quart of water per minute |
|---|---|
| Construction | Filter head machined from 6061 aircraft aluminum, anodized inside & out |
| Service interval | Stainless mesh element — rebuild with service kit 21999-0227 as needed |
| Service kit Tsunami filters are rebuildable — a drop-in kit restores like-new performance without replacing the housing. | 21999-0227 |
Physical & Application
| Weight | 3.5 lb |
|---|---|
| Dimensions (H × W × D) | 14½" × 2½" × 2½" |
| Application notes | Install at air-tool drops and ahead of air dryers as a pre-filter. Filtration works best as far from the compressor as possible, close to the point of use. |
Why Tsunami? Premium vs. Standard Filtration
| Standard / economy filter | Tsunami | |
|---|---|---|
| Body | Die-cast housing, polycarbonate bowl | Machined 6061 aircraft aluminum, anodized inside & out |
| Max pressure | Typically 150 PSI | 250 PSI rated |
| Draining | Manual petcock — works only if you remember | Automatic float, electronic, or pneumatic drain |
| Serviceability | Disposable — replace the whole unit | Rebuildable with drop-in service kits |
| Duty | Intermittent / light shop use | Continuous industrial duty, surge-tolerant oversized tubes |
| Made in | Imported | Monticello, MN — ISO 9001:2015 certified manufacturer |
